Configuring the device
5.15 Displaying information about the HMI device
Basic Panels 2nd Generation
62 Operating Instructions, 10/2016, A5E33293231-AB
5.15
Displaying information about the HMI device
1.

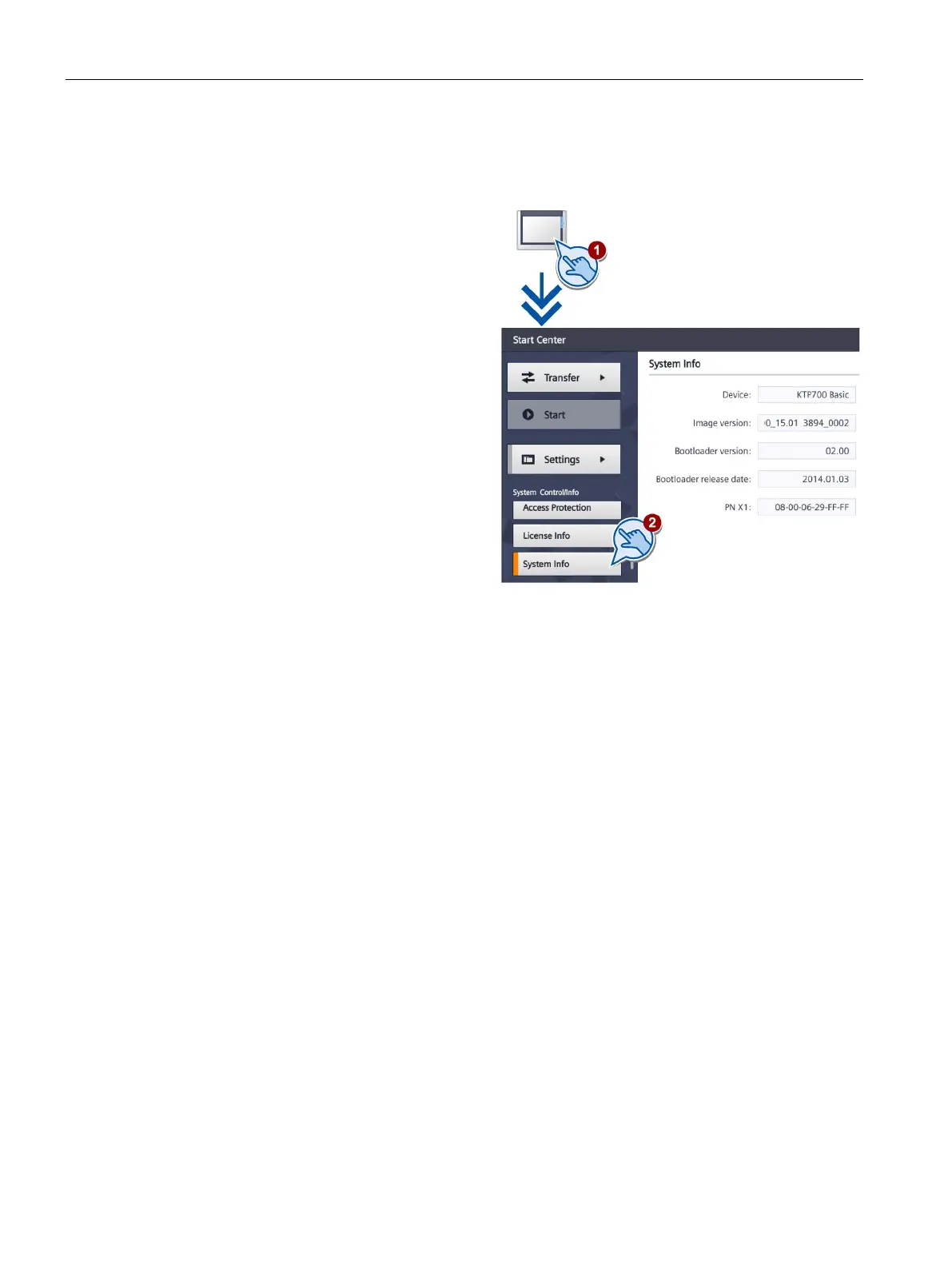

Touch the "System Control/Info" icon.
2.
Shift the bookmarks up in the
navigation area.
3.
Change to the "System Info" tab.
The "System Info" tab is used to
display specific information on the
HMI device. You will need this
information when contacting
Technical Support.
– "Device": HMI device name
– "Image version": Version of
the HMI device image
– "Bootloader version": Version
of the bootloader
– "Bootloader release date":
Release date of the boot loader
– "PN X1": MAC address, only for
HMI devices with PROFINET
interface

Siemens SIMATIC HMI KTP400 Basic Specifications

General

Display Type	TFT LCD
Resolution	480 x 272 pixels
Touchscreen	Yes
Backlighting	LED
Color Depth	16-bit
Power Supply	24 V DC
Mounting	Panel mounting
Operating Temperature	0 to 50 °C
Display Size	4.3 inches
Display Colors	65K colors
Power Consumption	Approx. 3.6 W
Protection Rating	IP65 (front)
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
Interfaces	PROFINET
