Operating the device
4.3 The screen keyboards
Basic Panels 2nd Generation
42 Operating Instructions, 10/2016, A5E33293231-AB
4.3
The screen keyboards
A screen keyboard appears on the HMI device touch screen when you touch an operating
element that requires input. Depending on the type of operating element and the required
input, this may be an alphanumerical or a numerical keyboard.
Both keyboards are available in landscape and in portrait.

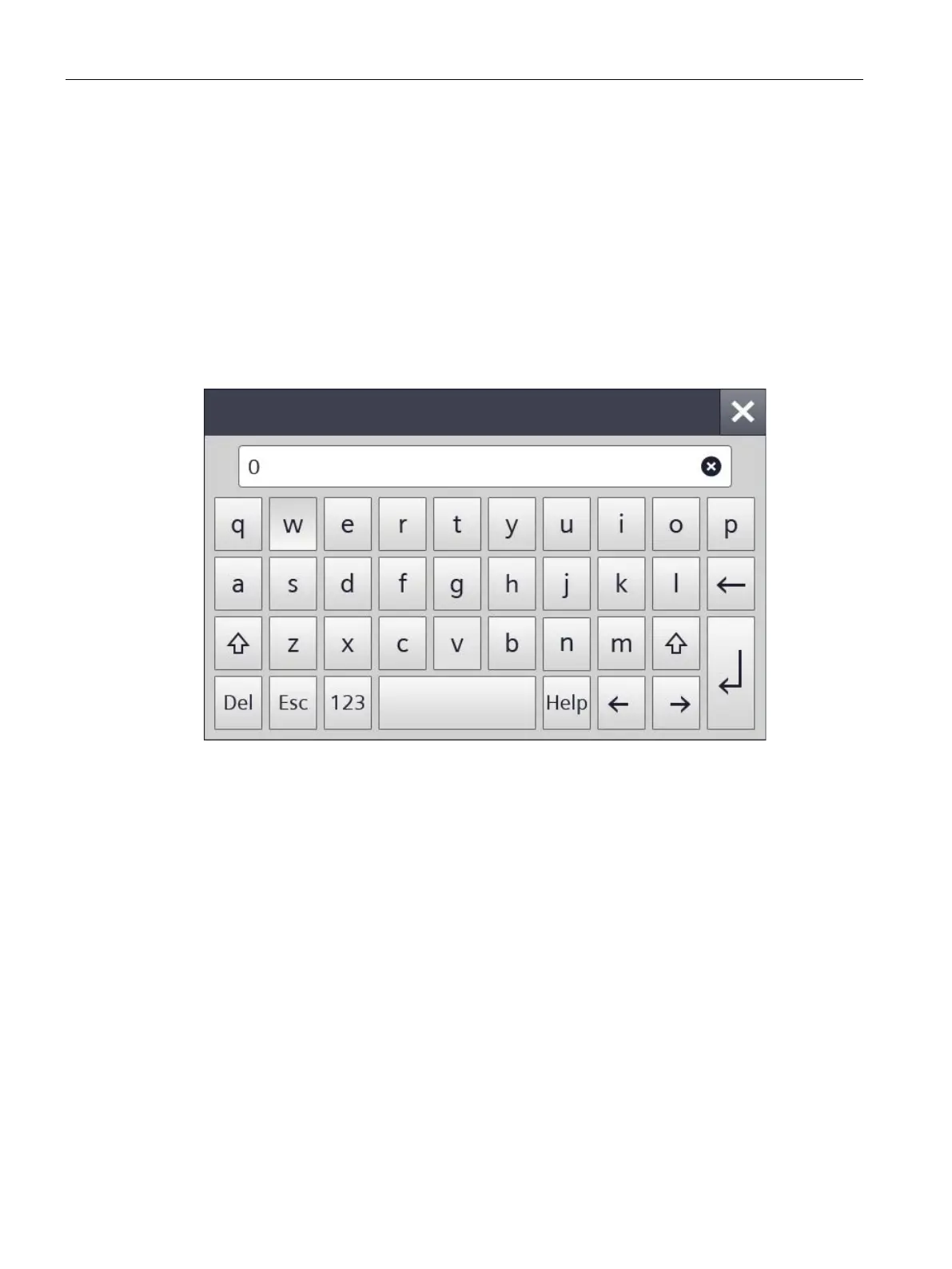

Alphanumerical screen keyboard
For HMI devices in landscape, the alphanumerical keyboard has the assignment of a
computer keyboard in US layout ("QWERTY"). You can set the keyboard to capital letters.

Siemens SIMATIC HMI KTP400 Basic Specifications

General

Display Type	TFT LCD
Resolution	480 x 272 pixels
Touchscreen	Yes
Backlighting	LED
Color Depth	16-bit
Power Supply	24 V DC
Mounting	Panel mounting
Operating Temperature	0 to 50 °C
Display Size	4.3 inches
Display Colors	65K colors
Power Consumption	Approx. 3.6 W
Protection Rating	IP65 (front)
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
Interfaces	PROFINET
