Configuring the device
5.20 Importing a certificate via USB
Basic Panels 2nd Generation
Operating Instructions, 10/2016, A5E33293231-AB
67
5.20
Importing a certificate via USB
The use of certificates increases the information security of web-based communication, e.g.
communication between a Sm@rtClient and the Sm@rtServer.
Requirement
● A Basic Panel with PROFINET interface and an HMI device image compatible with
WinCC (TIA Portal) V14 or higher.
● A USB memory device with a valid certificate is connected to the Basic Panel.

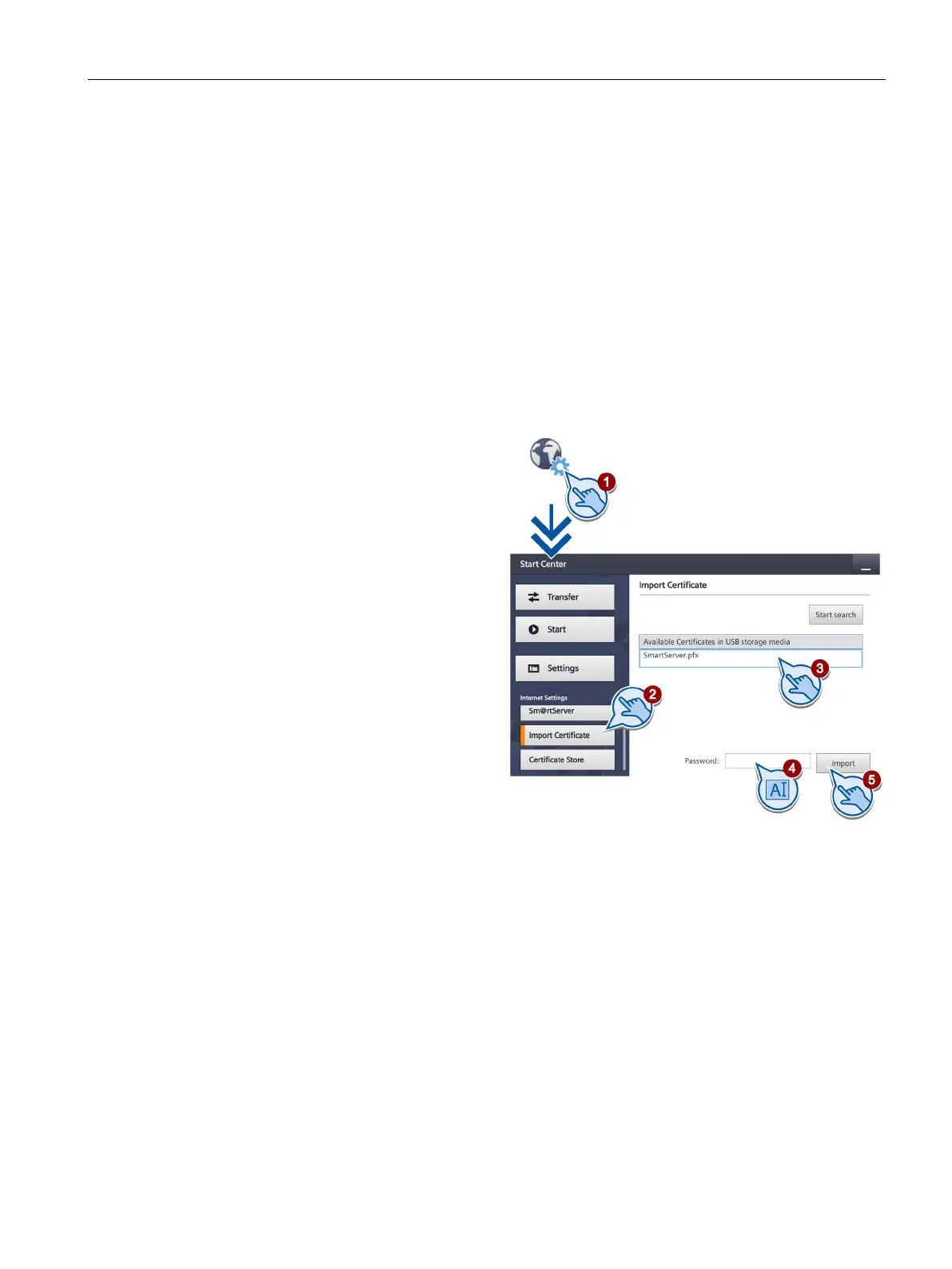

Procedure
1.
Touch the "Internet Settings" icon.
2.
Press the "Import Certificate"
button.
3.
Select the desired certificate.
4.
If the certificate is password-
protected, enter the password for
the certificate under "Password".
5.
Press the "Import" button.

Siemens SIMATIC HMI KTP400 Basic Specifications

General

Display Type	TFT LCD
Resolution	480 x 272 pixels
Touchscreen	Yes
Backlighting	LED
Color Depth	16-bit
Power Supply	24 V DC
Mounting	Panel mounting
Operating Temperature	0 to 50 °C
Display Size	4.3 inches
Display Colors	65K colors
Power Consumption	Approx. 3.6 W
Protection Rating	IP65 (front)
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
Interfaces	PROFINET
