Siemens SIMATIC HMI KTP400 Basic User Manual

Mounting and connecting
3.4 Switching on and testing the HMI device
Basic Panels 2nd Generation
Operating Instructions, 10/2016, A5E33293231-AB
37

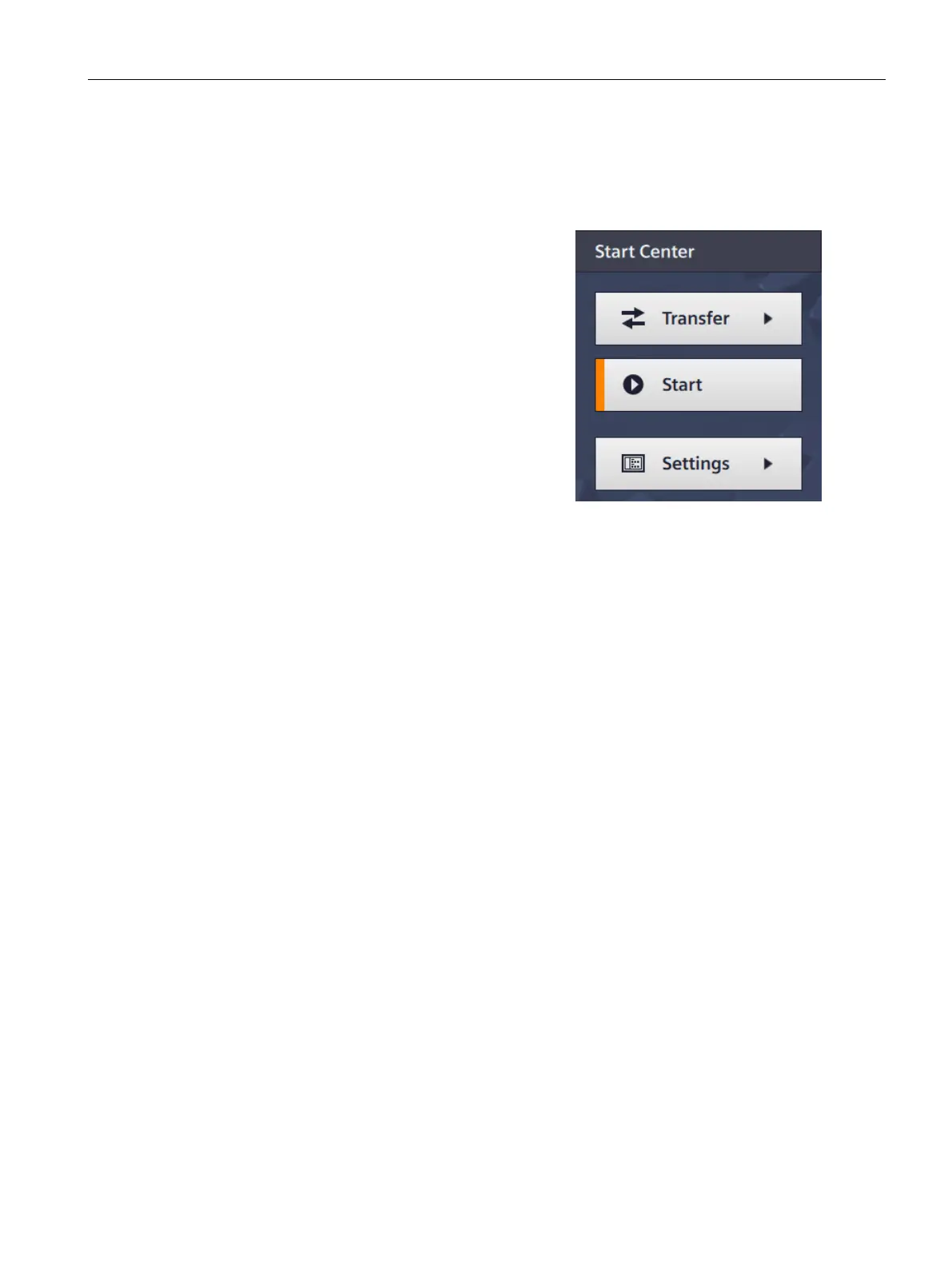

The Start Center opens after the operating system has started.
You operate the Start Center using the buttons on the touch screen or a connected mouse or
keyboard.
•
Press the "Transfer" button to set the
HMI device to "Transfer" mode.
The "Transfer" mode can only be
activated when at least one data
channel has been enabled for the
transfer.
•
Press the "Start" button to start the
project on the HMI device.
•
Press the "Settings" button to start
the "Settings" page of the Start
Center.
You can change various settings on
this page, for example, the transfer
settings.
Switching off the HMI device
1. Close any active projects on the HMI device.
2. Switch off the HMI device. You have the following shutdown options:
– Switch off the power supply.
– Unplug the power supply connector from the HMI device.

Siemens SIMATIC HMI KTP400 Basic Specifications

General

Display Type	TFT LCD
Resolution	480 x 272 pixels
Touchscreen	Yes
Backlighting	LED
Color Depth	16-bit
Power Supply	24 V DC
Mounting	Panel mounting
Operating Temperature	0 to 50 °C
Display Size	4.3 inches
Display Colors	65K colors
Power Consumption	Approx. 3.6 W
Protection Rating	IP65 (front)
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
Interfaces	PROFINET
