Mounting and connecting the device
3.2 Mounting the device
Comfort Panels
Operating Instructions, 08/2018, A5E36770603-AC
43
Note
Risk of guaranteed degree of protection not being met in case mounting seal is damaged
If the mounting seal is damaged or protrudes beyond the HMI device, the degree of
protection is not ensured.
Do not install the HMI device in this case and contact your Siemens representative.
Note
Installation of the HMI device
Always mount the HMI device according to the instructions in this manual.

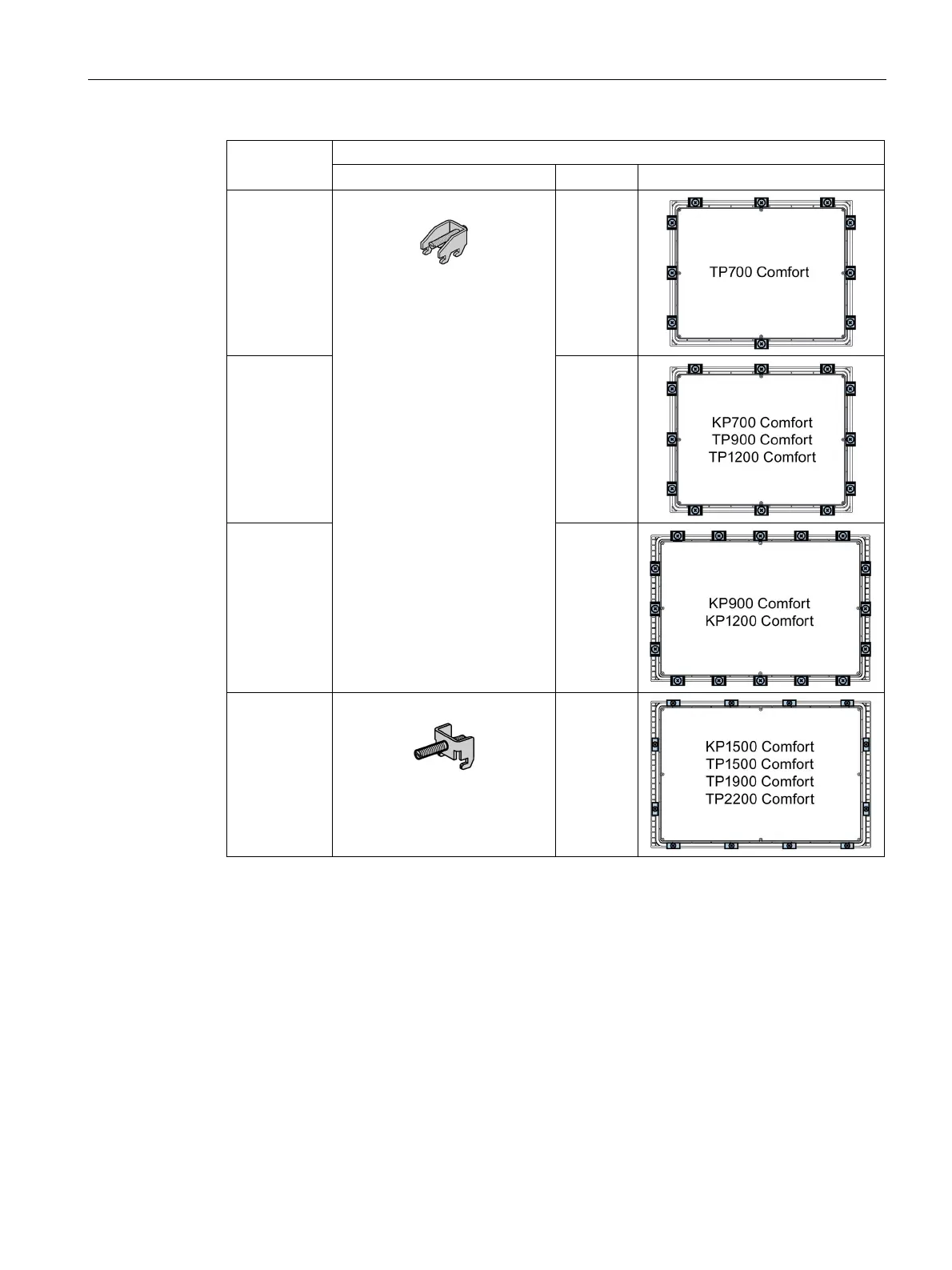

Mounting clips for 4" models:
for 7", 9", and 12" models:
Mounting clips for 15", 19" and 22" models:
Proceed as follows:
1. Insert the HMI device into the mounting cutout from the front. The figure shows a
KP700 Comfort as an example.
2. Insert the mounting clip into the cutout provided on the HMI device.
