Mounting and connecting the device
3.4 Removing the device
Comfort Panels
60 Operating Instructions, 08/2018, A5E36770603-AC
The HMI device is generally removed in the reverse order used for installing and connecting.
Proceed as follows:
1. If a project is running on the HMI device, close the project with the HMI device
configured for this purpose. Wait for the Start Center to be displayed.
2. Switch off power to the HMI device.
3. When you use the HMI device in a hazardous area, make sure that one of the two
following requirements is met: The area is no longer hazardous or the device and its
plug-in connections are de-energized.

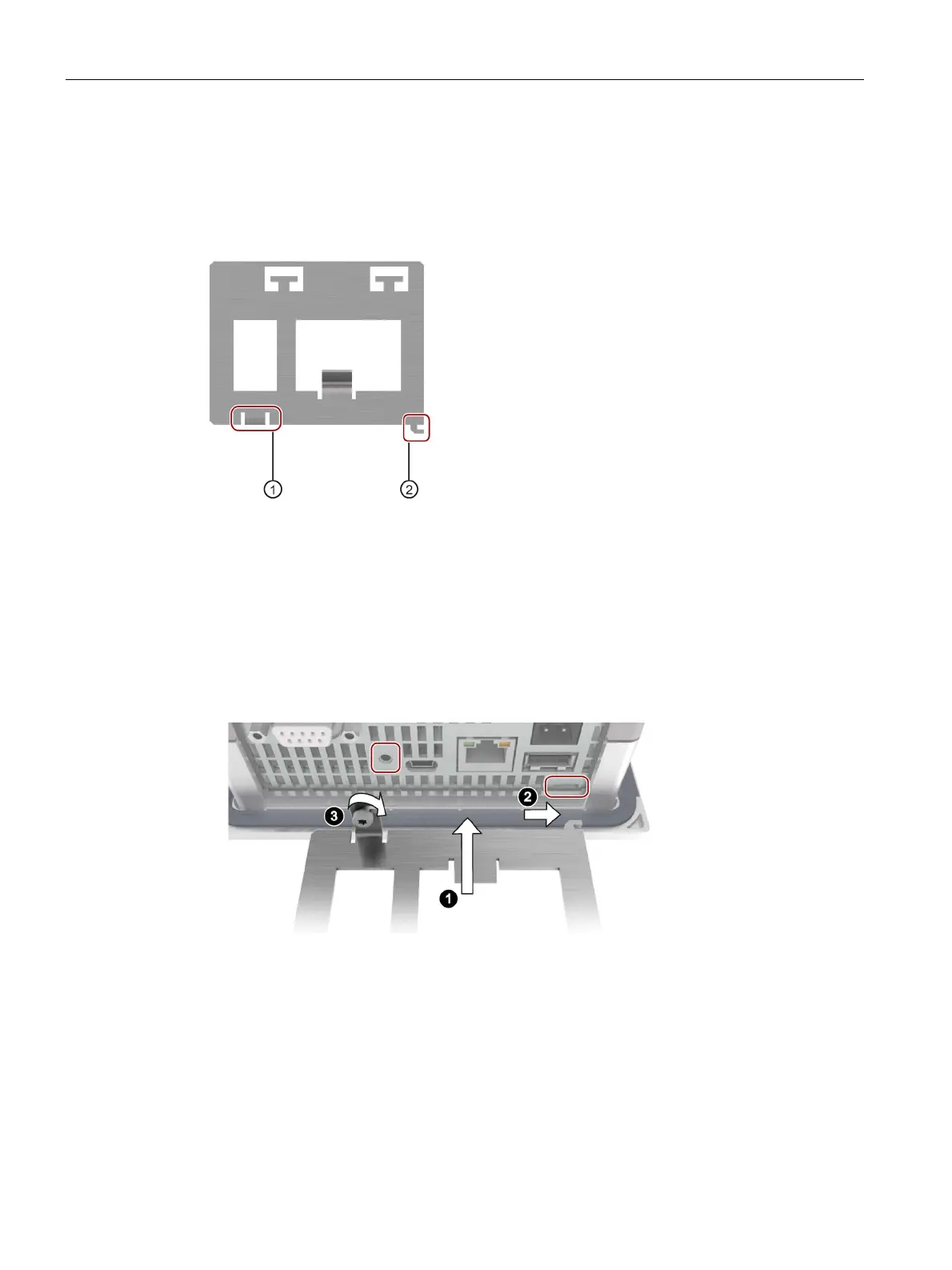

4. Remove all cable ties on the HMI device used for strain relief.
5. Remove all plug-in connectors and the equipotential bonding cable from the HMI device.
6. Secure the HMI device so that it cannot fall out of the mounting cutout.
7. Loosen the screws of the mounting clips and remove all mounting clips.
8. Take the HMI device out of the mounting cutout.
Mounting the device (Page 41)
Connecting the device (Page 44)
