S5-115F Manual Blocks
If you want selective sampling, proceed as follows:
Set the function selector switch on the 460 AI to selective sampling.
Call FB 250 ANEI with Parameter EINZ = ”1”.
During coding, FB 250 ANEI will set the output parameters T Bit = ”1”. The result is available
when T Bit = ”0”.
If you want to scan the T Bit parameter, call FB 250 ANEI with EINZ = ”1”.
In the case of programmable controllers with the CPU 942-7UF13:
You cannot activate selective sampling on the relevant AI module as long as T BIT = 1.
Note
Assign different bits to the activity bit when different channels are called. You will
then be able to recognize which channel has been activated for coding.
FB 250 transmits a value XA within a (scaled) range defined by the user. The user defines the
desired range with the ”Upper limit” (OGR) and ”Lower limit” (UGR) parameters.

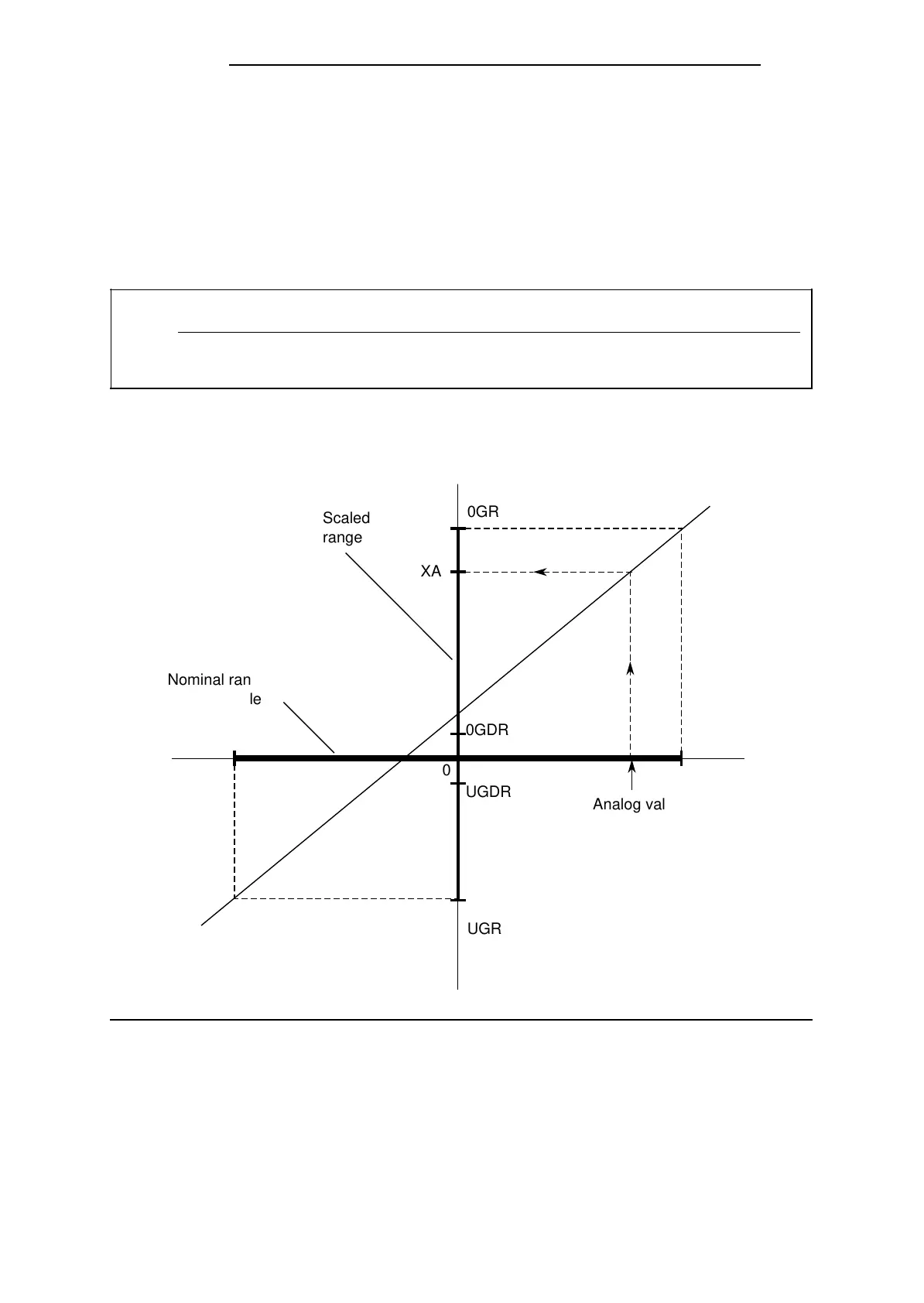

Scaling schematic:
Figure 6-1. Schematic Illustrating the Scaling of Analog Values
a a a a a a a a a
a a a a a a a a a
a a a a a a a a a
a a a a a a a a a
UGDR
0GDR
XA
0GR
a a a
a
a
a
a
a
a
a
a
a
a a a
0
Scaled
range
Nominal range
of the module
UGR
Analog value
EWA 4NEB 811 6149-02 6-5
