S5-115F Manual Configuring with COM 115F
I/O Type 15
Figure 1-32. Initialization Form for I/O Type 15
Status: TYPE INPUT
Type number : 15 DB number (4 to 255): 35
Num. of I/O Channels : 2 Signal group (0 to 28): 1
Num. of sensors : 2 Discr. crit.: Abs/Rel. to mean value: A
Safety-related : Yes Discr. value (0 to 2048 / 1 to 100): 100
Intermittent : No Valid value (1:min 2:max 3:mean): 3
Feedback modules required: CH AQ word (128 to 254): 242 Subunit: A
Check AQ 1-channel CH DQ byte ( 0 to 125):122 Half-byte(H/L):H
4x Check DQ 2-channel Check value (KH) Lower: 0 Upper : 1000
AI channel type (4 to 6): 4
I/O word
Analog input 36
F8
RETURN
F7
S5-115F: Configuring the I/O Modules COM 115F / PDC15
F1
SEARCH
F2
COPY
F3
SWAP
F4
DELETE
F5
TYPES
F6
SAVE
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a

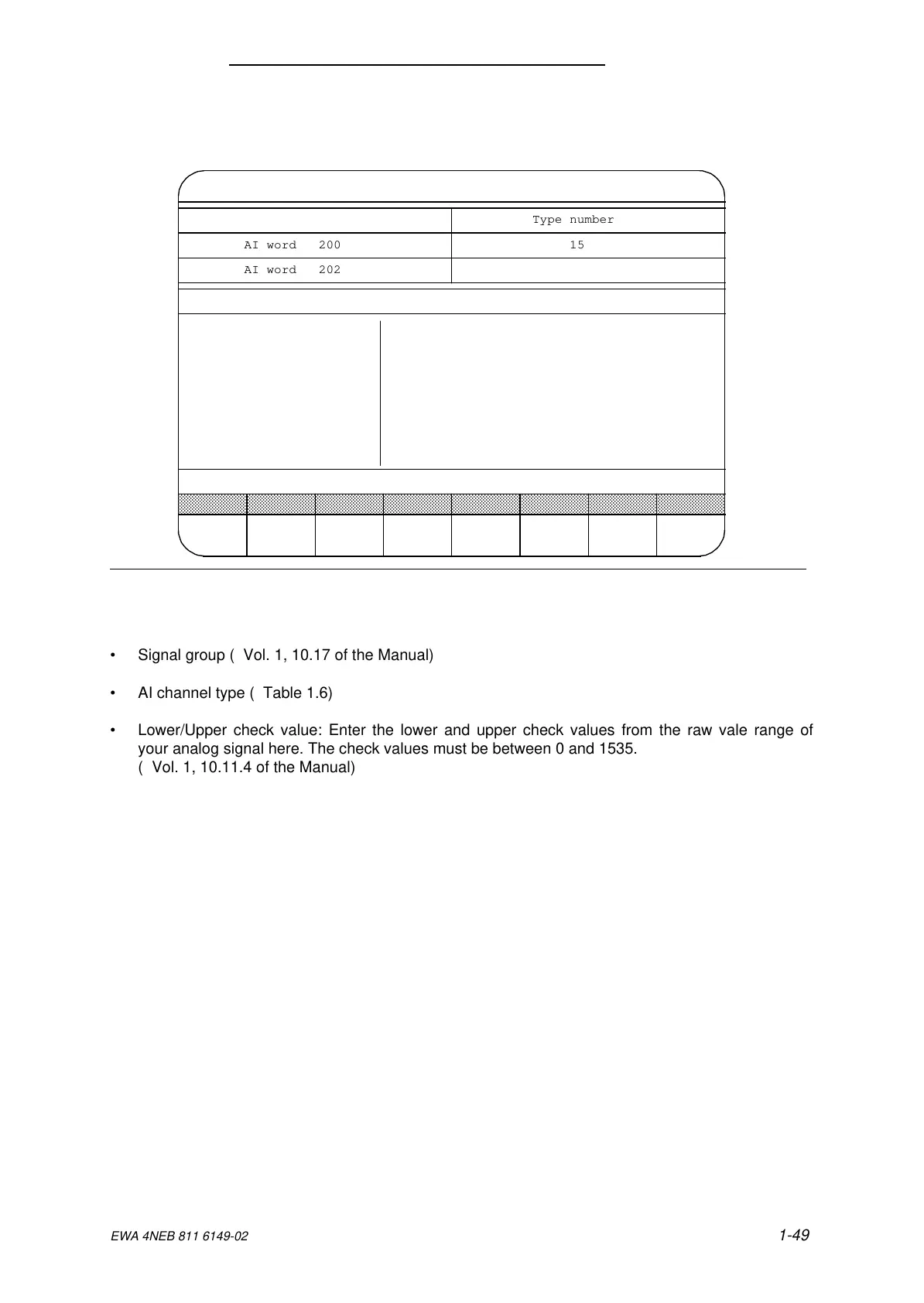

Type number
AI word 200 15
AI word 202
• Signal group ( Vol. 1, 10.17 of the Manual)
• AI channel type ( Table 1.6)
• Lower/Upper check value: Enter the lower and upper check values from the raw vale range of
your analog signal here. The check values must be between 0 and 1535.
( Vol. 1, 10.11.4 of the Manual)
EWA 4NEB 811 6149-02
1-49
To Next Page
