Siemens SIMATIC V2 - Dimension Drawing of the IFP2400 V2 and IFP2400 V2 Extended

Technical information
7.6 Dimension drawings
IFP V2, IFP V2 PRO, IFP V2 ETH
Operating Instructions, 03/2023, A5E46641410-AE
101

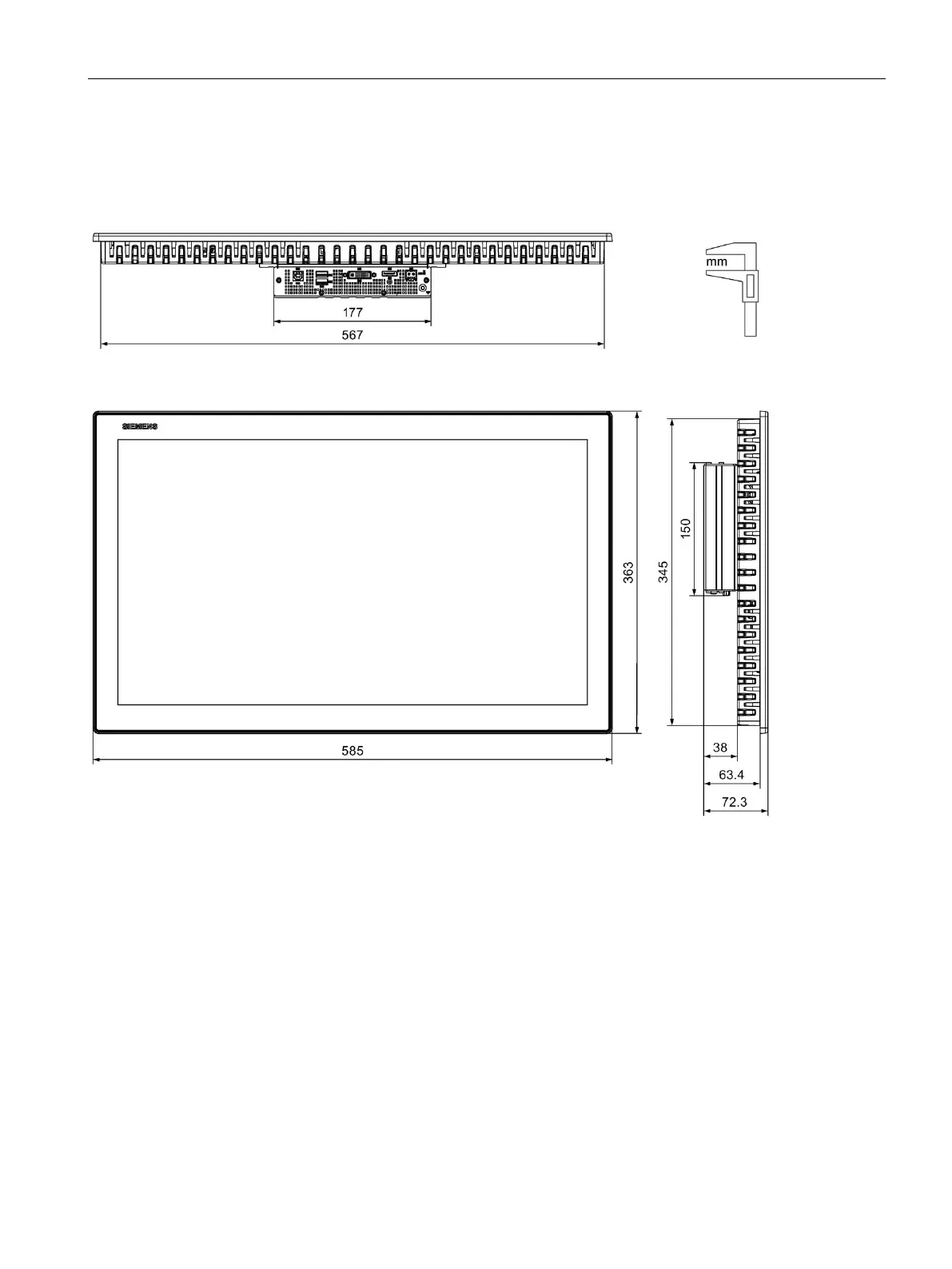

7.6.5 Dimension drawing of the IFP2400 V2 and IFP2400 V2 extended
The following figures show the dimensions of the SIMATIC IFP2400 V2. The specified
dimensions also apply to the SIMATIC IFP2400 V2 extended.
