1.3 Structure of the built-in devices
IFP V2, IFP V2 PRO, IFP V2 ETH
Operating Instructions, 03/2023, A5E46641410-AE
11
1.3 Structure of the built-in devices
This section describes the structure of the built-in devices using the example of the
IFP1900 V2 extended.

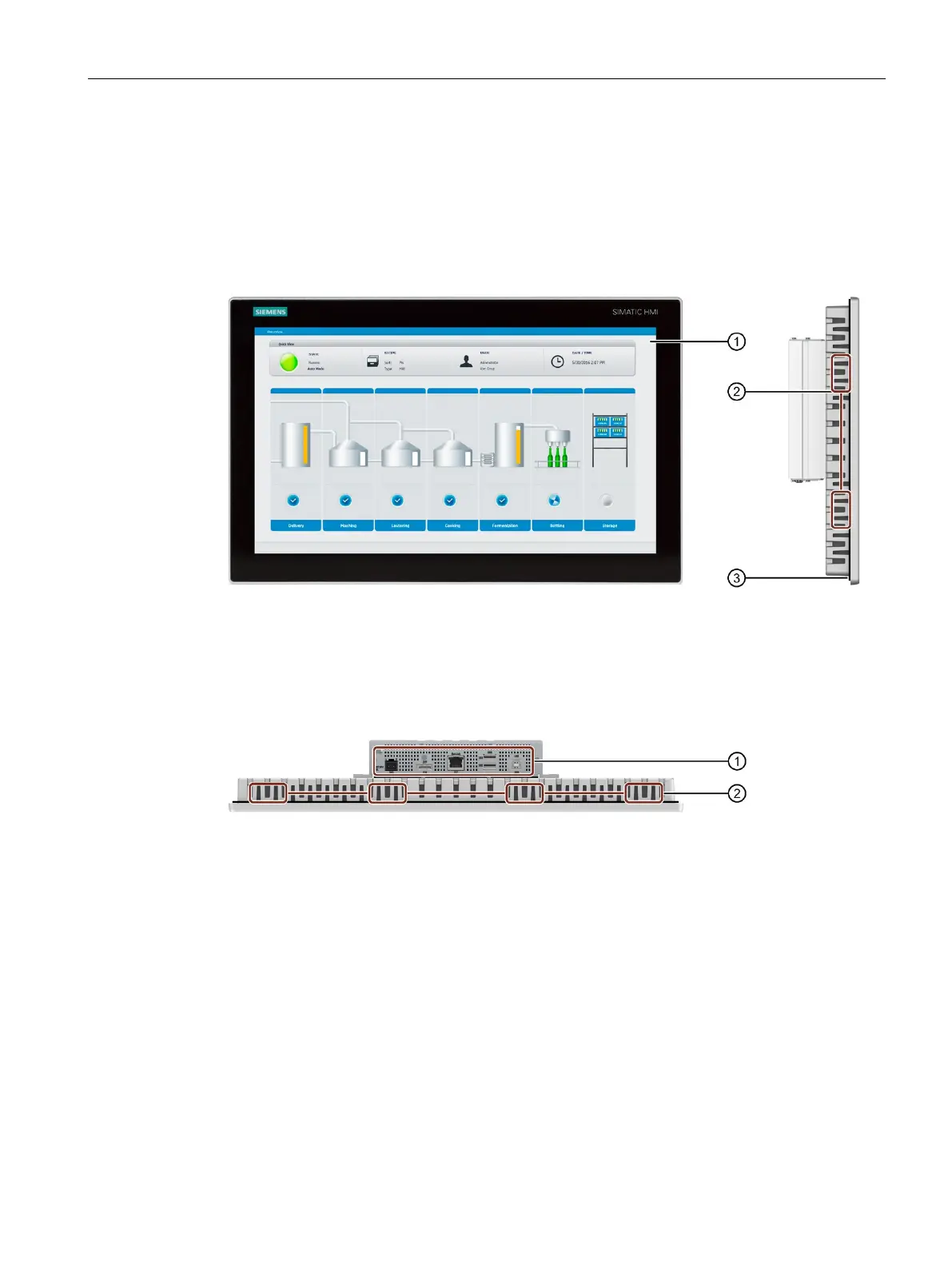

Front view and side view
①
Display and capacitive multi-touch screen
②
Recesses for mounting clips
③
Mounting seal
Bottom view
①
Interfaces
②
Recesses for mounting clips
