Siemens SIMATIC V2 User Manual

Installing and connecting the device
3.1 Preparing for installation
IFP V2, IFP V2 PRO, IFP V2 ETH
36 Operating Instructions, 03/2023, A5E46641410-AE
3.1.2.2 Required clearance
The following clearance is required for sufficient self-ventilation around the built-in device:
• At least 15 mm to the right and left of the mounting cutout (in x direction) to allow for
insertion of the mounting clips during installation
• At least 50 mm above and below the mounting cutout (in y direction) for ventilation
• At least 10 mm behind the rear panel of the device (in z direction). The device depth in
the control cabinet is 63.4 mm.

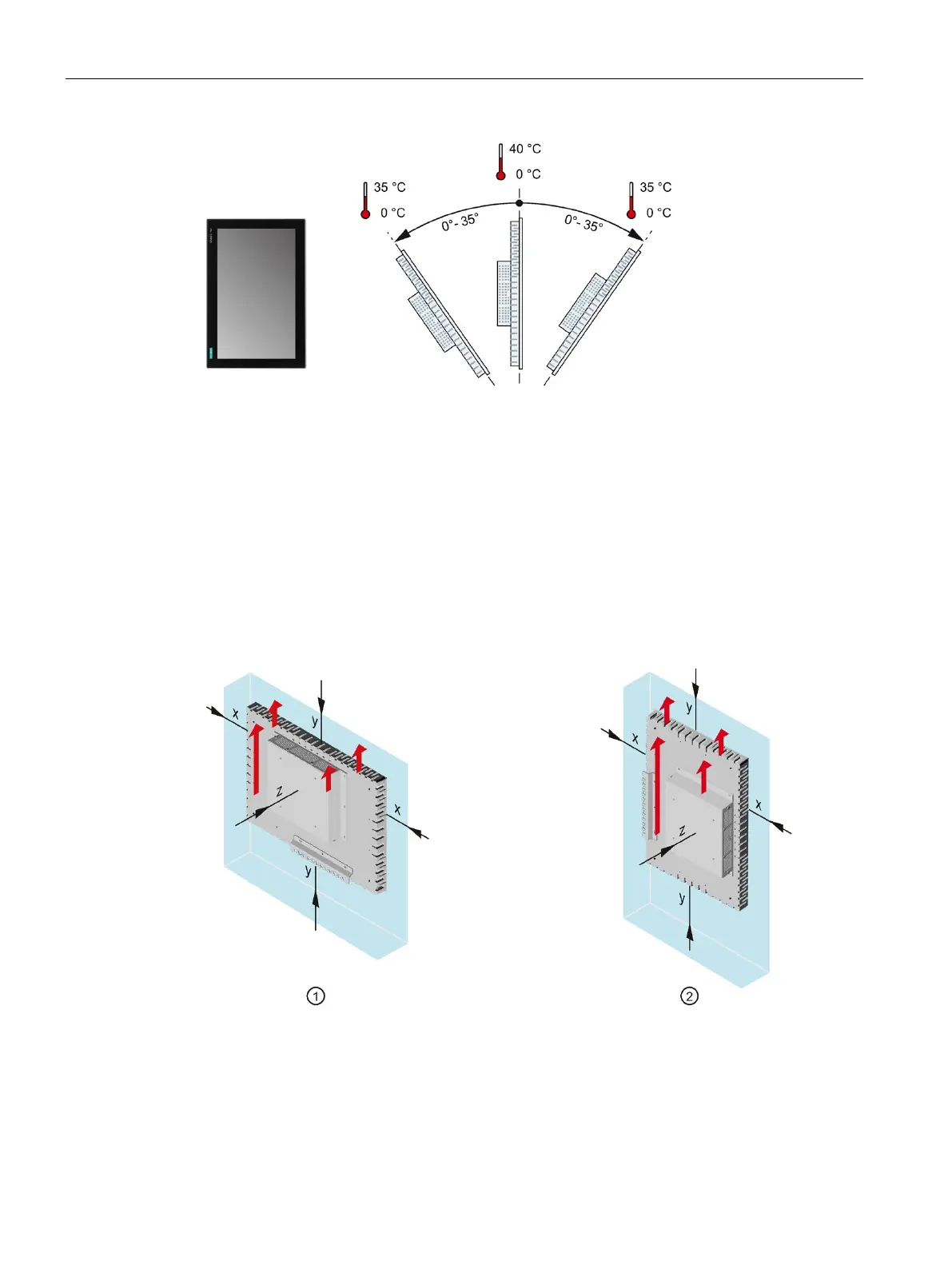

The figure below shows the required clearances when the device is installed in landscape and
portrait format:
①
Clearance for mounting in landscape format
②
Clearance for mounting in portrait format
x
At least 15 mm distance
y
At least 50 mm distance
z
At least 10 mm distance
