Installing and connecting the device
3.1 Preparing for installation
IFP V2, IFP V2 PRO, IFP V2 ETH
Operating Instructions, 03/2023, A5E46641410-AE
35

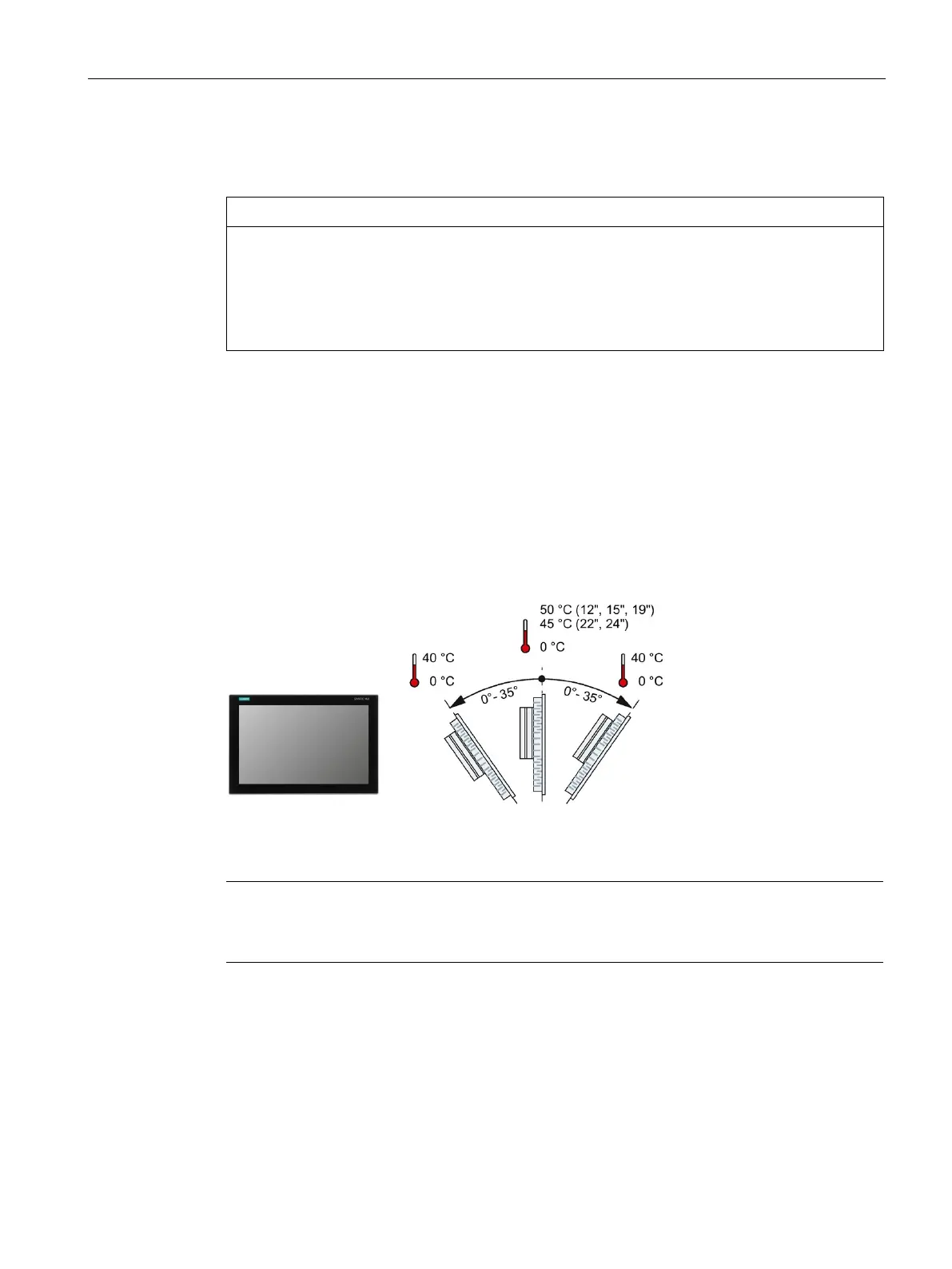

The built-in device is self-ventilated and approved for inclined mounting at angles up to +/-
35° from the vertical.
Damage due to overheating
Inclined installation reduces the convection by the built-in device and therefore the
maximum permitted ambient temperature for operation.
The ambient temperature ranges listed in this section apply to the rear and the front of the
built-in device.
Information on the permitted ambient temperatures during operation can be found in section
"Operating Conditions (Page 94)".
Mounting position
Select one of the permitted mounting positions for your built-in device. The permitted
mounting positions are described in the following sections.
Mounting in landscape format
Mounting in portrait format
Portrait format must also be supported by the software
Only install the built-in device in portrait format if the software used supports portrait format.
