6.4 Ethernet Monitors - Diagnostics and reset
IFP V2, IFP V2 PRO, IFP V2 ETH
82 Operating Instructions, 03/2023, A5E46641410-AE
6.4 Ethernet Monitors - Diagnostics and reset
6.4.1 Diagnostics screen
The diagnostics screen shows information on the system state of the Ethernet Monitor when
the Ethernet Monitor does not receive a signal from the PC. The diagnostics screen is not
displayed permanently; it alternates with a black screen.

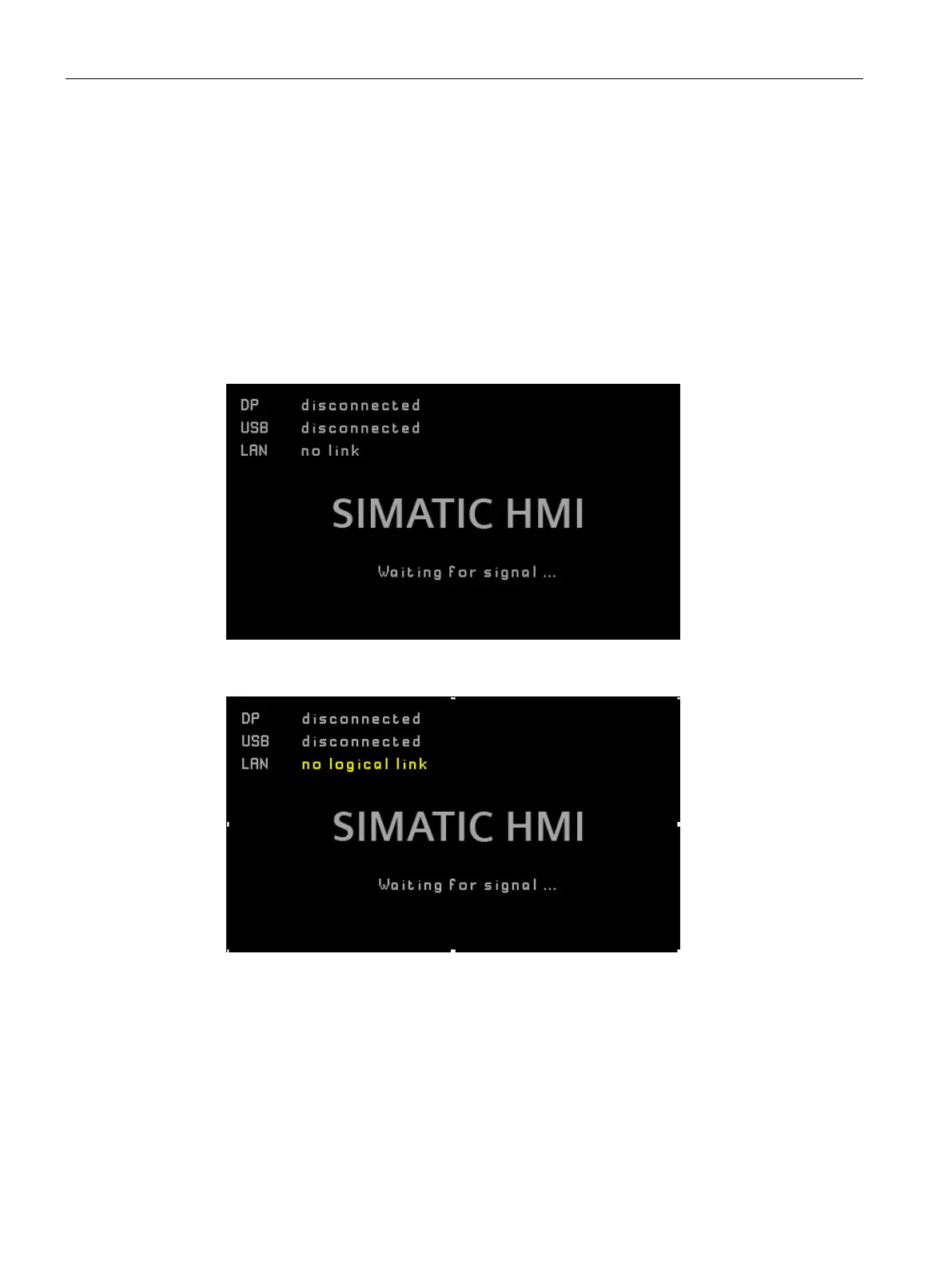

Examples:
• The Ethernet Monitor is not connected to the PC:
• The Ethernet Monitor is connected to the PC with a LAN cable, but a data connection
cannot be established:
