Siemens SIMATIC V2 User Manual

Technical information
7.6 Dimension drawings
IFP V2, IFP V2 PRO, IFP V2 ETH
Operating Instructions, 03/2023, A5E46641410-AE
97
7.6 Dimension drawings

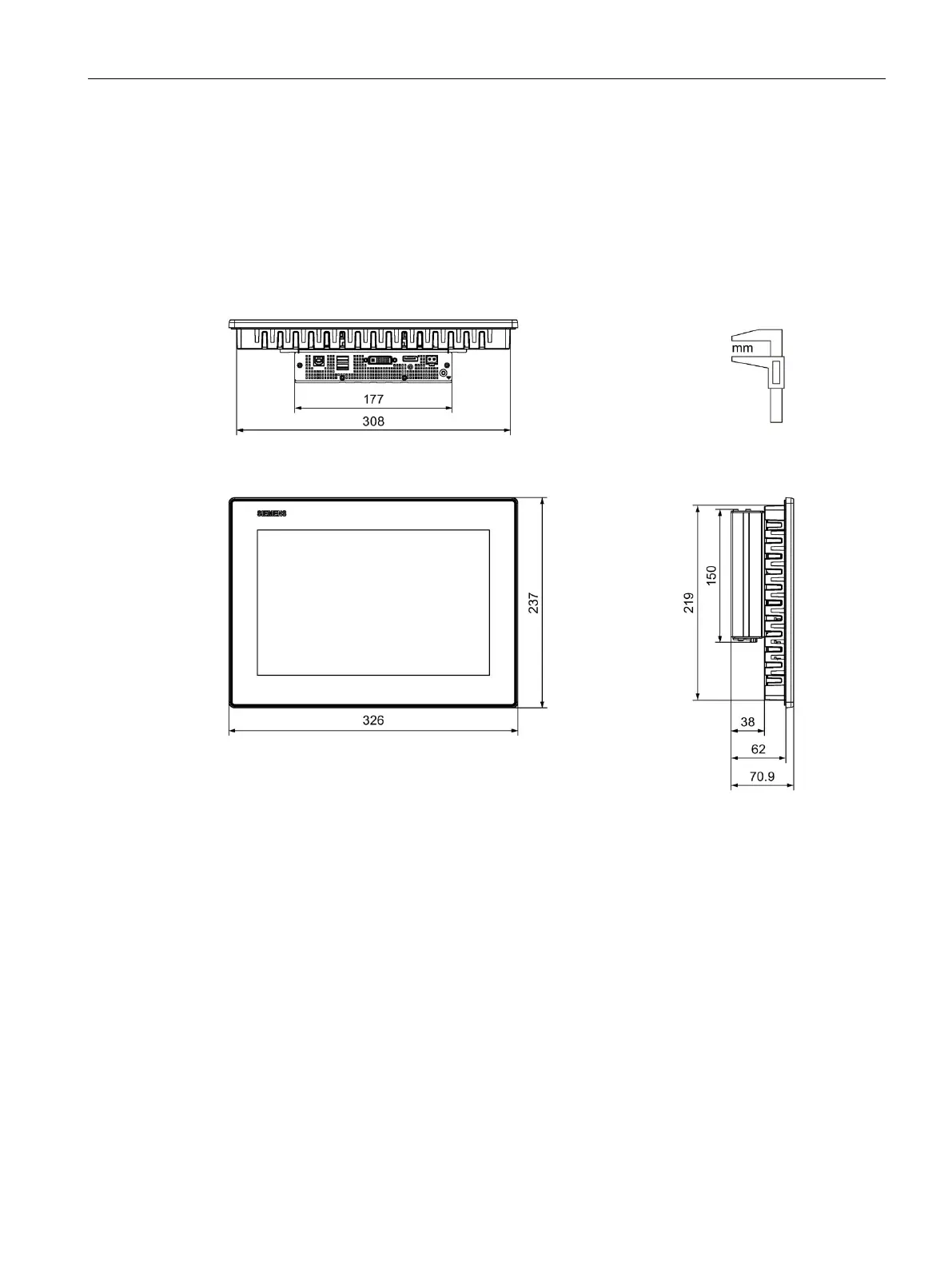

7.6.1 Dimension drawing of the IFP1200 V2 and IFP1200 V2 extended
The following figures show the dimensions of the SIMATIC IFP1200 V2. The specified
dimensions also apply to the SIMATIC IFP1200 V2 extended.
