Installing and connecting the device
3.2 Installing the built-in device
IFP V2, IFP V2 PRO, IFP V2 ETH
Operating Instructions, 03/2023, A5E46641410-AE
43
3.2.2 Positions of the mounting clips
You fasten the built-in devices with 12 mounting clips from the accessory pack, which are
also available as accessories.
See also section "Accessories (Page 24)".
To achieve degree of protection IP65 for the built-in device, the mounting clips must be
installed at the positions shown below.
Device

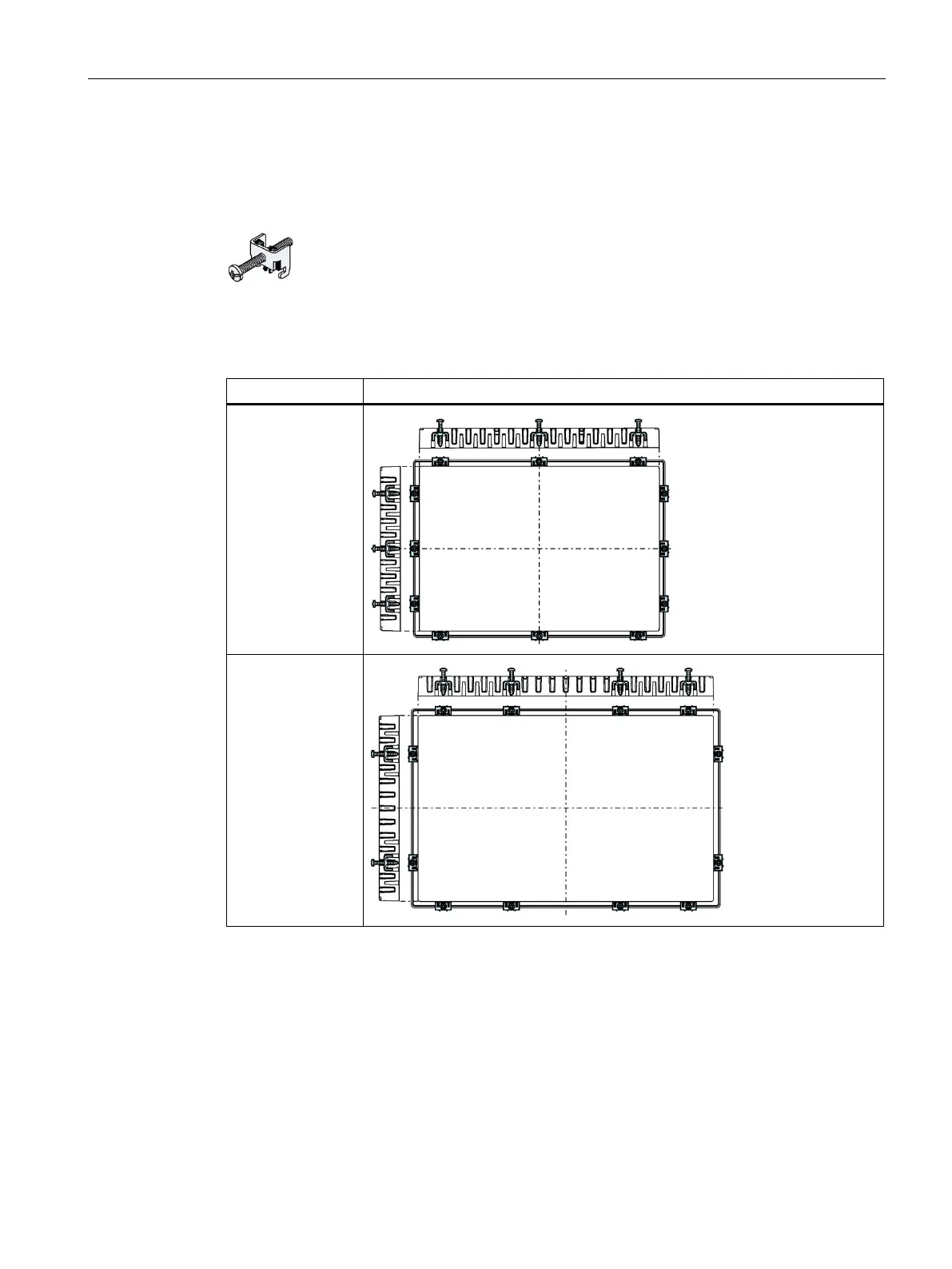

Positions of the mounting clips
12" built-in devices
15" built-in devices
