7.6
Dimensi
on dra
wings
IFP V2, IFP V2 PRO, IFP V2 ETH
112
Operating Inst
ructions
,
03/2023
,
A5E
466414
10
-
AE

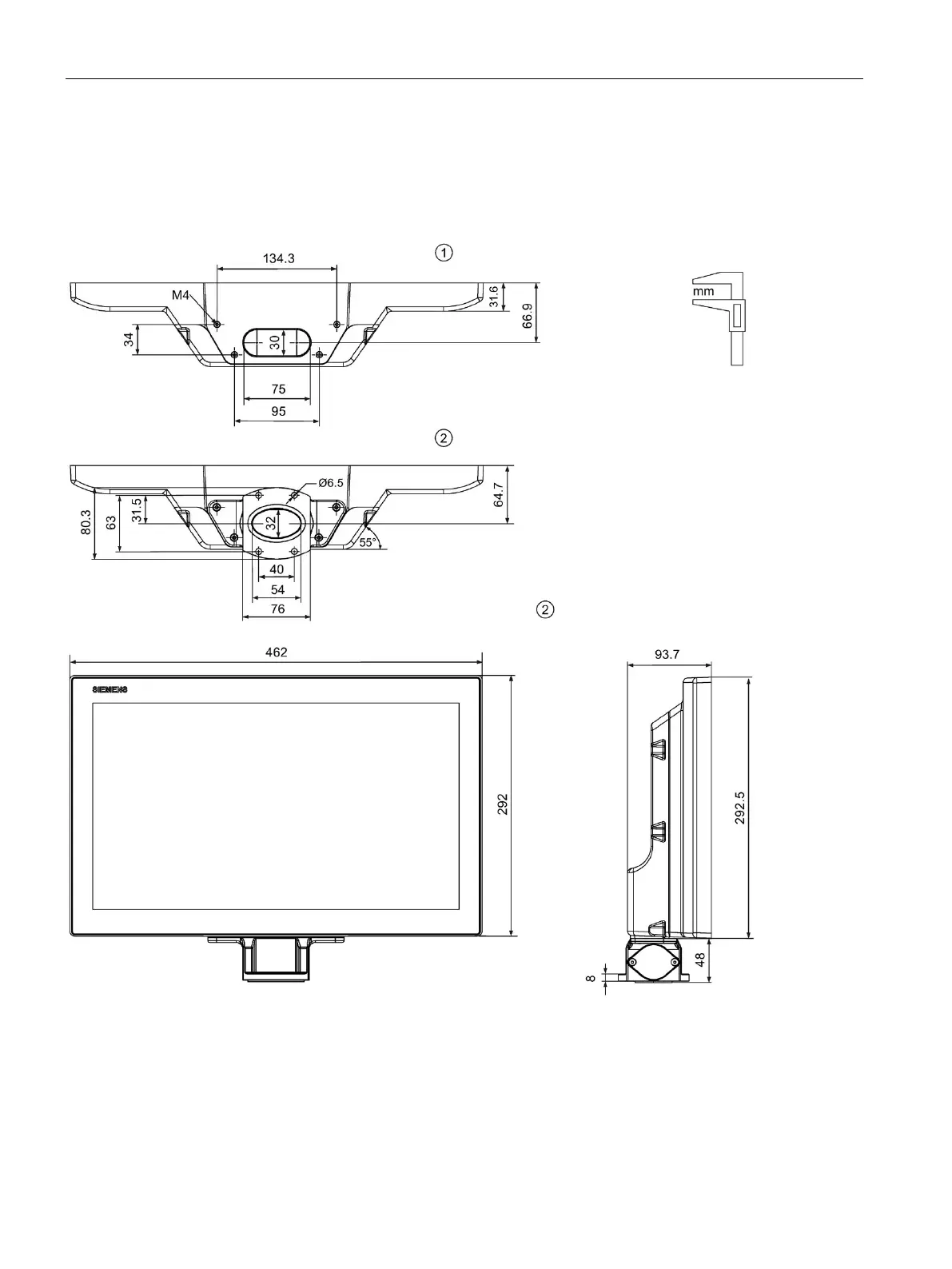

7.6.12
Dimensi
on dra
wing
of th
e IFP1900 V2 P
RO
IFP1900 V2 PRO for
pedestal (extenda
ble, flang
e bottom)
①
Without base adapter
②
With
base ada
pter
111
113
