1.5 Interfaces
IFP V2, IFP V2 PRO, IFP V2 ETH
Operating Instructions, 03/2023, A5E46641410-AE
17
1.5 Interfaces

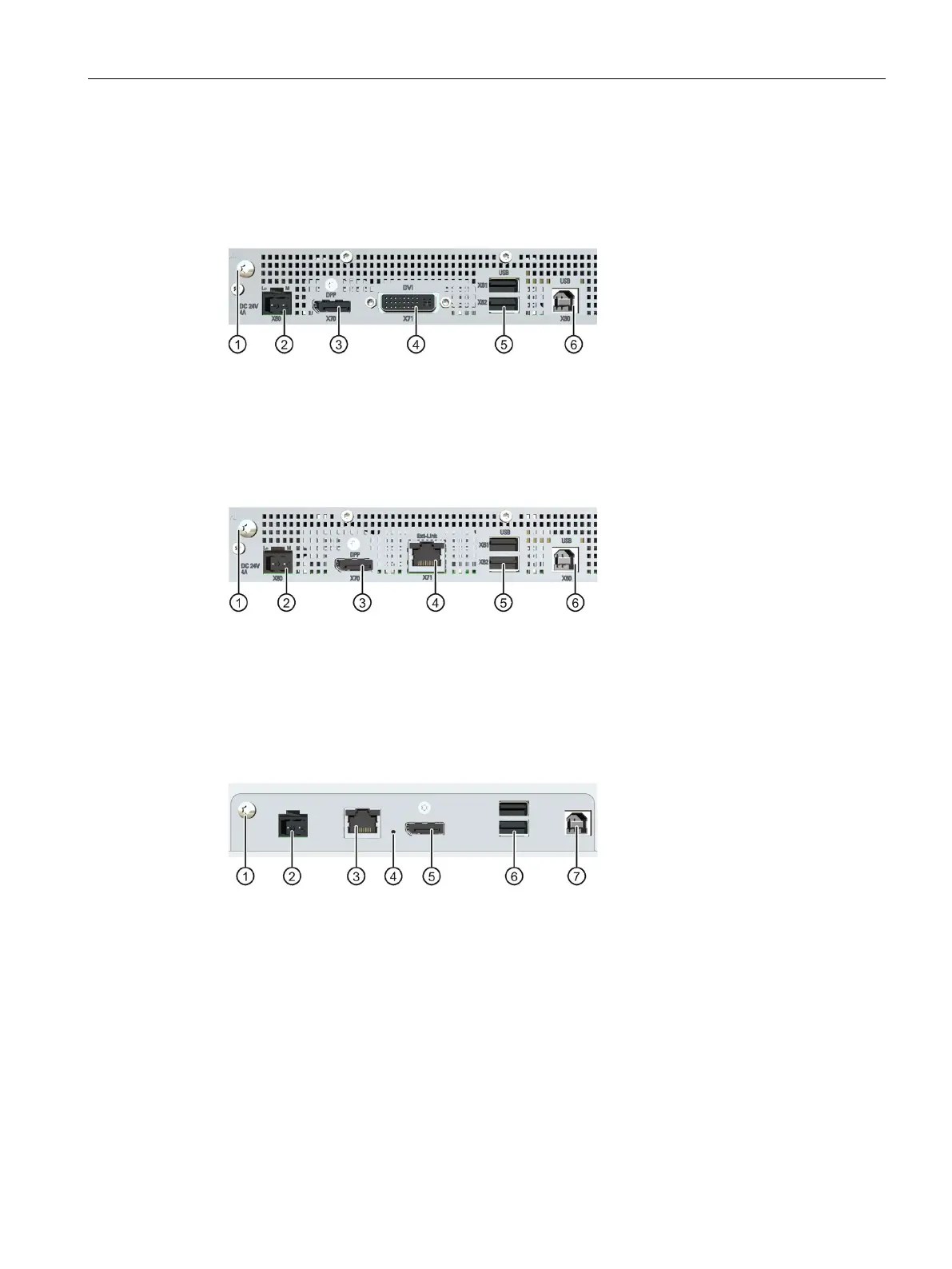

Standard versions
①
Connection for functional ground
④
X71 DVI-D interface
②
X80 connector for 24 V DC power supply
⑤
X61/X62 USB Type A
③
X70 DisplayPort interface
⑥
X60 USB Type B
Extended versions and PRO devices
① Connection for functional ground ④ X71 Ext-Link interface to the Trans-
ceiver Unit
②
X80 connector for 24 V DC power supply
⑤
X61/X62 USB Type A
③
X70 DisplayPort interface
⑥
X60 USB Type B
Ethernet Monitors
①
Connection for functional ground
⑤
X70 DisplayPort interface
②
X80 connector for 24 V DC power supply
⑥
X61/X62 USB Type A
③
X1 Ethernet port to the PC
⑦
X60 USB Type B
④
Reset button
1.6 System components and accessories
System components are products that have been developed for a specific system and can
not be used in general, for example, like the base adapter. System components are always
directly related to a core product.
