Overview
1.4 Design of the PRO devices
IFP V2, IFP V2 PRO, IFP V2 ETH
16 Operating Instructions, 03/2023, A5E46641410-AE

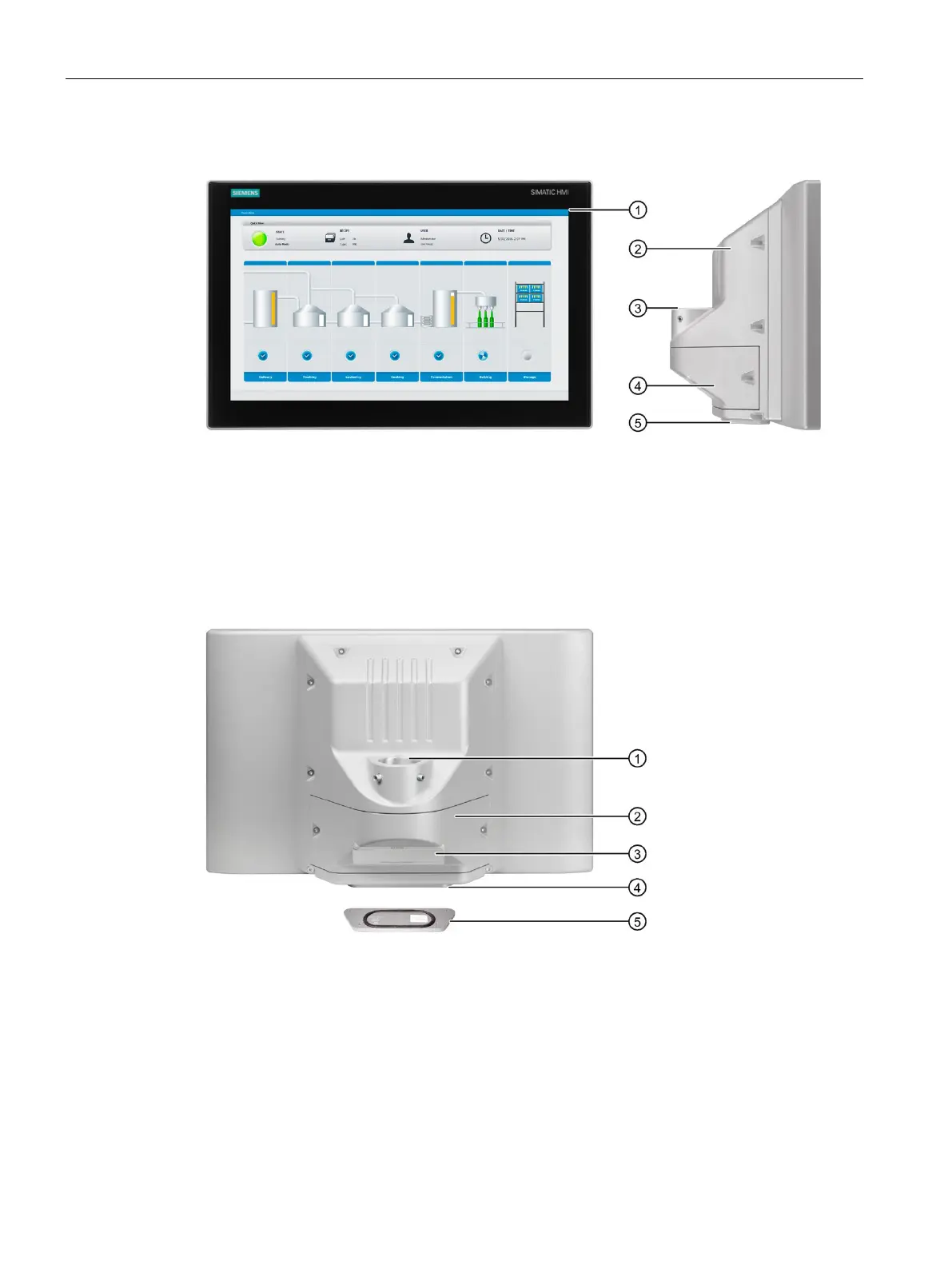

Front view and side view
Display and capacitive multi-touch screen
Mechanical interface for fastening (round tube)
Terminal compartment cover
Mechanical interface to the optional Extension Unit or to the supplied cover
Rear view
Mechanical interface for fastening (round tube)
Terminal compartment cover
Mechanical interface to the optional Extension Unit or to the supplied cover
Lower cover, included in the product package
