Technical information

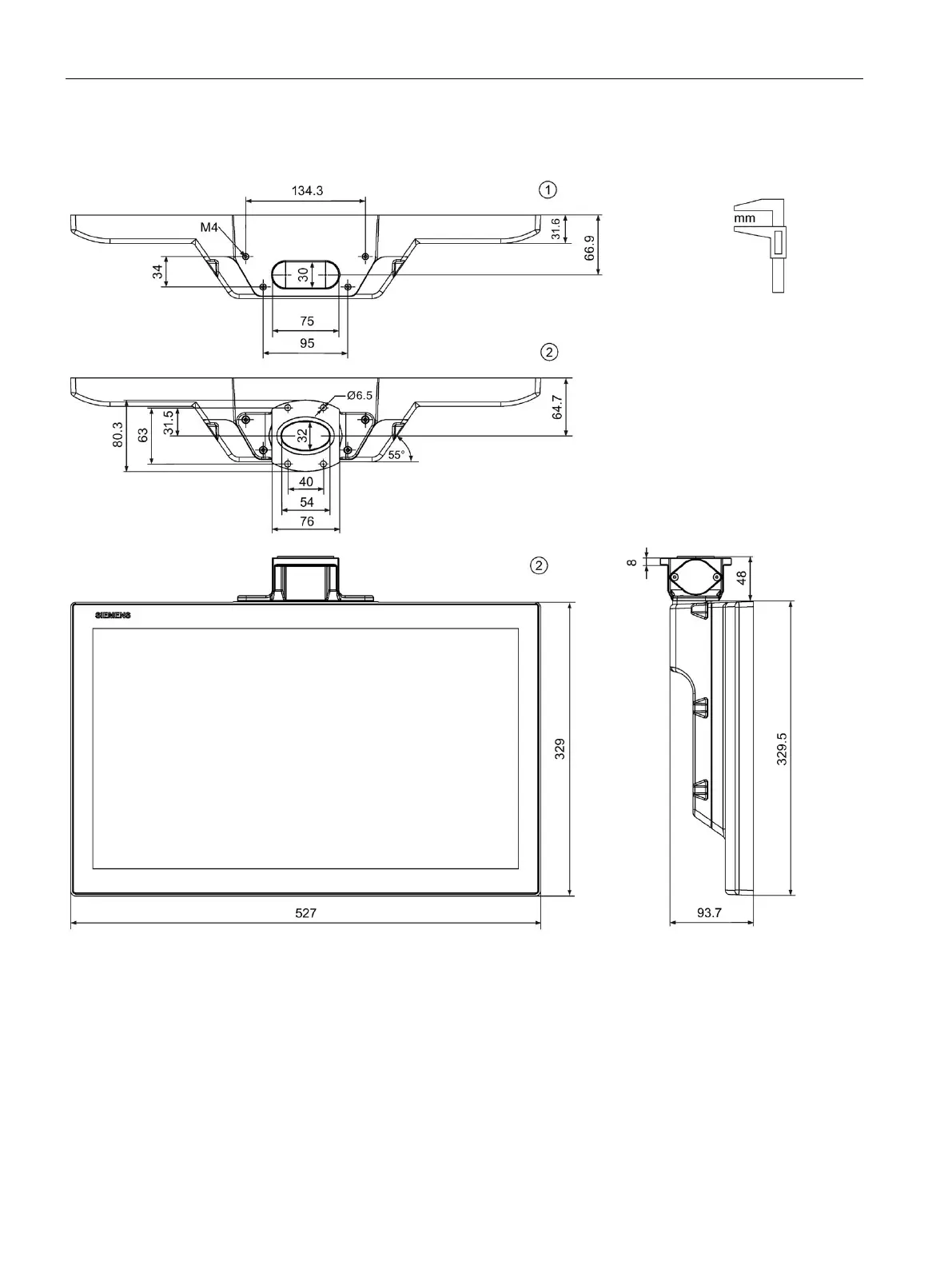

7.6 Dimension drawings
IFP V2, IFP V2 PRO, IFP V2 ETH
116 Operating Instructions, 03/2023, A5E46641410-AE
IFP2200 V2 PRO for support arm (not extendable, flange top)
①
Without base adapter
②
With base adapter
