Technical in
formation
7.6
Dimensi
on dra
wings
IFP V2, IFP V2 PRO, IFP V2 ETH
Operating Inst
ructions
,
03/2023
,
A5E
466414
10
-
AE
121

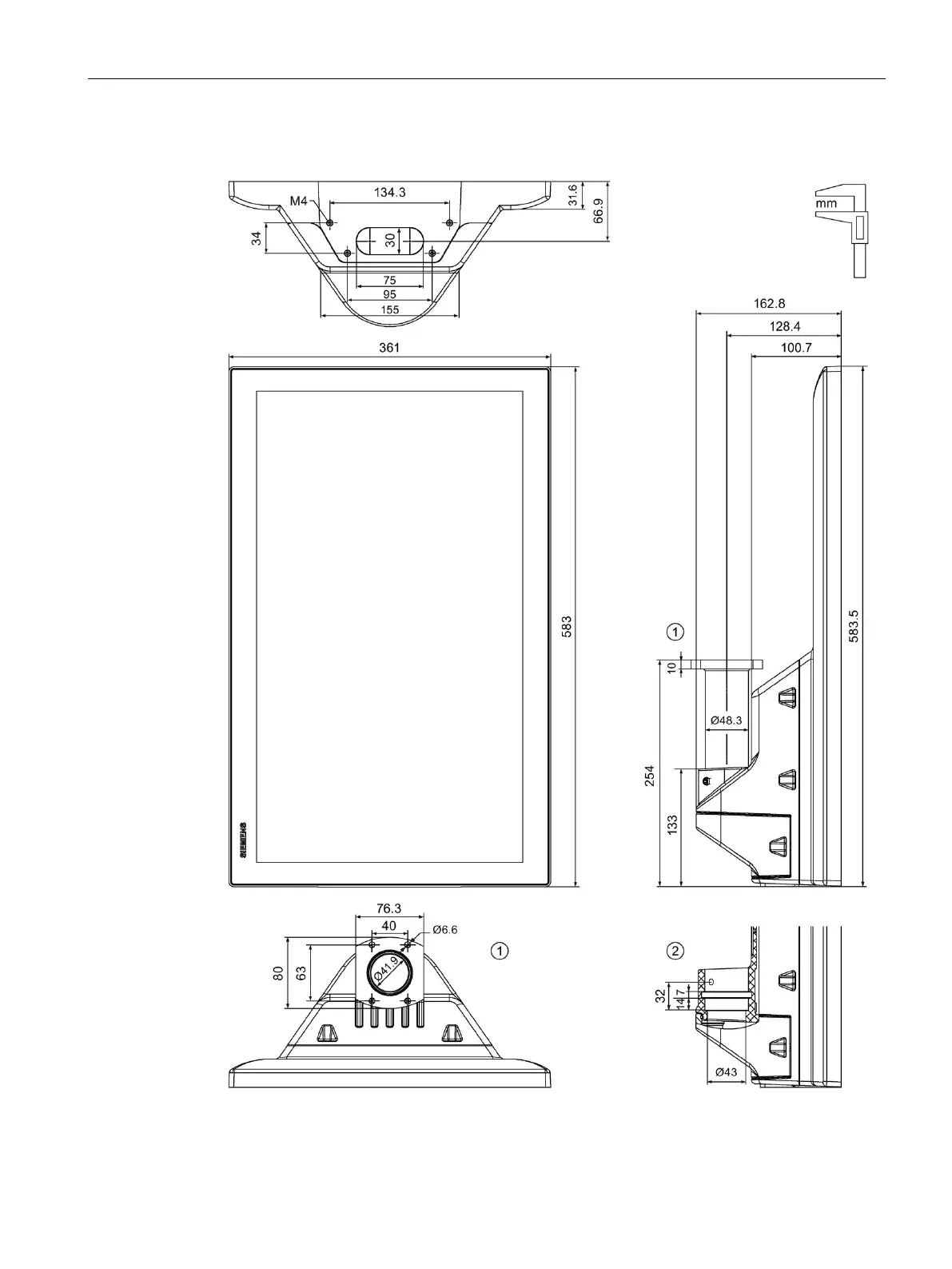

IFP2400 V2 PRO Portrait for sup
port arm (extendable, round tube)
①
With flange
mount adapte
r
②
Without flange
mount
adapter
120
122
Table of Contents
Preface
3
Table of Contents
5
Overview
8
Product Description
8
Scope of Delivery of the Ifps
10
Structure of the Built-In Devices
11
Design of the PRO Devices
12
PRO Devices for Support Arm (Not Extendable, Flange Top)
12
PRO Devices for Pedestal (Extendable, Flange Bottom)
14
PRO Devices for Support Arm (Extendable, Round Tube)
15
Interfaces
17
System Components and Accessories
17
System Components for Ifps
18
System Components for PRO Devices
20
Accessories
24
Safety Instructions
26
General Safety Instructions
26
Notes on Use
28
Use in Hazardous Areas
32
Installing and Connecting the Device
33
Preparing for Installation
33
Checking the Delivery Package
33
Built-In Devices
34
Permitted Mounting Positions
34
Required Clearance
36
Preparing the Mounting Cutout
37
Installing the Strain Relief Plate
38
PRO Devices
39
Permitted Mounting Positions
39
Transceiver Unit
40
Permitted Mounting Positions
40
Required Clearance
41
Fastening the Mounting Rail
41
Installing the Built-In Device
42
Notes on Installation
42
Positions of the Mounting Clips
43
Fastening the Built-In Device Using Mounting Clips
45
Mounting the PRO Device
47
Notes on Mounting
47
PRO Devices for Support Arm (Not Extendable, Flange Top) and for Pedestal (Extendable, Flange Bottom)
48
PRO Devices for Support Arm (Extendable, Round Tube)
51
Mounting the Transceiver Unit
54
Connecting the Device
56
Notes on Connection
56
Equipotential Bonding
58
Connecting the Power Supply
61
Connecting IFP Standard, Extended and PRO to a PC
63
Important Notes for Connecting
63
Connecting the Standard Version to a PC
63
Connecting the Extended Version or PRO Device to a PC
64
Connecting the Ethernet Monitor to a PC
68
Overview
68
Connection Variants
69
Connecting a USB Device to the IFP
69
Securing the Cables
70
Securing Cables at the IFP
70
Securing Cables at the Transceiver Unit
71
Securing Cables for Use in Hazardous Areas
71
Removing the Device
72
Removing the Built-In Device
72
Removing a PRO Device
73
Removing Transceiver Unit
74
Commissioning the IFP
75
Operating the IFP
76
Operator Input Options
76
Operating the Capacitive Multi-Touch Screen
77
Extended Functions
79
Device Maintenance and Repair
80
General Information on Maintenance and Servicing
80
Cleaning the Device
80
Spare Parts and Repairs
81
Ethernet Monitors - Diagnostics and Reset
82
Diagnostics Screen
82
Restoring the Factory Settings for an Ethernet Monitor
83
Recycling and Disposal
83
Technical Information
84
Certificates and Approvals
84
Electromagnetic Compatibility
91
Mechanical Environmental Conditions
93
Storage Conditions
93
Operating Conditions
93
Climatic Ambient Conditions
94
Long-Term Storage
94
Transport and Short-Term Storage
94
Operating Conditions
94
Information on Insulation Tests, Protection Class and Degree of Protection
95
Dimension Drawings
97
Dimension Drawing of the IFP1200 V2 and IFP1200 V2 Extended
97
Dimension Drawing of the IFP1500 V2 and IFP1500 V2 Extended
98
Dimension Drawing of the IFP1900 V2 and IFP1900 V2 Extended
99
Dimension Drawing of the IFP2200 V2 and IFP2200 V2 Extended
100
Dimension Drawing of the IFP2400 V2 and IFP2400 V2 Extended
101
Dimension Drawing of the IFP1500 V2 ETH
102
Dimension Drawing of the IFP1900 V2 ETH
103
Dimension Drawing of the IFP2200 V2 ETH
104
Dimension Drawing of the IFP2400 V2 ETH
105
Dimension Drawing of the IFP1200 V2 PRO
106
Dimension Drawing of the IFP1500 V2 PRO
109
Dimension Drawing of the IFP1900 V2 PRO
112
Dimension Drawing of the IFP2200 V2 PRO
115
Dimension Drawing of the IFP2400 V2 PRO
118
Dimension Drawing of the Transceiver Unit
122
Rating Plate
123
Technical Specifications of the Ifps
124
Technical Specifications of the Transceiver Unit
126
Interface Description
127
DVI-D
127
Displayport
128
USB Hub Type a
129
USB Type B
129
Ext-Link
130
Ethernet
130
Technical Support
131
Service and Support
131
Troubleshooting
132
Information about the Manufacturer
132
Markings and Symbols
133
Safety-Relevant Symbols
133
List of Abbreviations
135
Glossary
136
Index
137
