Installing and connecting the device
3.3 Mounting the PRO device
IFP V2, IFP V2 PRO, IFP V2 ETH
52 Operating Instructions, 03/2023, A5E46641410-AE
Procedure

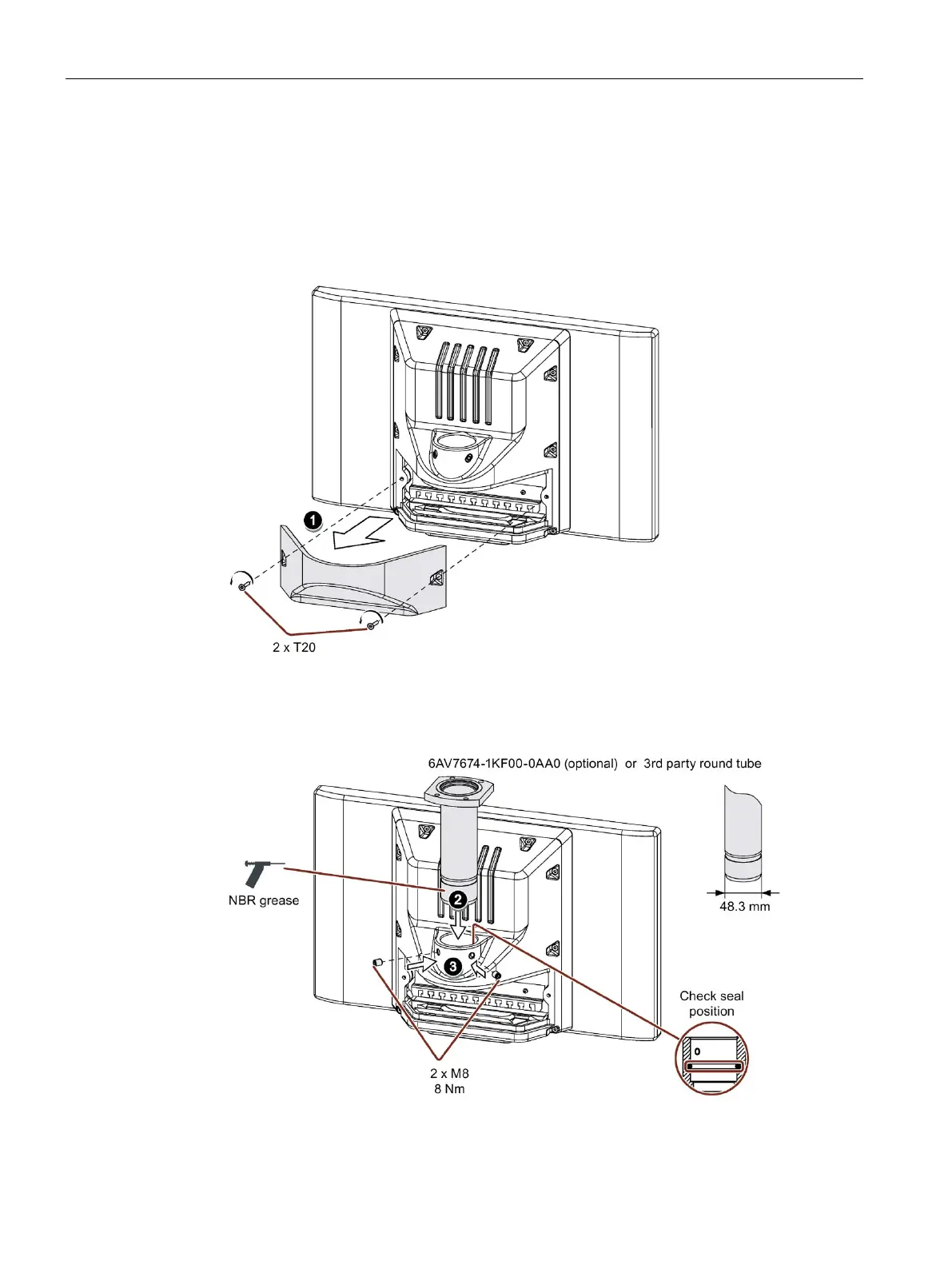

The following figures show an example of how to attach the PRO device to a support arm
system using the optionally available Siemens flange mount adapter. The same approach is
used to mount the PRO device to a 48.3 mm round tube.
1. Loosen the 2 screws of the terminal compartment cover and remove the terminal
compartment cover.
2. Check that the NBR seal is properly seated on the inside of the mechanical interface to the
flange mount adapter, see figure below. Grease the flange mount adapter or 48.3 mm
round tube with grease suitable for NBR seals, and insert the flange mount adapter or
48.3 mm round tube into the corresponding opening of the PRO device.
