3.4 Mounting the Transceiver Unit
IFP V2, IFP V2 PRO, IFP V2 ETH
Operating Instructions, 03/2023, A5E46641410-AE
55
Proceed as follows:

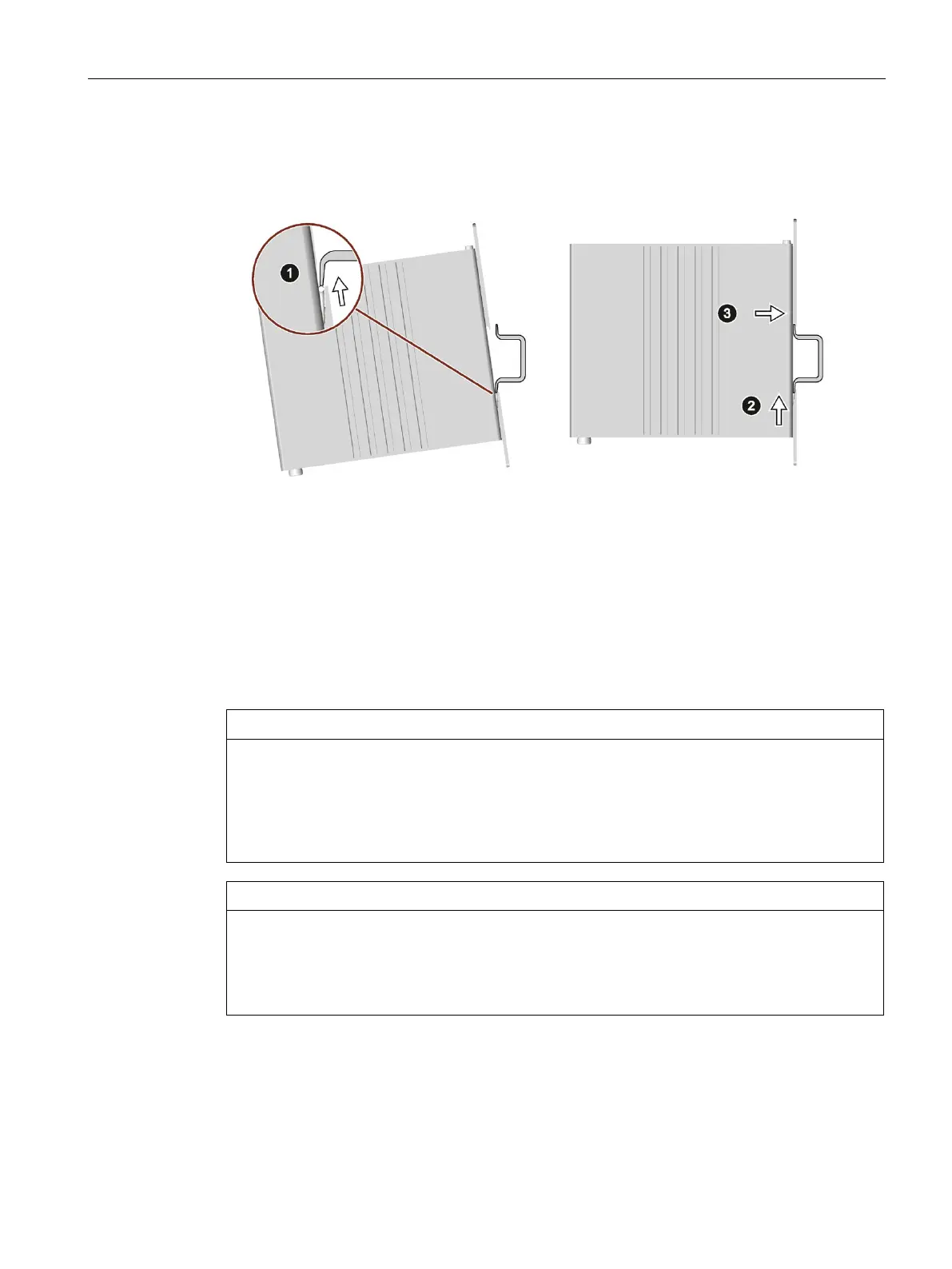

1. Place the device with the mounting rail clip from below onto the standard mounting rail.
Make sure that the unit does not tilt.
2. Push the device upward.
3. Push the device towards the standard mounting rail until the standard mounting rail clip
engages completely at the top.
Wall mounting
Fasten the Transceiver Unit to a wall with two M4 screws via the two elongated holes of the
mounting rail.
Sufficient carrying capacity of the wall is required.
If the wall does not have a sufficient load-bearing capacity, the device may fall and be
damaged.
Ensure that the wall can bear four times the total weight of the device, including mounting
Mounting material
If you use anchors and screws other than those specified below for wall mounting, safe
mounting is not guaranteed. The device can fall and may be damaged.
Use only the anchors and screws specified in the following table.
