3. Click (Start measuring function) to start the measuring functions.
The
axis is moved during the measurement. For this reason, a safety message that allows
the process to be aborted is displayed.
4. The traced signals are represented on the "Time diagram" tab.

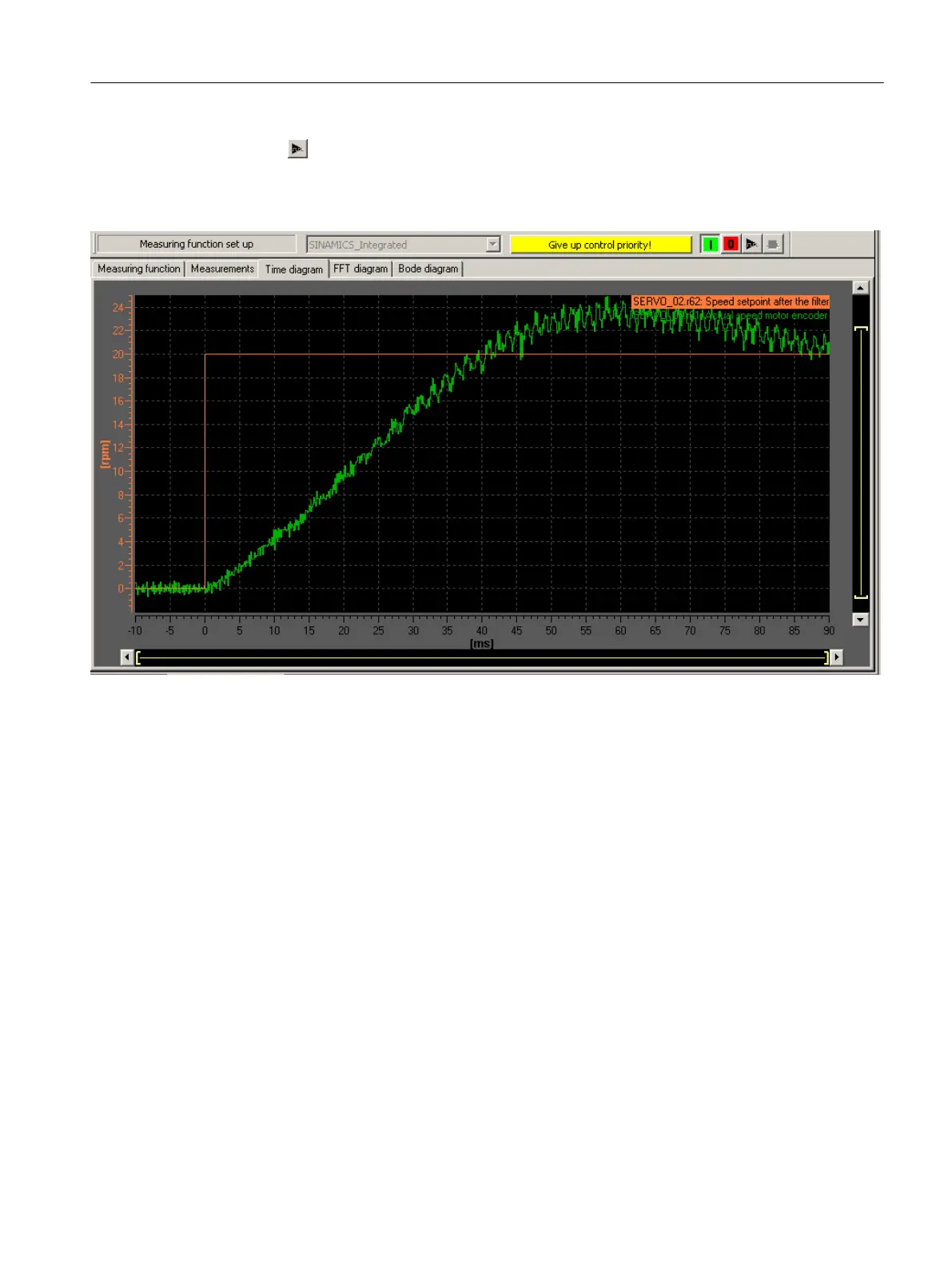

Figure 7-69 Time diagram before parameter change
Commissioning (software)
7.16 Optimizing the drive and controller
SIMOTION D4x5-2
Commissioning and Hardware Installation Manual, 03/2018, A5E33441636B 307
