Configuration/programming
2.2 Configuring and programming TM1x modules
TM15 / TM17 High Feature Operating Manual
Commissioning Manual, 05/2009
21
2.2.1 Inserting new TM1x modules
Procedure
1. Click the "+" next to "Input/output component". An expanded project tree similar to the
one below will be displayed.

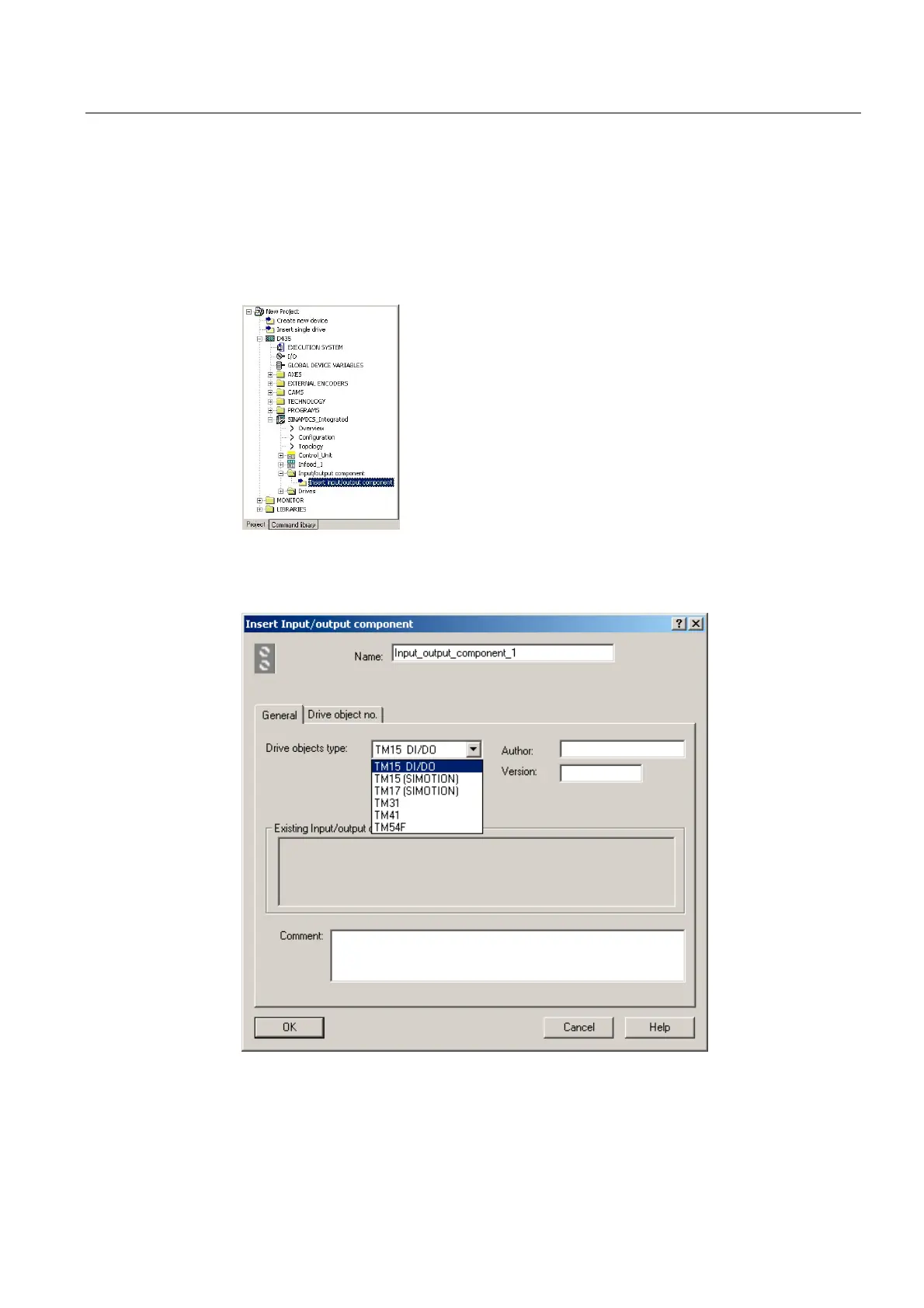

Figure 2-1 "Insert input/output component" window
2. Double click "Insert input/output component". A window similar to the one shown below
will appear.
Figure 2-2 "Insert input/output component" window
