Configuration/programming
2.2 Configuring and programming TM1x modules
TM15 / TM17 High Feature Operating Manual
30 Commissioning Manual, 05/2009
2.2.5 Generating message frames and TM1x drive objects
The message frames are automatically generated (or updated if they previously existed)
when you select the "Close" button in the graphical configuration screen form.
Note
Do not make any changes to the parameters in the Expert list, as these changes will not be
automatically updated in the message frame and could therefore lead to errors.
See also
Message frames (Page 82)
Maximum permissible message frame length (Page 42)
2.2.6 Aligning the configuration with the hardware
I/O addresses must now be assigned to the message frame so that the runtime system can
access it. These addresses are generated/updated by the hardware configuration tool
included in SCOUT.
1. To begin assigning addresses in this example, double-click "Configuration" under
"SINAMICS_Integrated" in the project tree. A window will appear showing the I/O address
assignment of the message frame. The addresses of the inputs and outputs are updated
when you click "Transfer to HW Config" followed by "Yes".

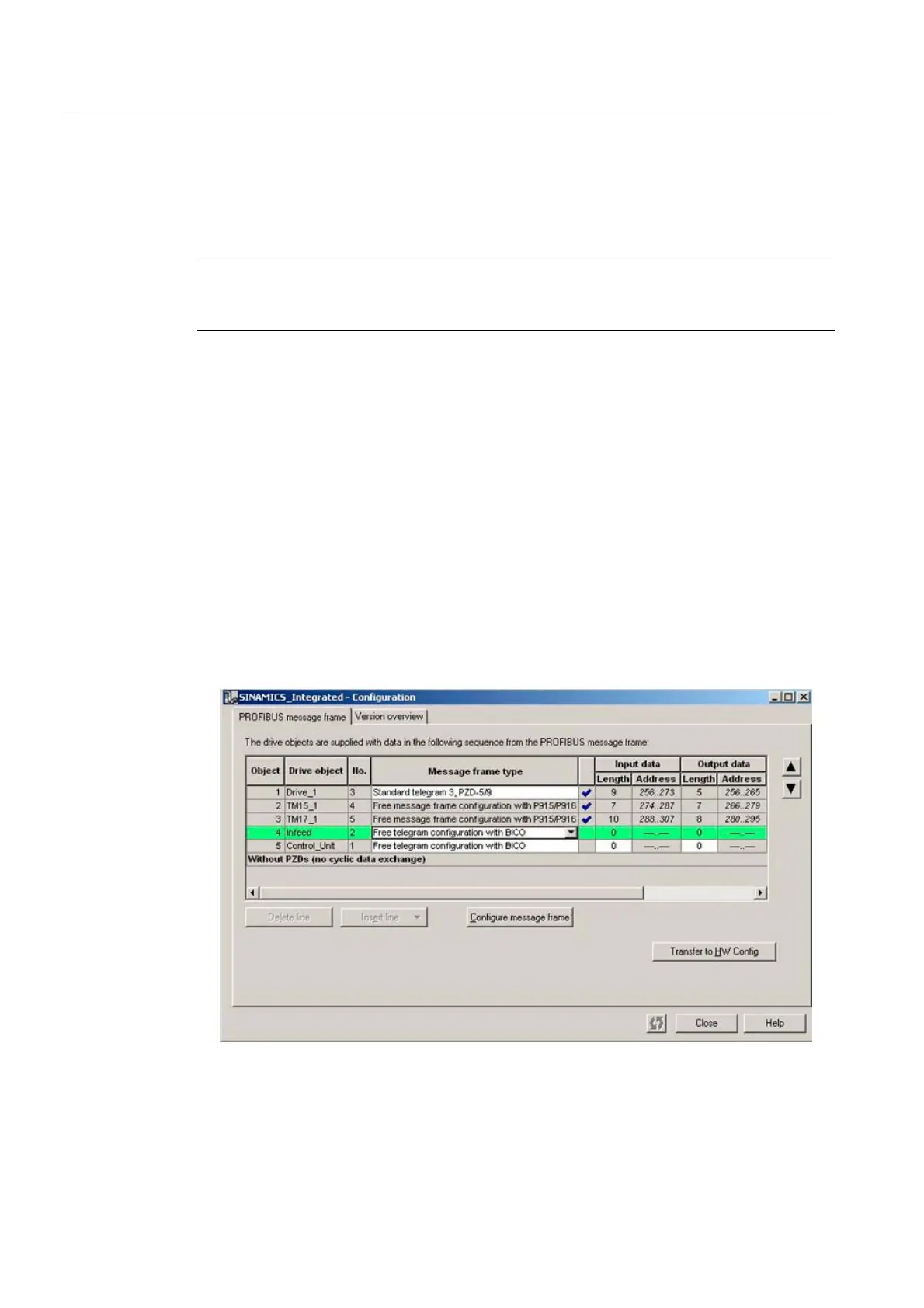

Figure 2-6 Aligning the configuration with the hardware
