Configuration/programming
2.2 Configuring and programming TM1x modules
TM15 / TM17 High Feature Operating Manual
Commissioning Manual, 05/2009
25
2.2.3 Configuring I/O channels – TM17 High Feature
To begin configuring the TM17 High Feature Terminal Module, you can follow the procedure
described in the chapter on "Configuring I/O Channels – TM15". The window shown below
will open.

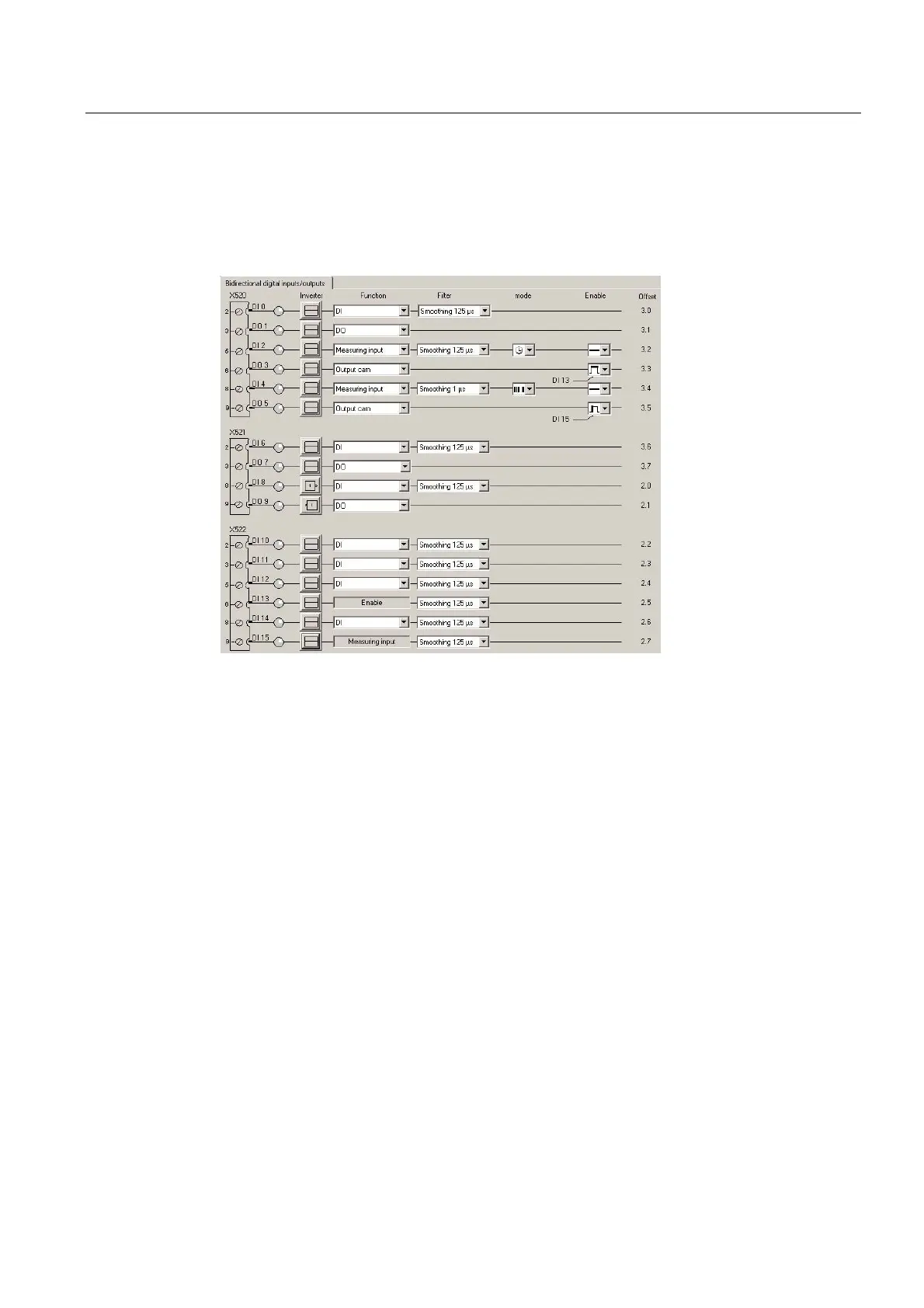

Figure 2-5 SCOUT – graphical configuration screen form for the TM17 (SIMOTION)
The "Inverter", "Function", and "Offset" columns are identical to those in the TM15 display.
Additional configuration settings for the TM17 High Feature can also be made (see figure
below).
Filter
You can select a 1-µs or 125-µs filter for the inputs via the drop-down menus in the "Filter"
column". The shortest pulses can be detected using the 1 μs filter; however, the 125 μs filter
will provide higher noise immunity.
