5.5 Other application examples
TM15 / TM17 High Feature Operating Manual
Commissioning Manual, 05/2009
61
5.5 Other application examples
5.5.1 Use of inputs
The following figure shows an example of an input connection. Although TM15 is shown, the
TM17 High Feature is wired in a similar manner. Note that no 24 VDC is required on the
"L1+" terminal since it is only needed in an output application for the output driver. (See also
"Supplementary SINAMICS System Components for SIMOTION" Manual.)
9'&
/LPLWVZLWFK
;
5'<


',2
',2
',2
',2
',2
',2
',2
',2
70
/
0



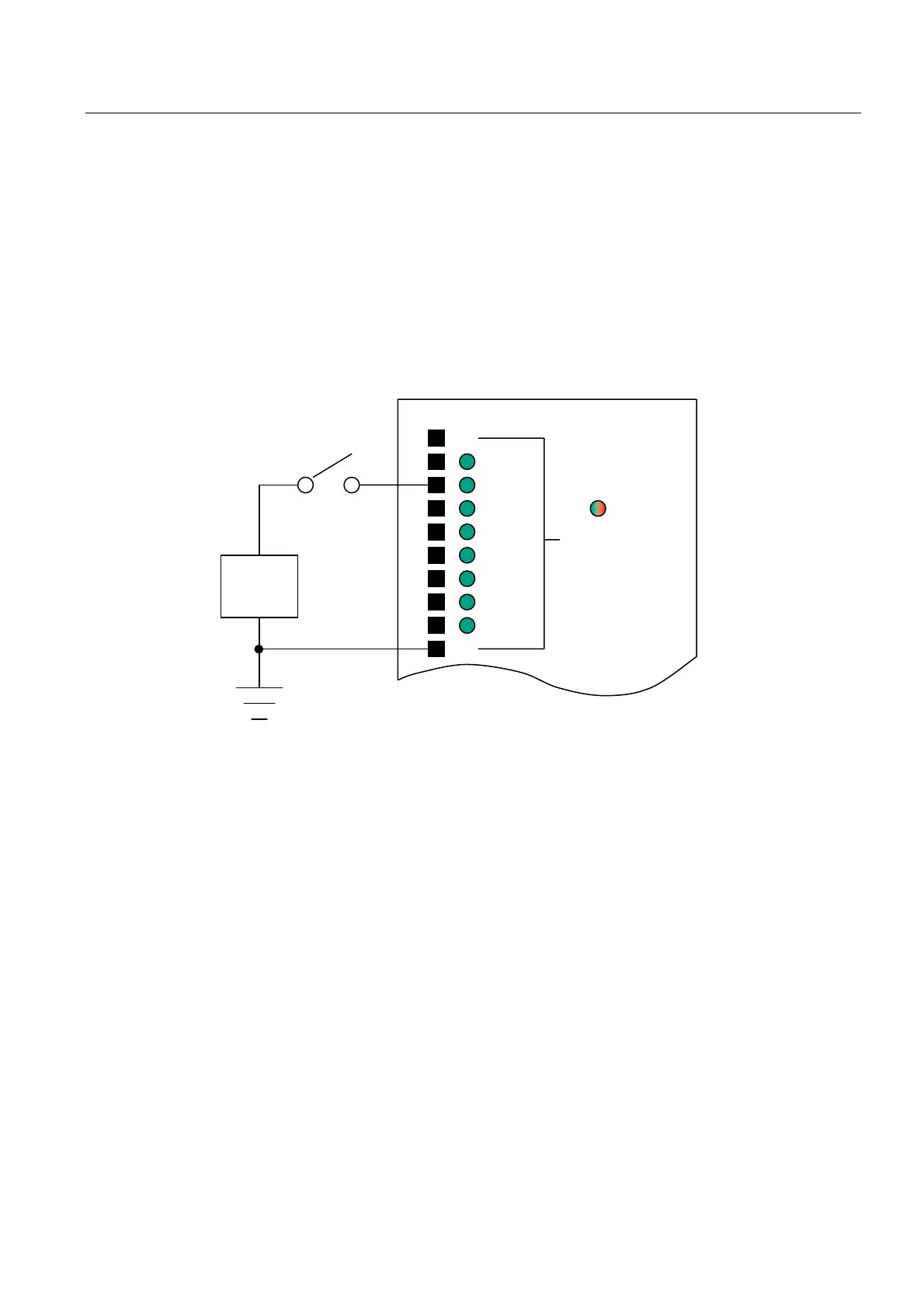

Figure 5-4 Example: Input circuitry on the TM15
