Functions
6.9 Technological functions
SINAMICS G110D
138 Operating Instructions, 07/2016, FW V3.63, A5E36768472B AB
Controlling the motor holding brake after an OFF2
For the OFF2 command the brake closing time is not taken into account.
After these control commands, the signal to close the motor holding brake is immediately
output independent of the motor speed.

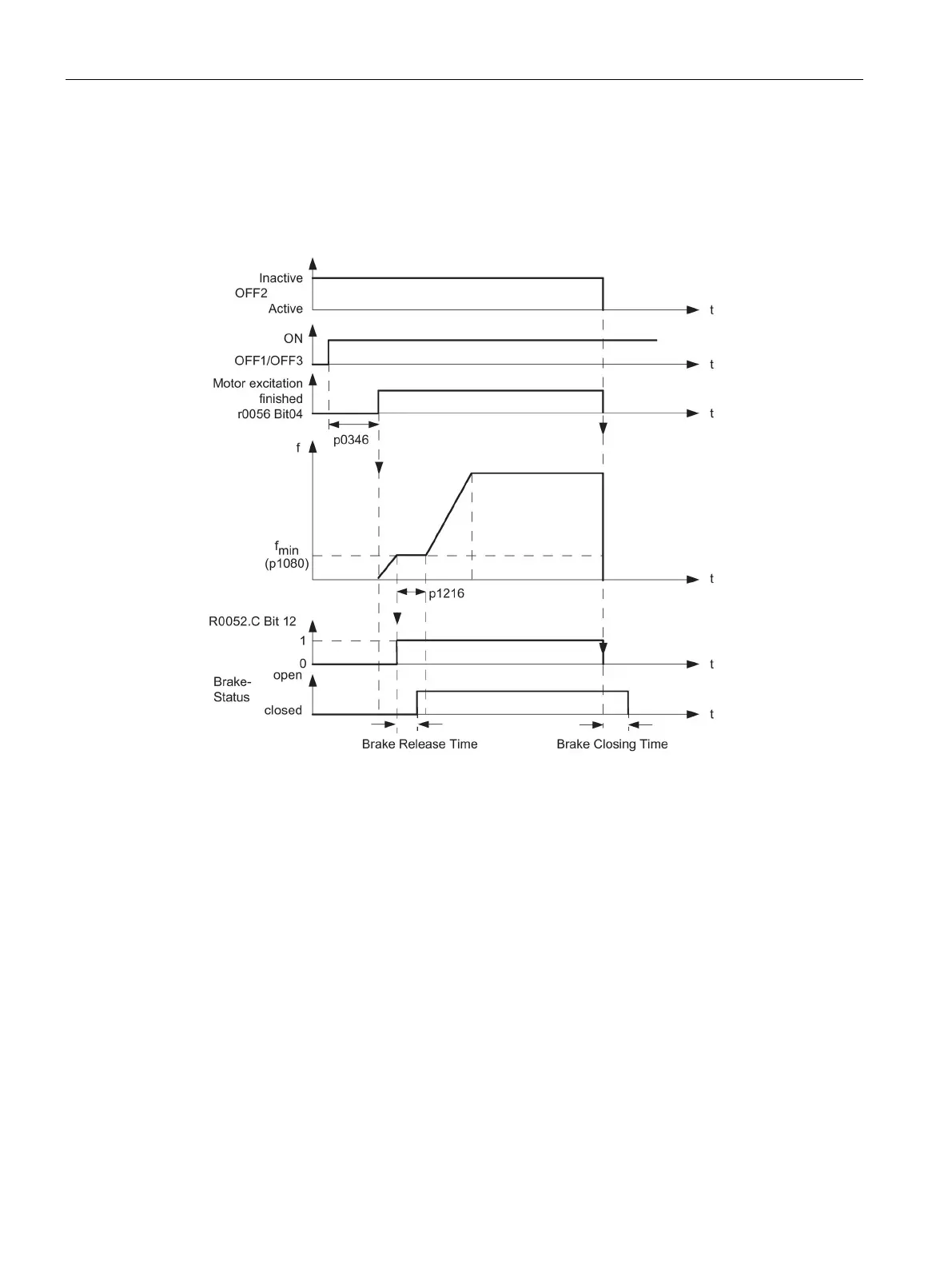

Image 6-13 Function diagram, motor holding brake after an OFF2 command
