3.2 Components of the Inverter system
SINAMICS G110D
30 Operating Instructions, 07/2016, FW V3.63, A5E36768472B AB
3.2
Components of the Inverter system
The Inverter system
The Inverter is available in three frame sizes:
Frame size A (FSA)
6SL3511-0PE17-5AM0 - 0.75 kW
6SL3511-1PE17-5AM0 - 0.75 kW with repair switch
6SL3511-0PE21-5AM0 - 1.5 kW
6SL3511-1PE21-5AM0 - 1.5 kW with repair switch
6SL3511-0PE23-0AM0 - 3.0 kW
6SL3511-1PE23-0AM0 - 3.0 kW with repair switch

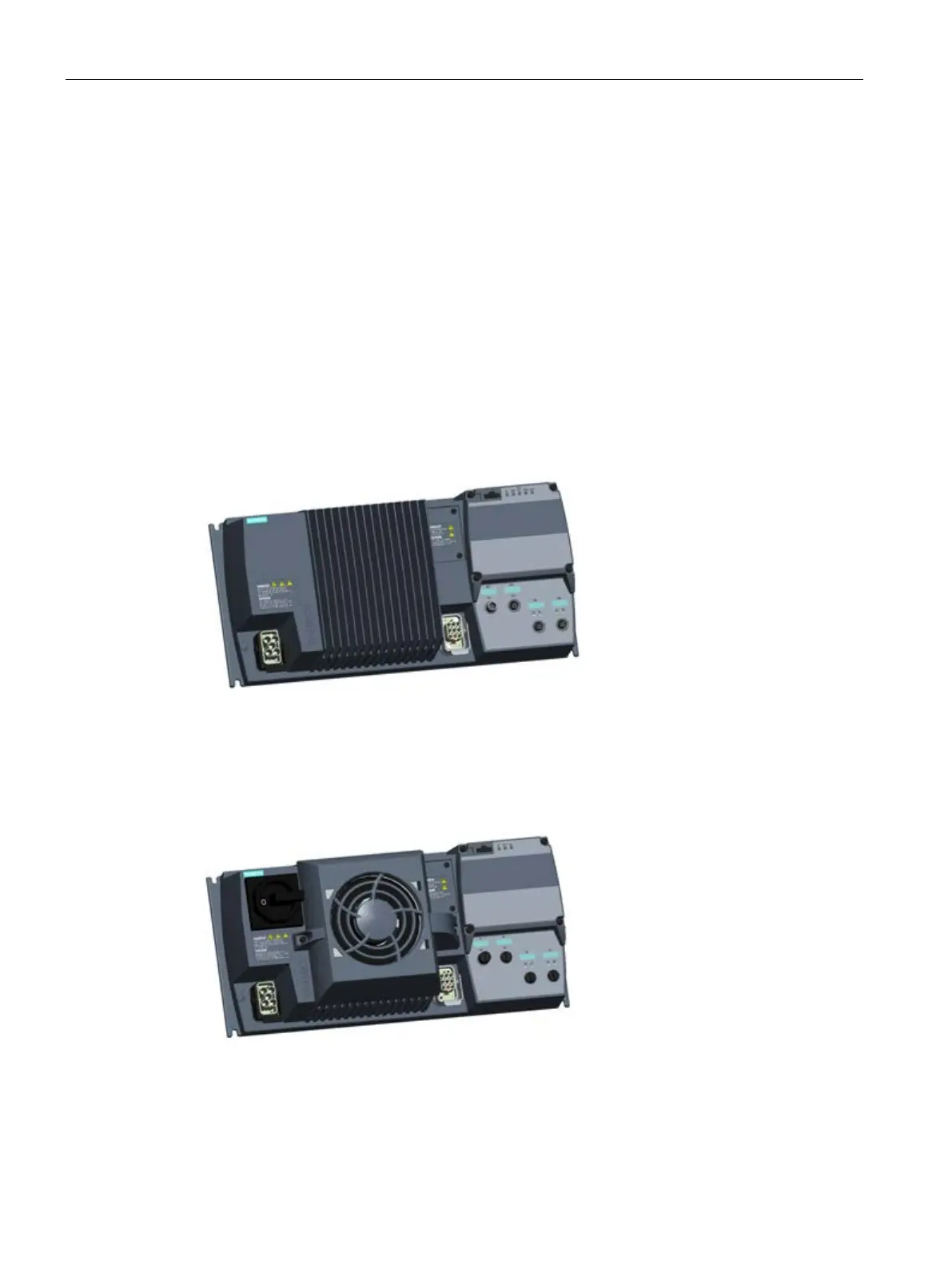

Image 3-1 SINAMICS G110D FSA
Frame size B (FSB)
6SL3511-0PE24-0AM0 - 4.0 kW
6SL3511-1PE24-0AM0 - 4.0 kW with repair switch
Image 3-2 SINAMICS G110D FSB
