6.10 Quick Stop function
SINAMICS G110D
156 Operating Instructions, 07/2016, FW V3.63, A5E36768472B AB

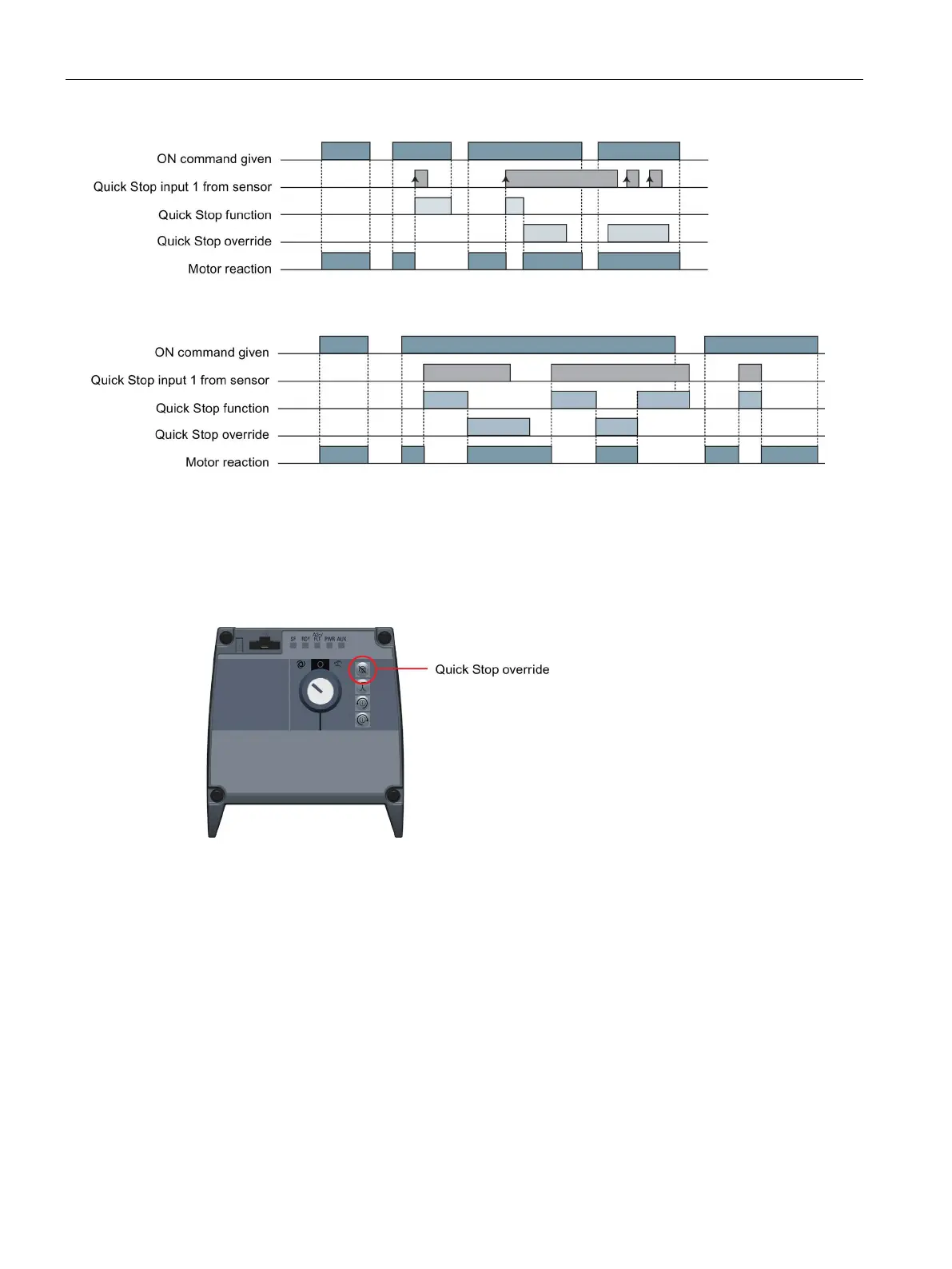

Image 6-19 Positive edge triggered signals reactions
Image 6-20 High level triggered signals reactions
The 'Quick Stop override' command is normally sent by the controlling system, but the local
keypad can also be used to initiate the 'Quick Stop override'. The keypad is switched into
local mode and by pressing the 'Quick Stop override' button, the motor will be started by the
Inverter. See figure below.
Image 6-21 Keypad Quick Stop override
