5.4.5 Electrical connection
Electrical connection with solenoid


6 6



6
/
/
/
/



/
/
/
/
6
6
6





Coil L1 Selects stage 1
Coil L2 Selects stage 2
Coil L3 Withdraws the locking when changing a gear stage
Coil L4 Selects the neutral position (option)

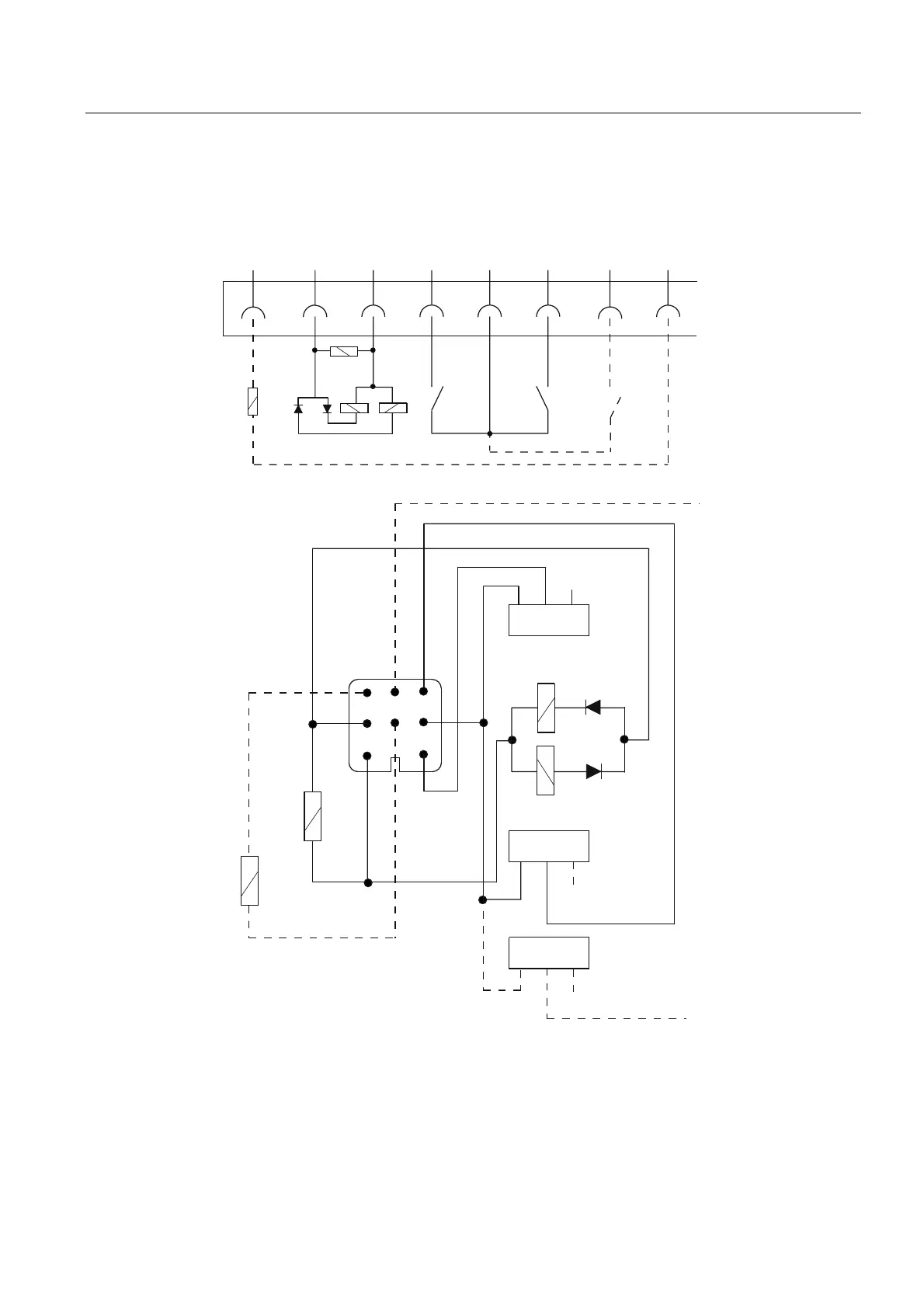

Figure 5-5 Circuit diagram for the solenoid
