Diagnosis
Diagnostics using STARTER
6-213
E Siemens AG, 2004. All rights reserved
SINAMICS S120 Installation and Start-Up Manual, 12/04 Edition
Parameterizing and using the measuring sockets
The parameterization and commissioning tool STARTER (see Section 3.2) will help
you parameterize and use the measuring sockets properly.

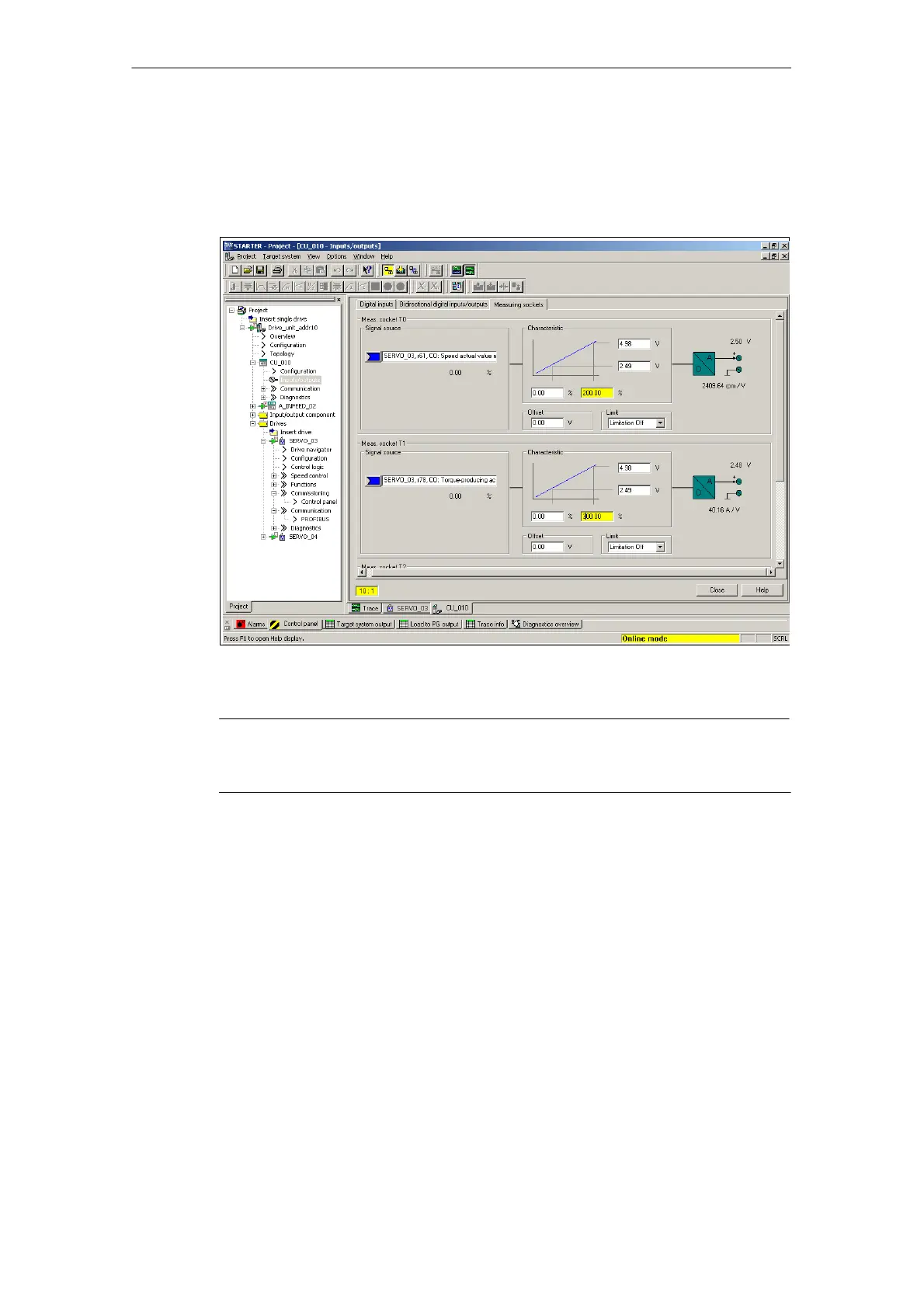

Fig. 6-11 “Measuring sockets” initial screen
Note
Please refer to the online help for more information about parameterizing and
using the measuring sockets.
Properties
S Resolution 8 bits
S Voltage range 0 V to +4.98 V
S Measuring cycle Depends on the measuring signal
(e.g. actual speed value in speed controller cycle, 125 µs)
S Short-circuit-proof
S Parameterizable scaling
S Adjustable offset
S Adjustable limitation
