7.3 Drive objects

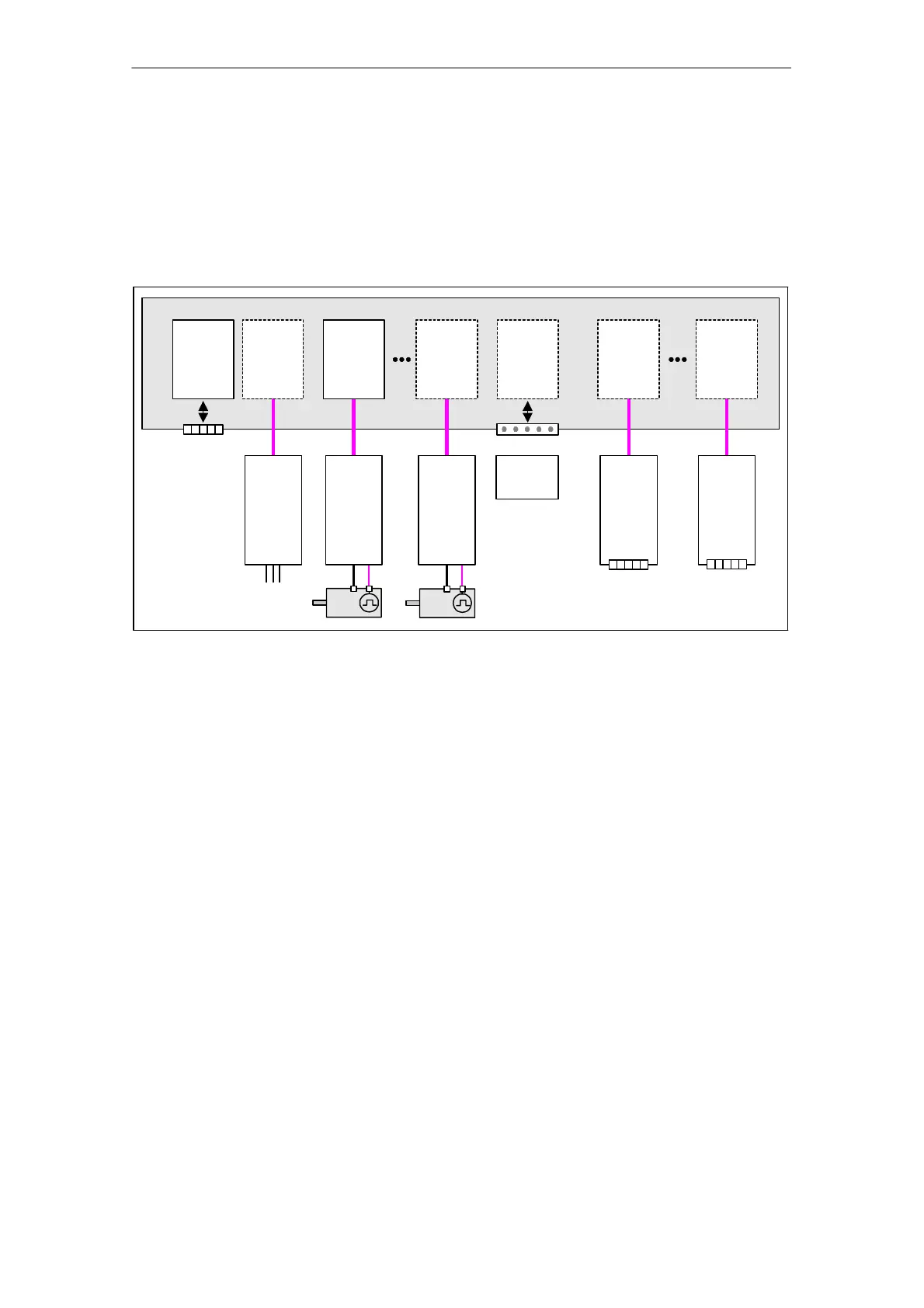

A drive object is a self-contained software function with its own parameters and, if
necessary, its own faults and alarms. Drive objects can be provided as standard
(e.g. I/O evaluation), or you can add single (e.g. option board) or multiple objects
(e.g. drive control).
drive_objects.vsd
Control Unit Drive objects
Eva–
luation
on-board
I/O
infeed
control
Drive
control
Drive
control
Eva-
luation
Option
board
Eva-
luation
Terminal
Module
Eva-
luation
Module
Line
Module
Motor
Module
Motor
Module
Module Module
Option
board
Terminal
Terminal
Terminal
Fig. 7-4 Drive objects
Drive objects installed by default
S Drive control
The drive control handles closed-loop control of the motor. 1 Motor Module and
at least 1 motor and up to 3 sensors are assigned to the drive control.
Various types of drive control can be configured (e.g. servo control, vector
control, etc.).
Several drive controls can be configured, depending on the performance of the
Control Unit and the demands made on the drive control system.
S Control Unit, inputs/outputs
The I/Os on the Control Unit are evaluated within a drive object. High-speed
inputs for probes are processed here in addition to bidirectional digital I/Os.
