Communication via PROFIBUS
General information about PROFIBUS
4-81
E Siemens AG, 2004. All rights reserved
SINAMICS S120 Installation and Start-Up Manual, 12/04 Edition
Configuration settings (e.g. HWConfig for SIMATIC S7)
The components are mapped to objects for configuration.
Due to the telegram structure shown in Fig. 4-2, the objects in the “DP slave prop-
erties” overview must be configured as follows:
S Active Line Module: Telegram 370
S Single Motor Module: Standard telegram 6
S Double Motor Module, drive 1: Standard telegram 6
S Double Motor Module, drive 2: Standard telegram 6
S Terminal Board: User defined

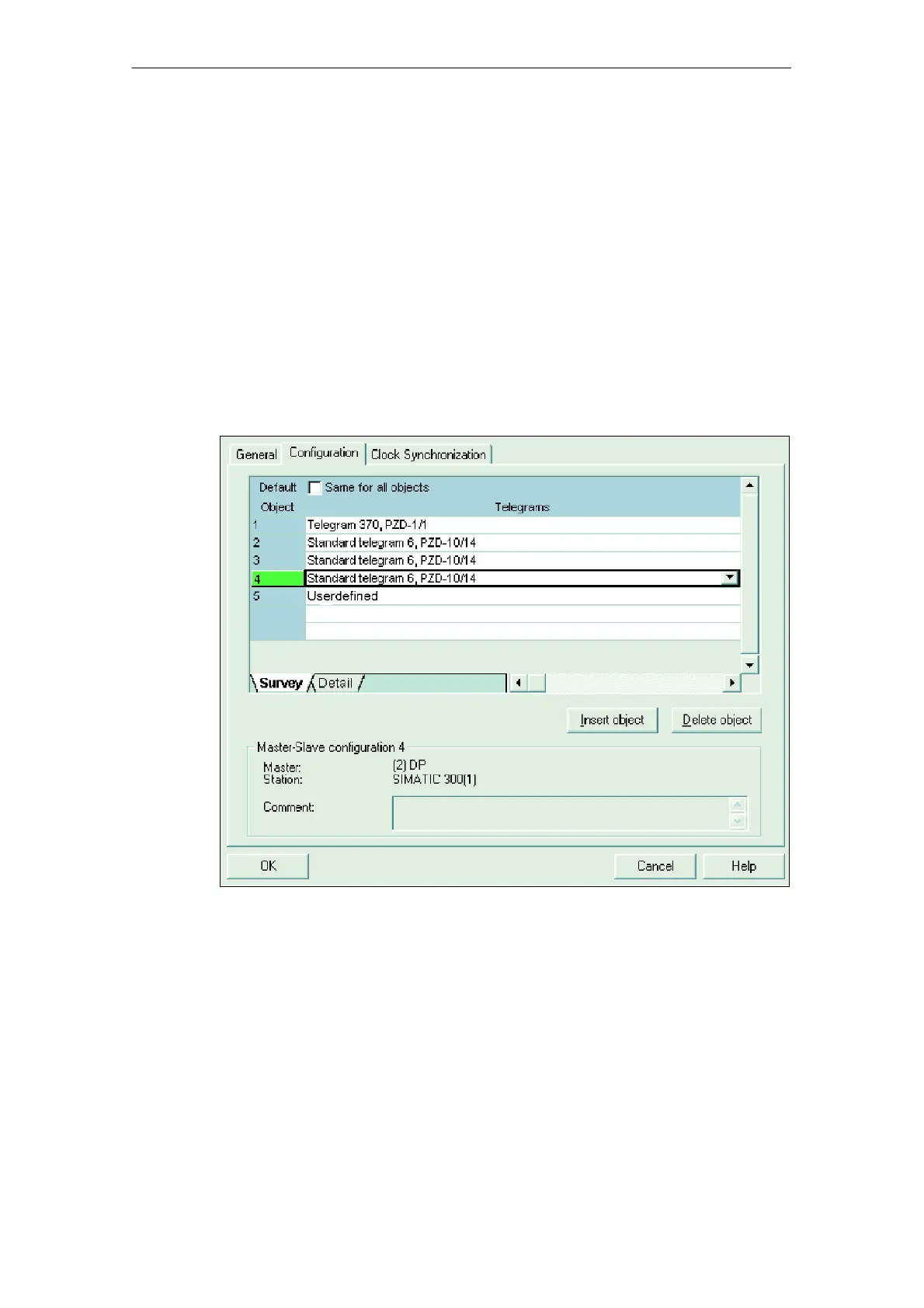

DP slave properties – overview
Fig. 4-3 Slave properties – overview
