5.9 Motor Connection
Guide for the SINUMERIK 840D sl machine configuring
5-64 Manual, 07/2006 Edition, 6FC5397-6CP10-0BA0
Power plugs on the motor with screw connection for Motor Modules ≤ 30 A
Only the connector itself must be ordered for power connectors on the motor in the "screw
connection" variant.

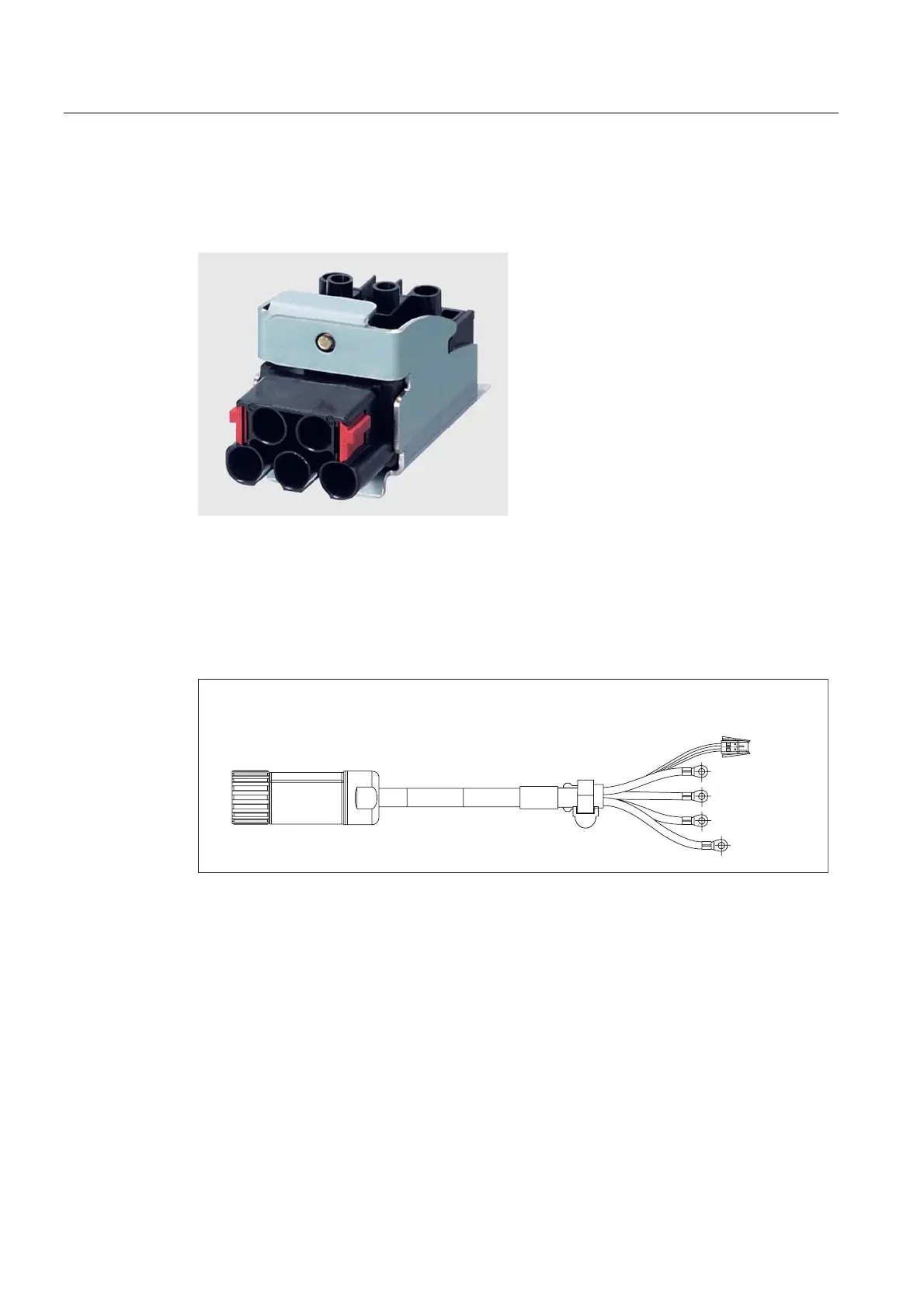

Figure 5-27 Power connector with screw connection
Direct connection for Motor Modules > 30 A
For Motor Modules > 30 A, the power cable is not connected using a power connector, but
with a ring terminal end. Only the motor brake is connected using a brake connection plug
supplied for preassembled cables.
0RWRUVLGHSRZHU
SOXJ
5LQJWHUPLQDOHQG
PRGXOHVLGH
Figure 5-28 Motor Module - motor connection for Motor Modules > 30 A

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
