Structure of the drive group
2.4 Shield Connection
Guide for the SINUMERIK 840D sl machine configuring
Manual, 07/2006 Edition, 6FC5397-6CP10-0BA0
2-17
2.4.2 SINAMICS Components Dimension Drawings (External Air Cooling)

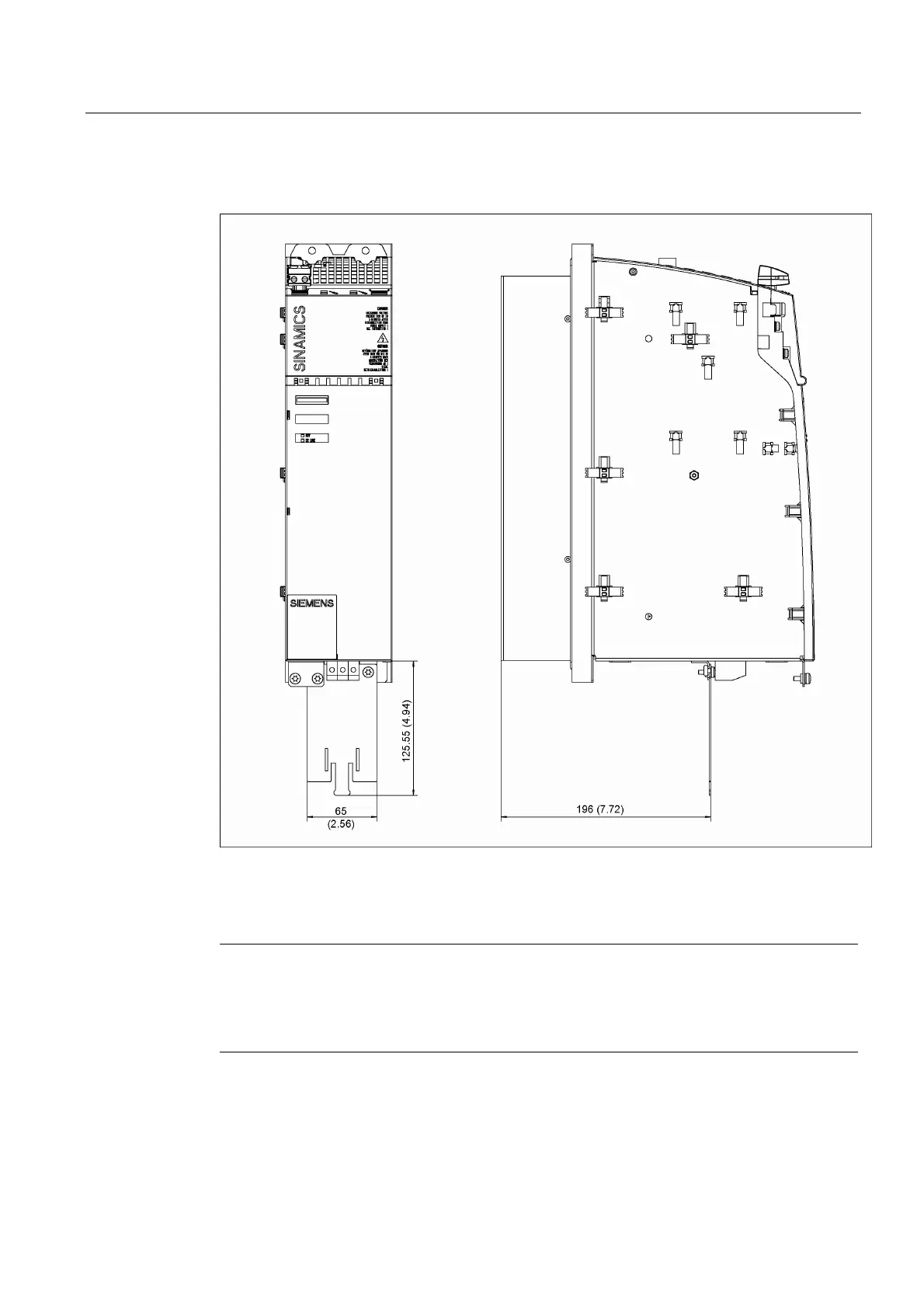

Figure 2-16 Dimension drawing of shield terminal plate on a 100 mm component (Line Module or
Motor Module) with external air cooling
Note
The shield connecting plate is part of the scope of supply of a 100 mm Line Module.
Recommended shield contacts: from Weidmüller, Order No. KLBÜ CO4
Weidmüller: http://www.weidmueller.com
