System overview
1.7 HMI User Interface Software
Guide for the SINUMERIK 840D sl machine configuring
Manual, 07/2006 Edition, 6FC5397-6CP10-0BA0
1-9
1.7 1.7 HMI User Interface Software
HMI (Human Machine Interface) is a software component used for operating and
programming machine tools. The HMI software is available in two variants:
● As the embedded variant (HMI-Embedded, ShopMill HMI, ShopTurn HMI) integrated in
the NCU software
● As HMI-Advanced; runs on PCU 50.3
Connection of embedded HMI
For the embedded HMI, the HMI software is used on the NCU 7x0. A thin client (TCU)
performs the NCU - operator panel communication.
NCU 7x0
2SHUDWRU
3DQHO
ZLWK7&8
;(WKHUQHW
;(WKHUQHW
;(WKHUQHW
6HUYLFH
;352),%86
;352),%86
;(WKHUQHW
SODQWQHWZRUN
,QGXVWULDO(WKHUQHWIDFWRU\QHWZRUN

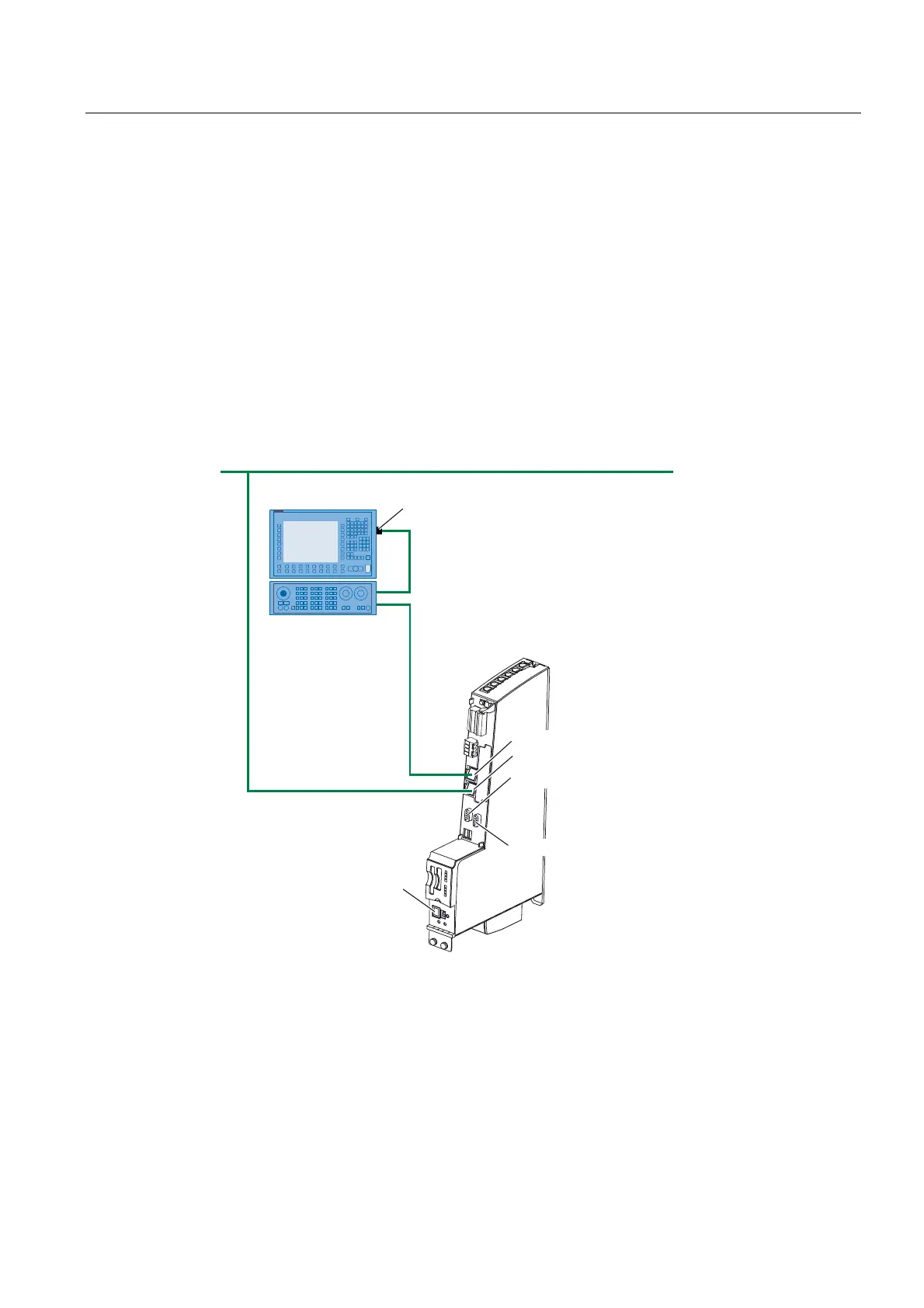

Figure 1-3 Connection of embedded HMI

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
