NCU/NX Terminal Assignment
3.5 X122 and X132 Interface Overview
Guide for the SINUMERIK 840D sl machine configuring
3-6 Manual, 07/2006 Edition, 6FC5397-6CP10-0BA0
Occurring operator errors
Operator errors that frequently occur when starting macros include:
● incorrect status of p9
● active release to the modules
Note
If you have doubts, load the factory settings prior to executing a macro.
3.5 3.5 X122 and X132 Interface Overview
X122 and X132 interfaces for NCU 7x0
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
X132X122
'LJLWDOLQSXWV
SLQV
'LJLWDOLQSXWVRXWSXWVSLQV
DQG

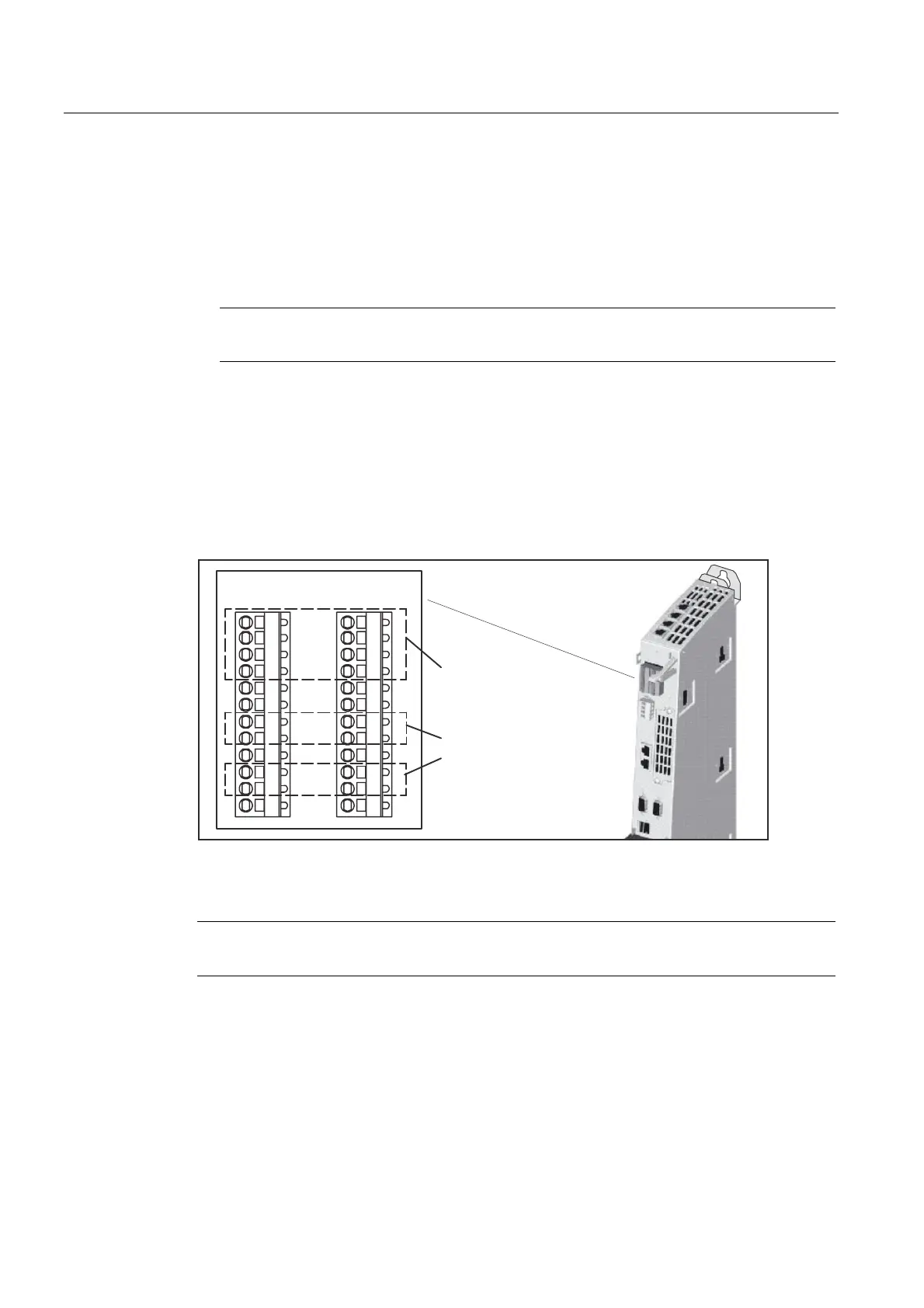

Figure 3-2 X122 and X132 interfaces for NCU 7x0
Note
The NX1x component has only the X122 interface.

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
