Connection of the Components
5.10 Sensor Systems Connection
Guide for the SINUMERIK 840D sl machine configuring
5-72 Manual, 07/2006 Edition, 6FC5397-6CP10-0BA0
5.10.3 X200-X203 DRIVE-CLiQ interface

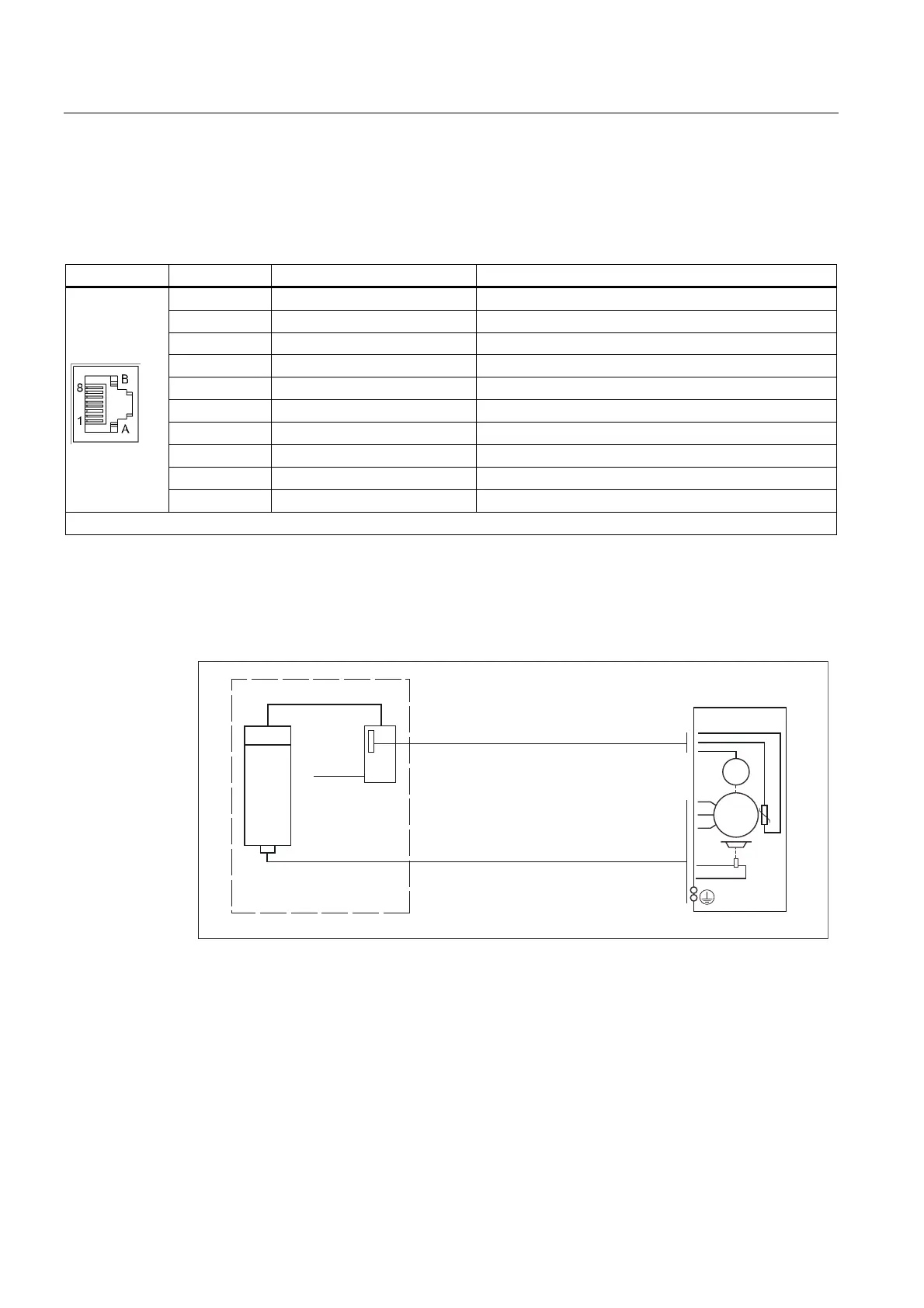

Table 5-29 DRIVE-CLiQ interface X200-X202: Single Motor Module
DRIVE-CLiQ interface X200-X203: Double Motor Module
Pin Name Technical specifications
1 TXP Transmit data +
2 TXN Transmit data -
3 RXP Receive data +
4 Reserved, do not use
5 Reserved, do not use
6 RXN Receive data -
7 Reserved, do not use
8 Reserved, do not use
A + (24 V) Power supply
B GND (0 V) Electronic ground
Blanking plate for DRIVE-CLiQ interface: Molex, order number: 85999-3255
5.10.4 Sensor Connections
0RWRU
0RGXOH
'5,9(&/L4
˽
0
a
(
0RWRU
9'&
60&
6HQVRUFDEOH
3RZHUVXSSO\DQGVHQVRUFDEOH
3RZHUFDEOH
&RQWUROFDELQHW
Figure 5-33 Sensor connection using Sensor Module Cabinet (SMC)
