Structure of the drive group
2.4 Shield Connection
Guide for the SINUMERIK 840D sl machine configuring
2-16 Manual, 07/2006 Edition, 6FC5397-6CP10-0BA0

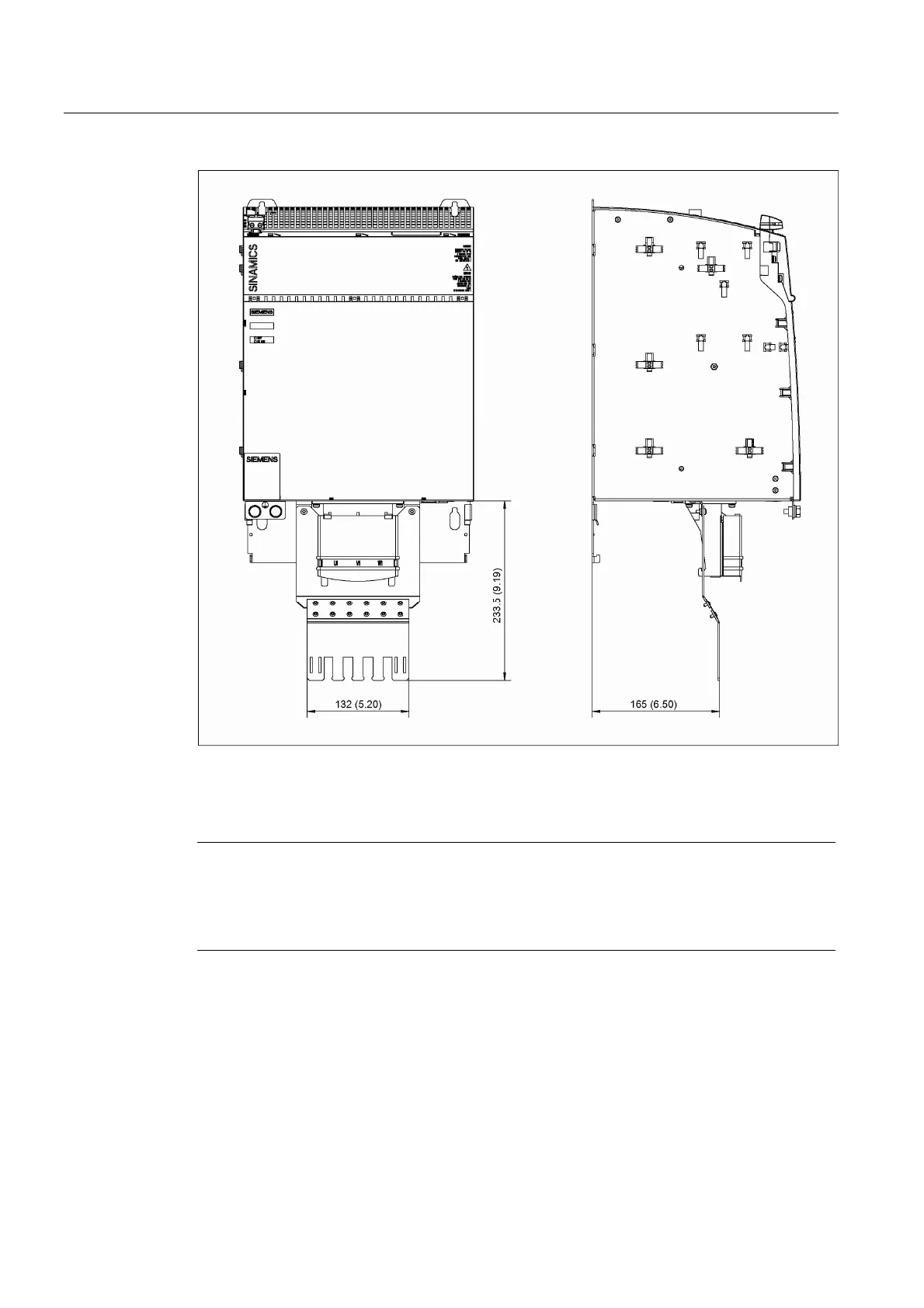

Figure 2-15 Dimension drawing of shield terminal plate on a 300 mm component (Line Module or
Motor Module) with internal air cooling
Note
A shield connecting plate can be ordered as option.
Recommended shield contacts: from Weidmüller, Order No. KLBÜ CO1
Weidmüller: http://www.weidmueller.com
