Siemens SINUMERIK 840D sl Manual

Structure of the drive group
2.4 Shield Connection
Guide for the SINUMERIK 840D sl machine configuring
2-18 Manual, 07/2006 Edition, 6FC5397-6CP10-0BA0

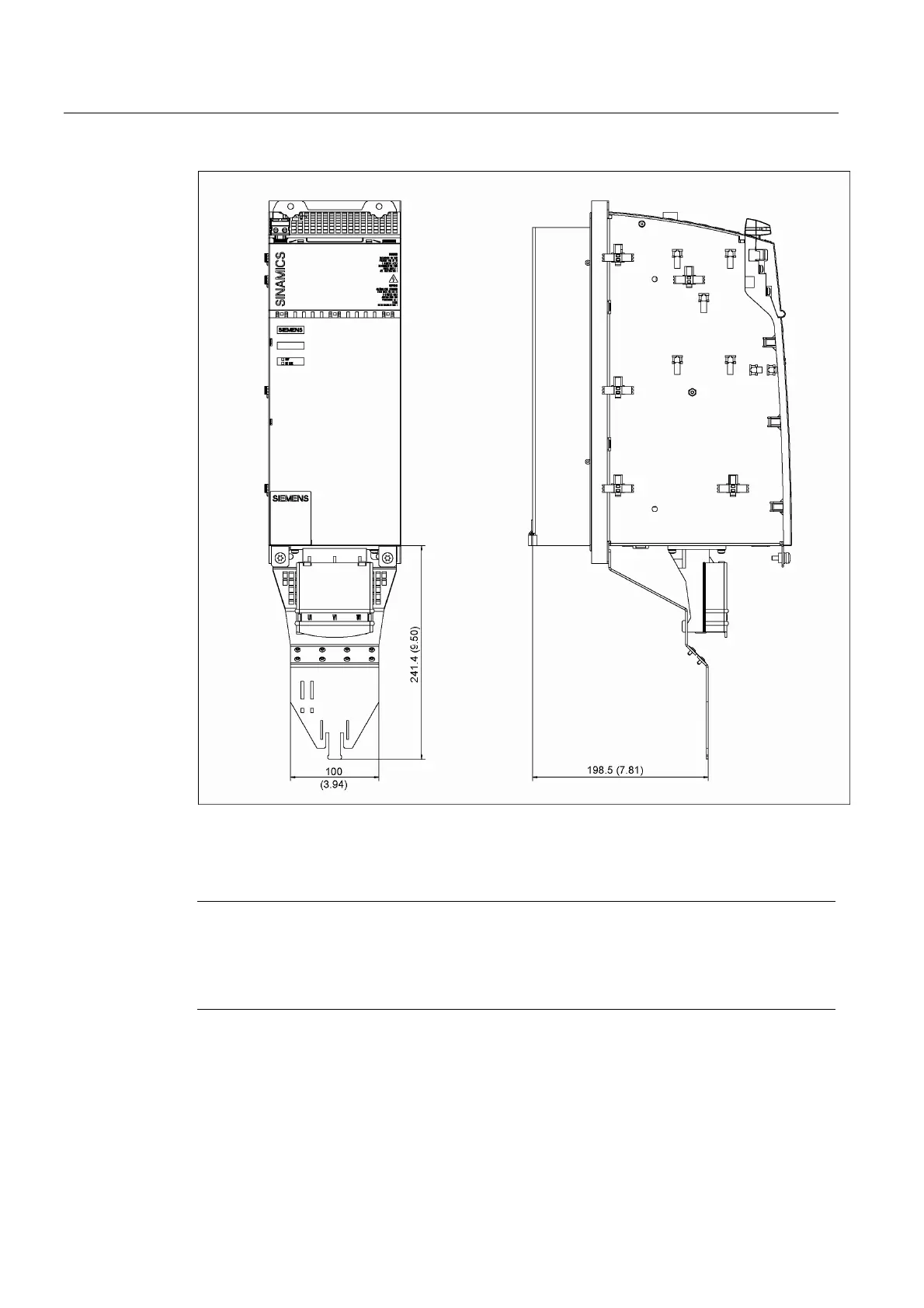

Figure 2-17 Dimension drawing of shield terminal plate on a 150 mm component (Line Module or
Motor Module) with external air cooling
Note
A shield connecting plate is available as option.
Recommended shield contacts: from Weidmüller, Order No. KLBÜ CO1 and KLBÜ CO4
Weidmüller: http://www.weidmueller.com

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
