Connection of the Components
5.13 Voltage Protection Module (VPM)
Guide for the SINUMERIK 840D sl machine configuring
5-84 Manual, 07/2006 Edition, 6FC5397-6CP10-0BA0
Signal contact X3
The X3 signal contact closes after t > 2 min or after resetting the temperature switch.
˽
RQ
ืr&
˽
RII
ุr&
!PLQ
˽

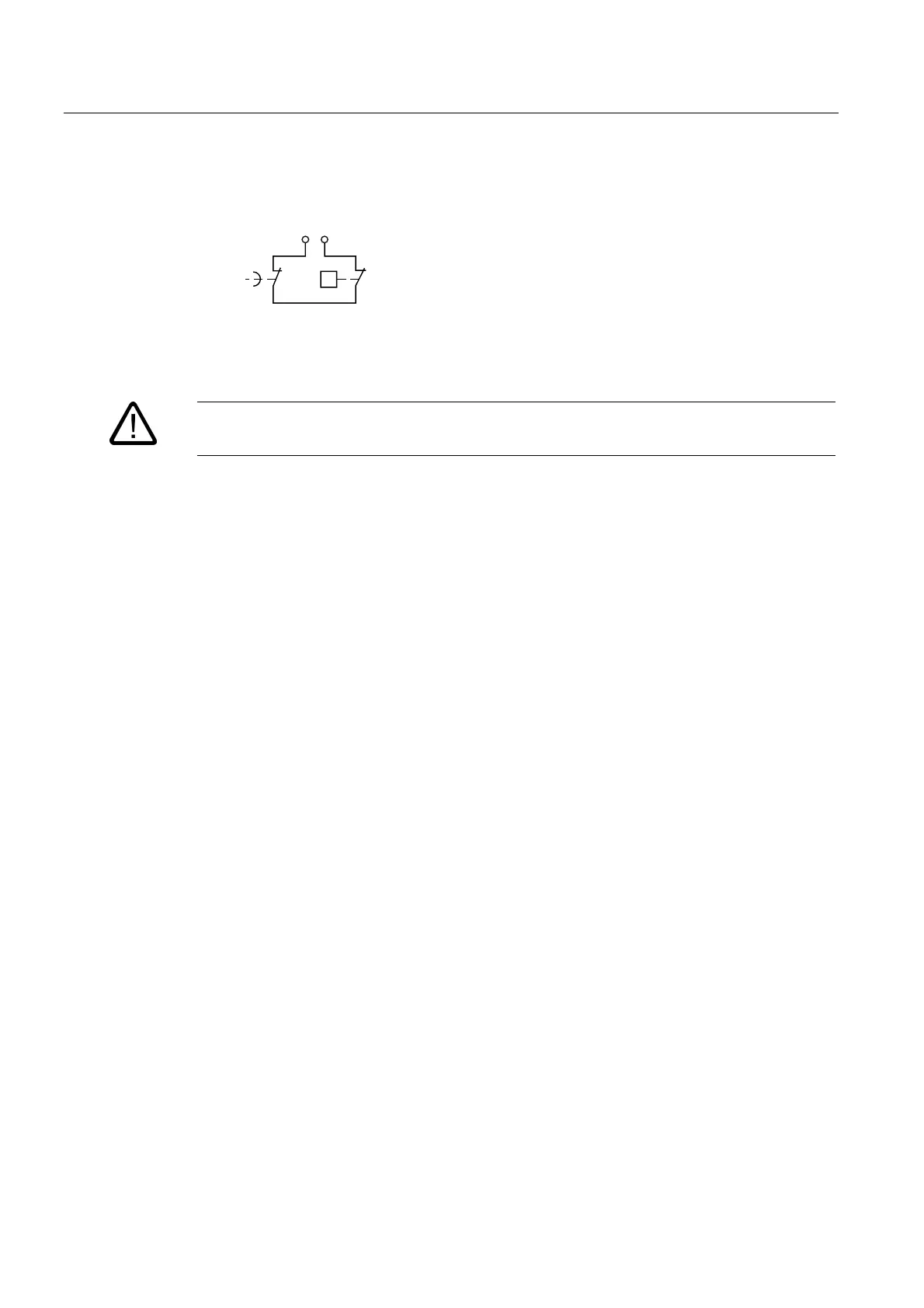

Figure 5-41 Signal contact X3 of the Voltage Protection Module
Warning
Measures must be adopted to prevent the drive from starting by itself!

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
