Siemens SINUMERIK 840D sl Manual

System overview
1.7 HMI User Interface Software
Guide for the SINUMERIK 840D sl machine configuring
Manual, 07/2006 Edition, 6FC5397-6CP10-0BA0
1-11
Switching between embedded HMI and HMI-Advanced
When an Ethernet switch is used, you can switch between embedded HMI (available on
NCU) and HMI-Advanced (available on PCU 50.3).
(WKHUQHW
6ZLWFK
1&8 3&8
2SHUDWRU
3DQHO
PLW7&8
2SHUDWRU
3DQHO
PLW7&8
2SHUDWRU
3DQHO
PLW7&8
2SHUDWRU
3DQHO
PLW7&8

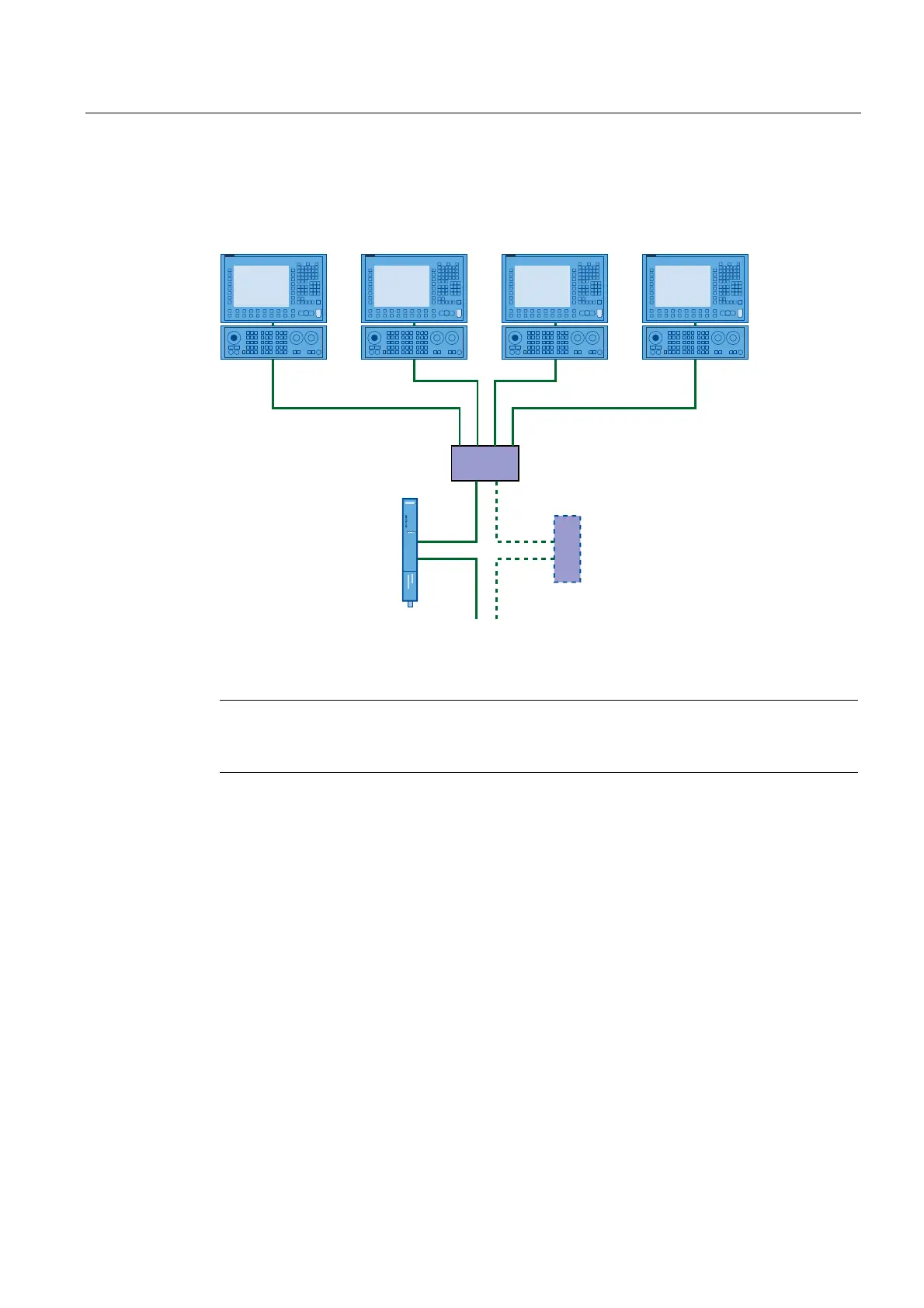

Figure 1-5 HMI-Advanced and embedded HMI on the Ethernet switch
Note
Detailed information about the operator panels, TCU and PCU 50.3 is contained in the "sl
Operator Components Device Manual" and in "CNC Commissioning, Part 2 (HMI)".

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
