8.2 Cooling Systems
Guide for the SINUMERIK 840D sl machine configuring
8-6 Manual, 07/2006 Edition, 6FC5397-6CP10-0BA0




&ROGSODWH
ZLWKLQWHUQDOOLTXLGFRROLQJ
LQSUHSDUDWLRQ
ZLWKOLTXLGKHDWVLQN
ZLWKDLUKHDWVLQN
&RROLQJW\SH
6,1$0,&66%RRNVL]HSRZHUXQLWZLWKFROGSODWH

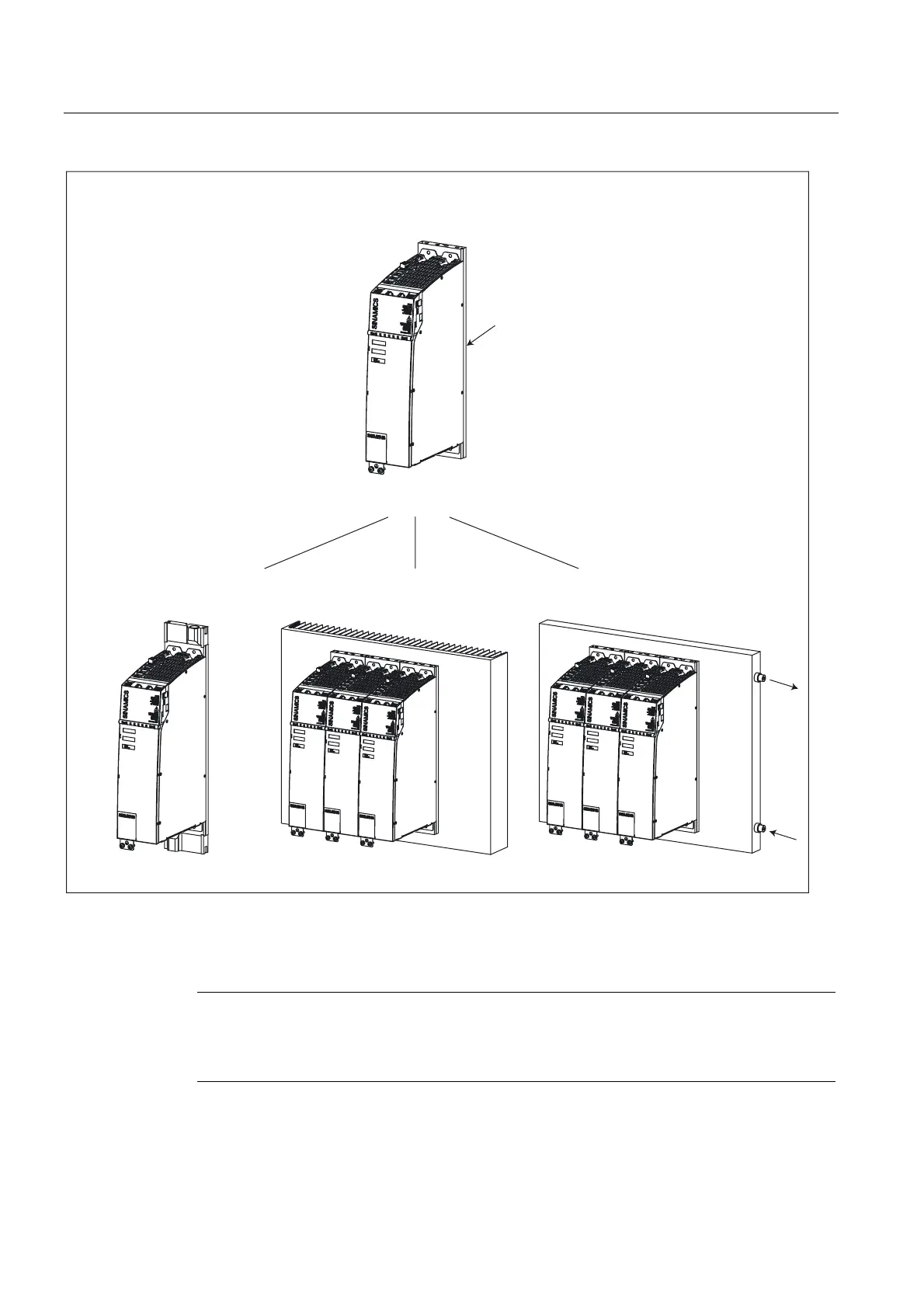

Figure 8-3 Cooling systems for cold plate
Note
The associated notes contained in the device manuals must be observed for the configuring
and the layout of the corresponding component. This ensures that devices in the control
cabinet are not damaged as a result of leaks, etc.

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
