Safety Integrated
4.2 SINUMERIK Safety Integrated
Guide for the SINUMERIK 840D sl machine configuring
Manual, 07/2006 Edition, 6FC5397-6CP10-0BA0
4-13
Meaning and use of the individual signals
Valve unit 1 F-DO terminal 1,2 (channel 0 P/M)
Signal state channel 0 = "0"
Valve in the locked neutral position
Signal state channel 0 = "1"
Valve in the flow position
Not assigned [F-DO terminal 5,6 (channel 1 P/M)]
Valve unit 2 [F-DO terminal 9,10 (channel 2 P/M)]
Signal state channel 2 = "0"
Valve in the locked neutral position
Signal state channel 2 = "1"
Valve in the flow position
Not assigned [F-DO terminal 13.14 (channel 3 P/M)]
Power module PM-E F
This module combines two functions. Not only can individual actuators (comparable with the
functionality of an F-DO module) be connected to all three two-channel output channels, but
the third DO2 output channel also has a further function.
The DO2 output channel is used to internally (no external wiring required) disconnect safety-
oriented (i.e. with two potentials) to supply power for the subsequent standard DO or also
standard DI modules. Namely, the outputs on the DO modules can not only be controlled
using a single channel in the PLC for the "normal" function, but also a safety-oriented
shutdown of the power supply for all DO modules following the PM-E F module is possible.
'23
'20
9DOYH
XQLW
3RVVLEO\SURFHVVIHHGEDFN
IRUIRUFHGG\QDPL]DWLRQIHG
WR3/&LQSXW
([WZLULQJIRUDGGLWLRQDO
DFWXDWRUVFRPSDUDEOHZLWK
'2SRVVLEOH

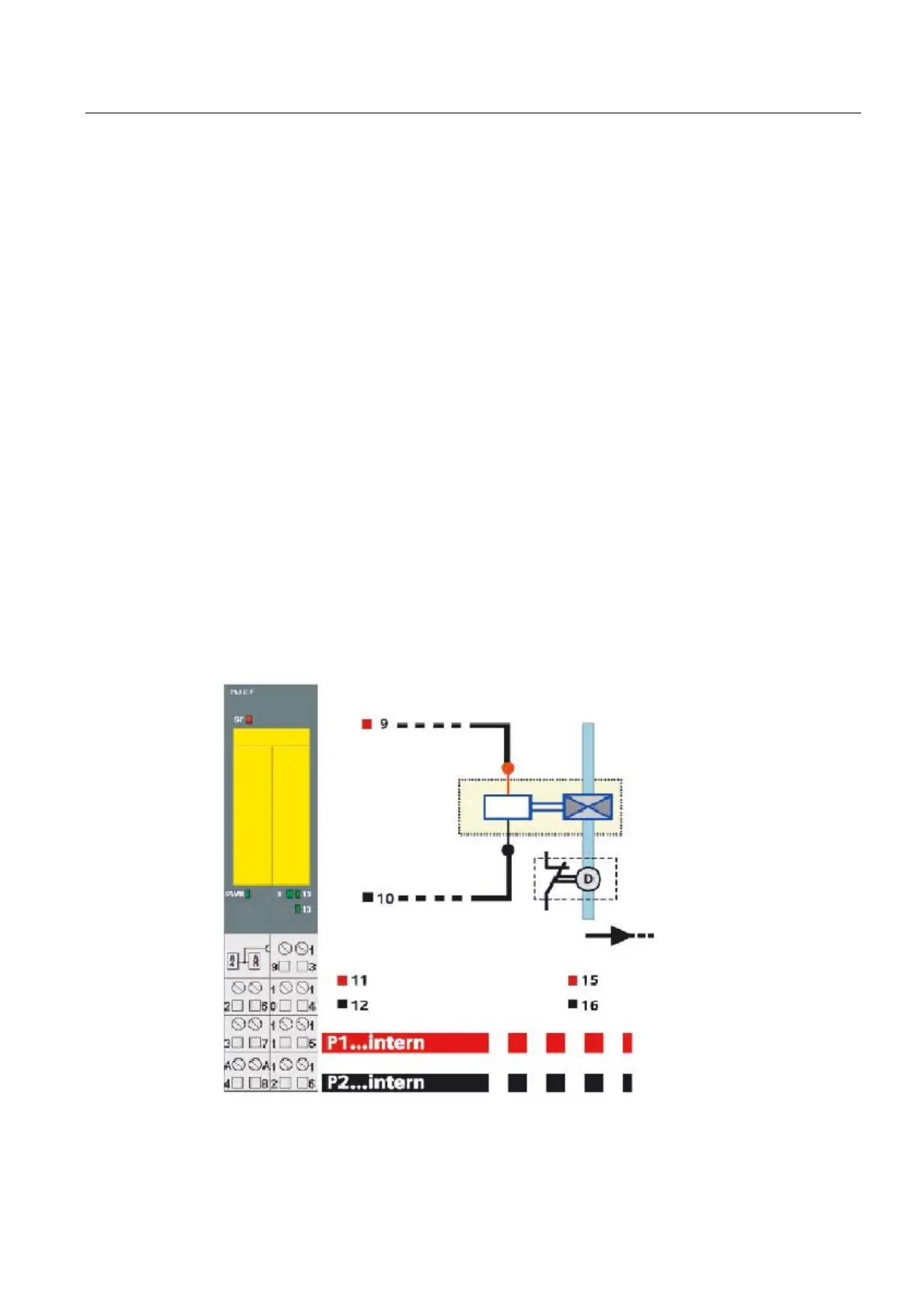

Figure 4-8 Signal assignment, power module PM-E F PROFIsafe 24 V DC
