Positional Data
3.5 Special turning functions
Fundamentals
Programming Manual, 11/2006, 6FC5398-1BP10-2BA0
91
3.5 Special turning functions

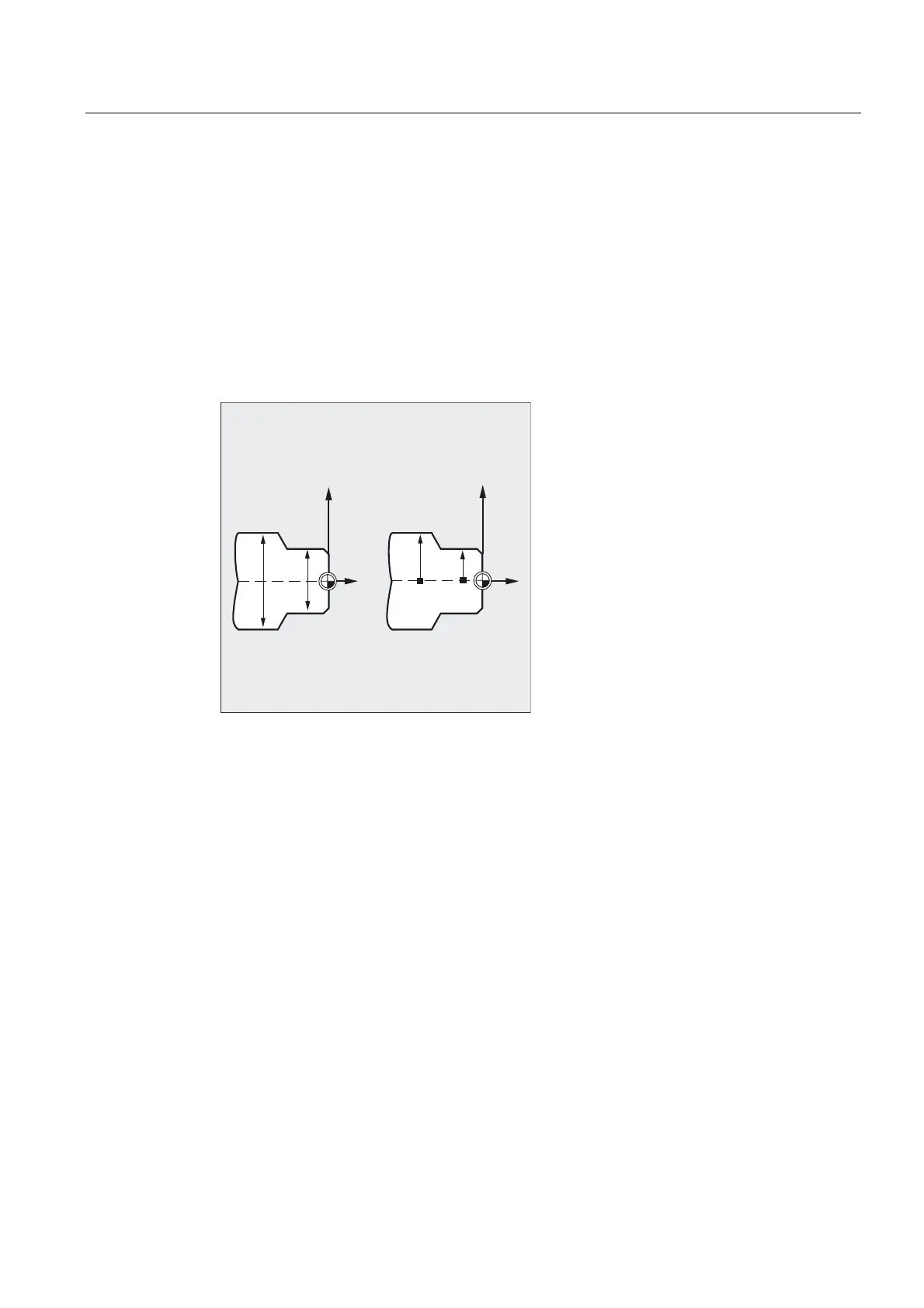

3.5.1 Dimensions for radius, diameter in the channel (DIAMON/OF, DIAM90)
Function
The free choice of diameter or radius dimensions allows you to program the dimensions
straight from the engineering drawing without conversion.
=
;
'
:
',$021
',$02)
'
=
;
5
5
:
After powerup of
• DIAMON, the dimensions for the specified transverse axis are given as a diameter value
independently of the type of travel (G90/G91).
• DIAM90, the dimensions are given as a diameter value (in the case of G90) or as a
radius value (in the case of G91) independently of the type of travel (G90/G91).
• DIAMON or DIAM90, the transverse-axis actual values will always be displayed as a
diameter. This also applies to reading of actual values in the workpiece coordinate
system with MEAS, MEAW, $P_EP[x] and $AA_IW[x].
Machine manufacturer
By means of machine data which is configurable by the machine manufacturer, geometry
axes can be enabled as transverse axes for channel-specific diameter programming.
