Configuration
5-157SA522 Manual
C53000-G1176-C119-2
Output Indication
(OUT)

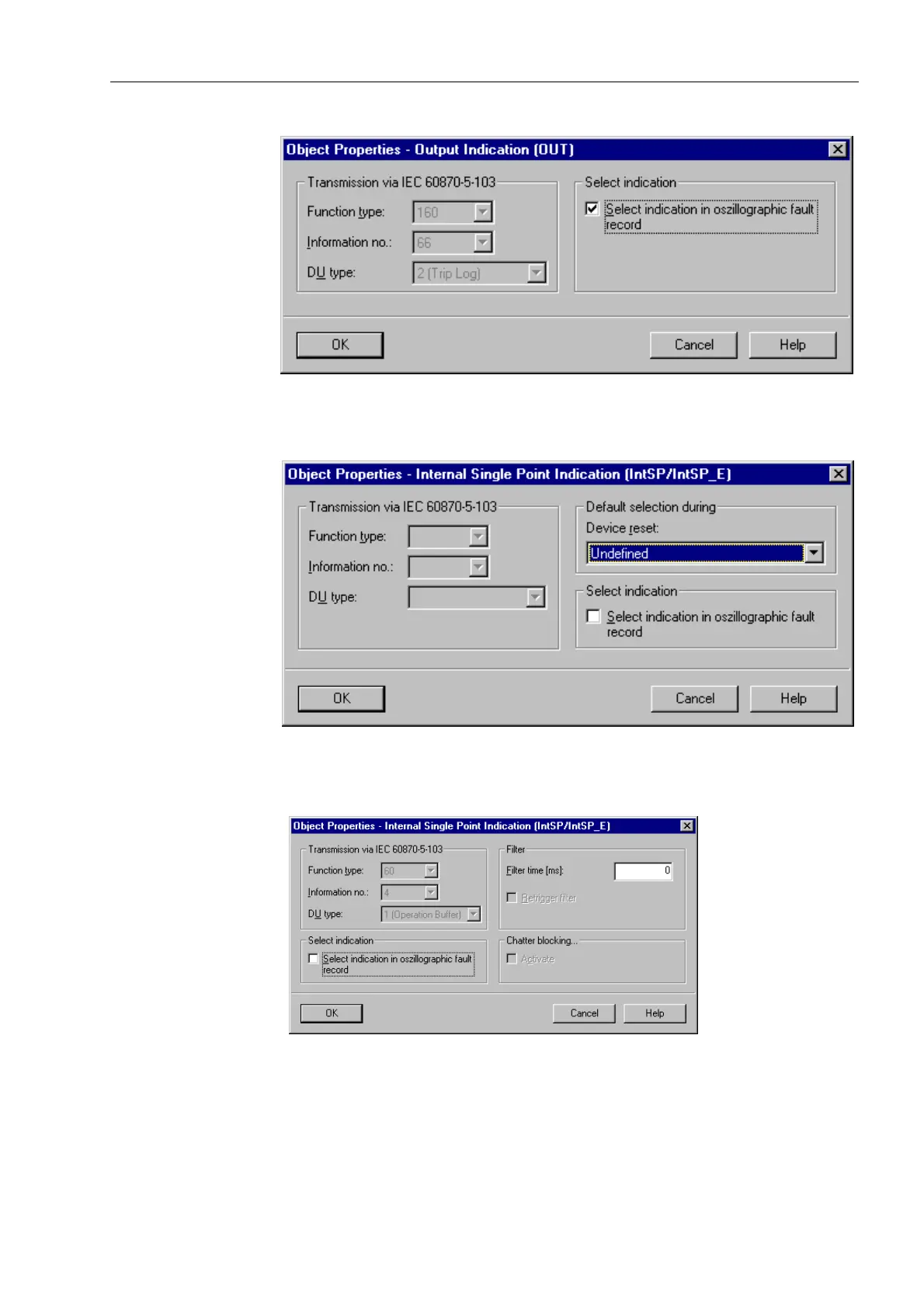

Figure 5-10 Information properties — example for the information type “Output Indication”
(OUT)
Internal Single
Point Indication
(IntSP)
Figure 5-11 Information properties — example for the information type “Internal Single Point
Indication” (IntSP)
Singe Point Indica-
tion (SP)
Figure 5-12 Information properties — example for information type “Single Point Indication”
(SP)
Double Point Indi-
cation (DP)
In addition to the properties entered for single point indications, a “Suppress interme-
diate position” check box is available, which may be checked to suppress the interme-
diate indication during operations. If this field is marked, then the filter time, which can
