Configuration
5-20 7SA522 Manual
C53000-G1176-C119-2
Information may be entered into the new information group using the information cat-
alog (Figure 5-19). The information catalog is found in the menu bar under the 9LHZ
option, or via an icon in the toolbar. User information may be entered into both the user
defined groups and any other available information group.

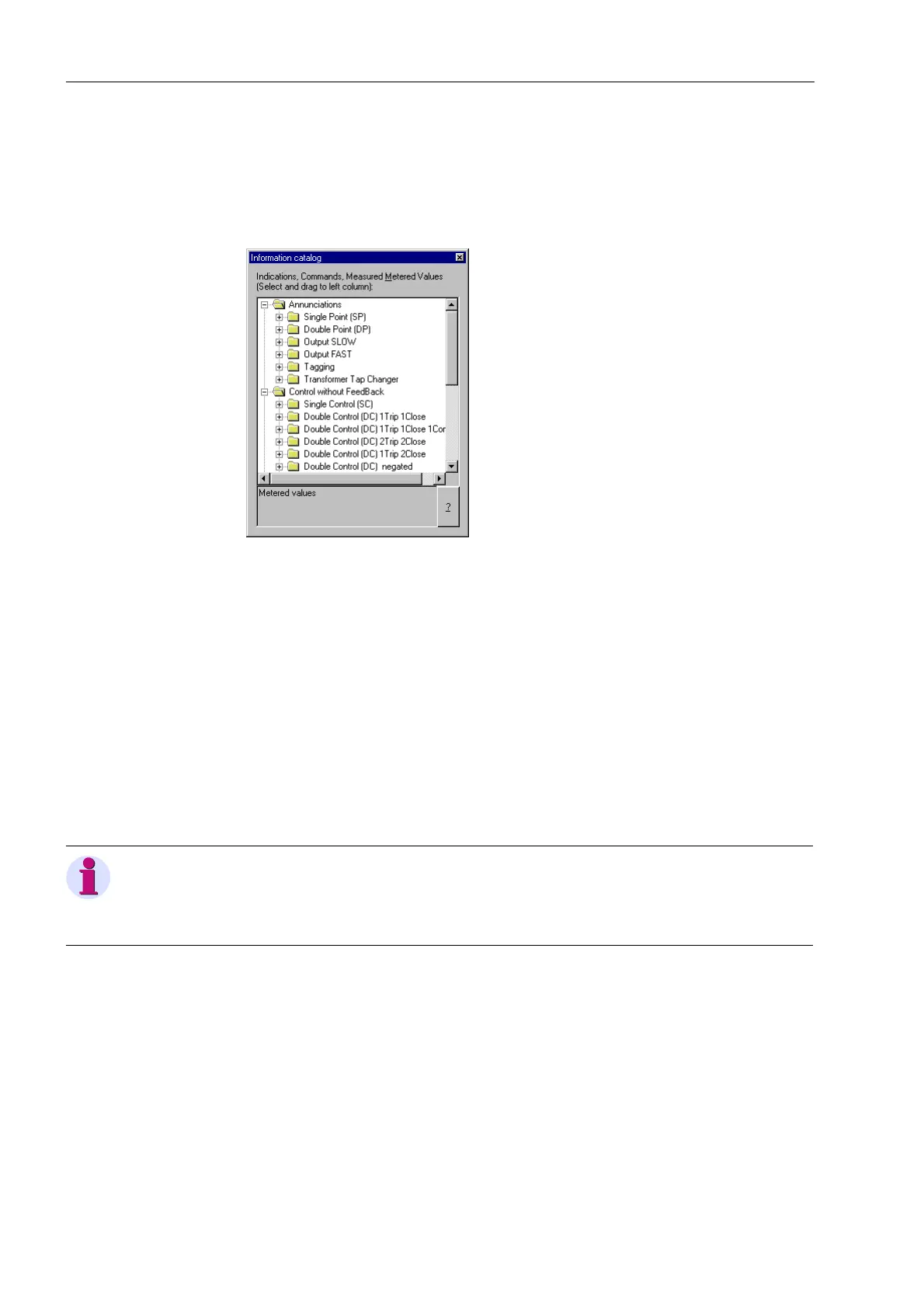

Figure 5-19 Information catalog window
The information catalog is basically structured the same way as the DIGSI
®
4 Manag-
er with folders and sub-folders. To proceed to information of sub-folders in the catalog,
click on a plus symbol or double-click on an folder icon. The designation of the initial
levels of the catalog correspond to the information groups $QQXQFLDWLRQV, &RP
PDQGV, 0HDVXUHG9DOXHV and &RXQWHU9DOXHV.
To insert a specific information unit into an information group, first select it in the cat-
alog, and using the left mouse button, it should then be dragged from the information
catalog window to a group area on the left of the matrix. After the mouse button is re-
leased, the new information unit is inserted into the proper group.
In order to change the user defined information, double-click on the field containing
the new information and edit the text.
Deleting Groups
and Information
Only user defined groups and information can be deleted. To delete an entire group,
click on the field containing the group designator, then press the
right
mouse button to
open the context menu, and select 'HOHWH*URXS. A confirmation window will ap-
pear (Figure 5-20).
Note:
When inserting information of the type &RQWUROZLWK)HHG%DFN,
two
new rows will
be created within the group: one line for the actual command, and one for the associ-
ated feedback message.
