Functions
6-697SA522 Manual
C53000-G1176-C119-2

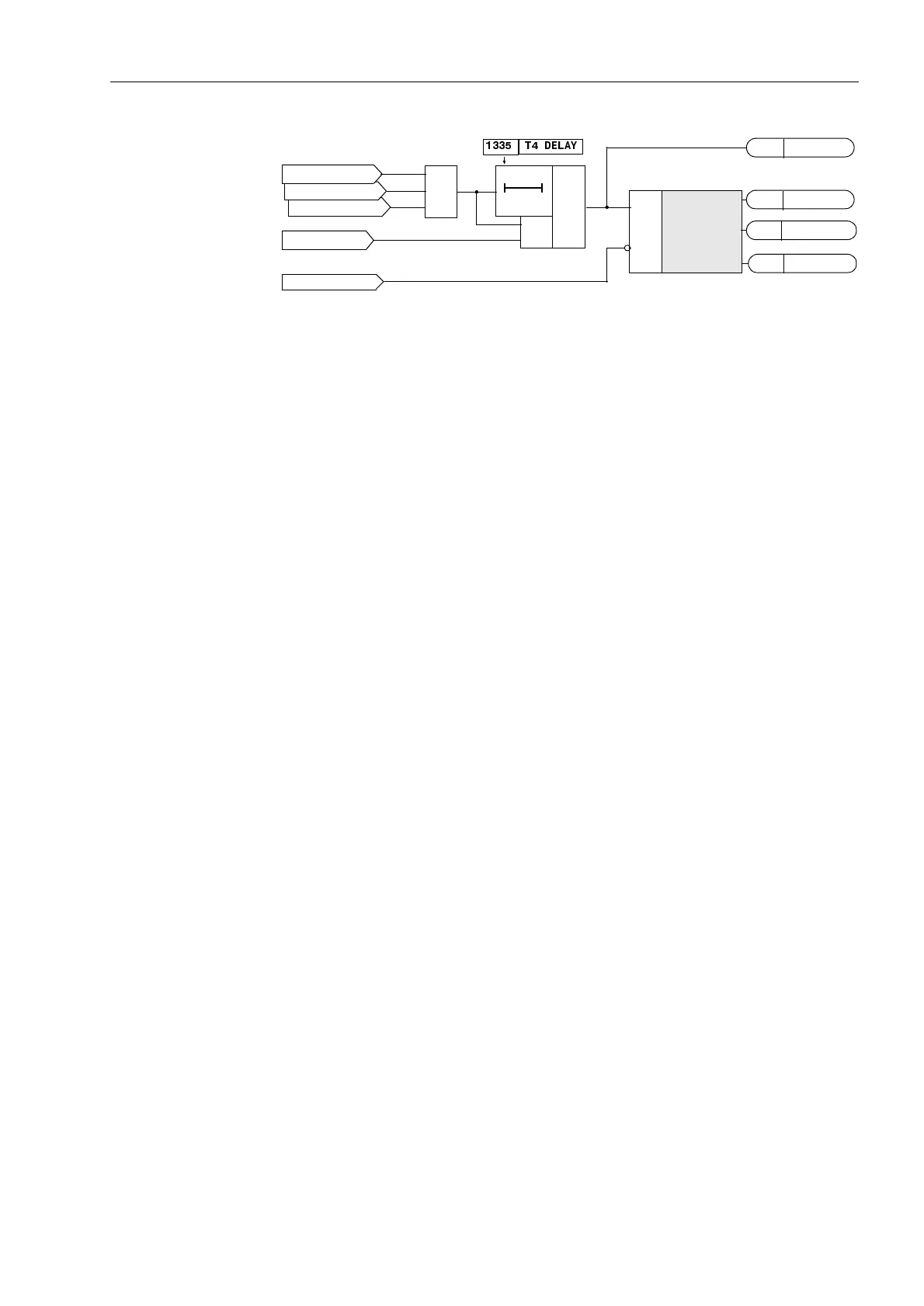

Figure 6-38 Tripping logic for the 4th and 5th Zone, shown is zone Z4
Zone Logic
of the Controlled
Zone Z1B
The controlled zone Z1B is usually applied as an overreaching zone. The logic is
shown in Figure 6-39. It may be activated via various internal and external functions.
The binary inputs for external activation are “!(1$%/(=%” and “!(QDEOH$5
]RQHV”. The former can for example be from an external teleprotection device, and
only affects Z1B of the distance protection. The latter affects all protection functions
that include an rapid autoclosure stage; it may for example be derived from an external
automatic reclose device. In addition, it is possible to use the zone Z1B as a rapid
autoclosure stage that only operates for single-pole faults, if for example only single-
pole automatic reclose cycles are executed.
It is possible for the 7SA522 to trip single-pole during two-phase faults without earth-
connection in the overreaching zone when single-pole automatic reclosure is used.
As the device has an integrated teleprotection function (refer to Section 6.4), release
signals from this function may activate the zone Z1B, provided that the internal tele-
protection signal transmission function has been configured to one of the available
techniques with parameter 7HOHSURW'LVWi.o.w. the function has not
been set to 'LVDEOHG
Dis FD Z4 L3
Dis FD Z4 L2
Dis FD Z4 L1
≥1
T0
≥1
&
Tripping logic
of the distance
protection
&
Dis bl Z4 trip
Z4 undelayed
(refer Fig. 6-24)
3801 Dis G–trip
3778 Dis T4 exp.
3805 Dis
trip
L123
3821 Dis trip Z4
7'(/$<
