Initial Inspections
3-10 7SA522 Manual
C53000-G1176-C119-2

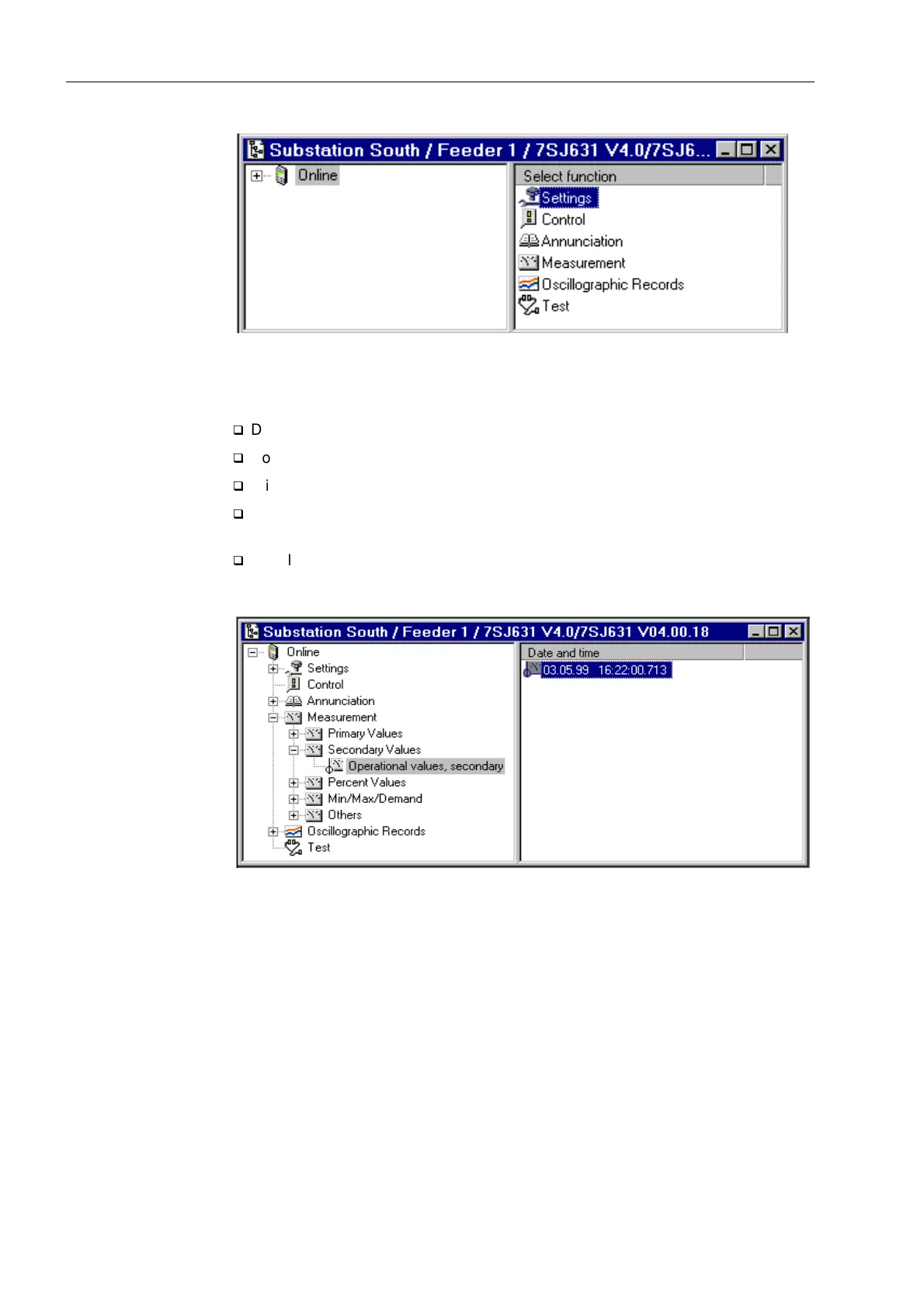

Figure 3-7 DIGSI
®
4 — online initial screen — example
Viewing Measured
Values
As an example the procedure for viewing the measured values is described.
q Double click on 0HDVXUHPHQW in the navigation window (left).
q Double click on the subdirectory 6HFRQGDU\9DOXHV in the navigation window.
q Click on 2SHUDWLRQDOYDOXHVVHFRQGDU\.
q The present date and time are shown in the data window (right), as illustrated in Fig-
ure 3-8.
q Double click on this entry in the data window.
Figure 3-8 DIGSI
®
4 — Viewing the secondary operating measured values — example
A table of the secondary operating measured values appears, as shown in Figure 3-9.
Since no measured AC currents or voltages are present at this time, all operating
measured values are close to zero. Deviations of the last digit are insignificant. The
measured values are automatically updated.
In the same manner, other measured and counter values can be read out.
